WINSAFE Video Conference Group

HD 1080P Video quality at 30/fps

Full-duplex speakerphone

Compatible with Mac & PC

HD 1080P Video quality at 30/fps
Brings life-like full HD video to conference calls, enabling expressions, non-verbal cues and movements to be seen clearly.

Support H.264/YUV/MJPG video compression

51.3° Field of view with mechanical

350° Pan and 90° Tilt
The generously wide field of view and silky smooth pan and tilt controls enhance collaboration by making it easy to see everyone in the room

10X Optical Zoom
Zero in on close-ups of objects and whiteboard connect with outstanding detail and clarity

Autofocus
High-precision lens automatically focuses on people and objects to deliver razor-sharp resolution wherever the lens is pointed.

Far-end camera control
Controlled PTZ by IR remote controller or arrow keys on the microphone

9 Presets can be setting

Plug-and-play camera setup

Full-duplex speakerphone
Full-duplex speakerphone with DSP, everyone can hear and be heard in sound that's crisp, and clear and highly intelligible.

Spacious audio
Participants can converse with a 6m/20-ft(Expansion mics support 10m/33-ft) diameter around the speakerphone and be heard so clearly by remote participants that it seems like conversations are happening in the same room.

Beam-forming technology with four built-in omni-directional mics
Conversations sound realistic and natural by minimizing sound reflections(reverb) and distracting audio artifacts.

Acoustic echo cancelation
Advanced acoustic engineering reduces echo, making calls sound more natural.

Noise reduction technology
Ambient noises and other distracting tones are suppressed to support comfortable, natural-sounding conversation on both ends of the call.

High bandwidth HD audio

Plug-and-play speakerphone setup

Compatible with Mac & PC
Simply connect a PC or Mac to conduct meetings within the user's own familiar computing environment. Compatible with Mac and PC. System requirements: Windows 7,8.1 or 10, Mac OS X 10.7 or higher, Andriod, Linux.

Works with most UC and Video Conferencing application
Users are free to use the desktop video conferencing program of their choice. Works with most UC, video conferencing and cloud communication apps

Broad application coompatibility
compatible with most common IM and conferencing Apps software, such as Zoom, Polycam, Microsoft Lync, CISCO WebEx, WeChat, Skype, Vidyo, and skype for business.

Bluetooth wireless technology
Connect the speakerphone to Bluetooth wireless technology enabled device for great-sounding audio calls by simply bringing them clse together.

Multiple camera mounting options and device setup configurations

PTZ - Pan, Tilt and Zoom - Software APP

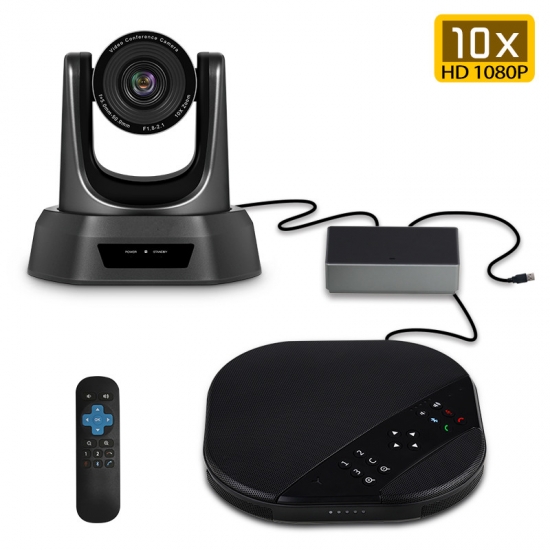

WINSAFE Conference Units
The amazingly affordable video conferencing system for medium to large-size meeting rooms, allows any meeting place to be a video colabaration space.

Optional expansion mics
Expand the conversation area from 6m/20ft to 10m/33 ft so that even those away from the speakerphone can be clearly heard. Microphones, sold in paris, are automatically recognized and configured by simply plugging them into the speakerphone.

Handheld remote controller
Operate camera pan, tilt and zoom, volume up/down and answer/hang-up functions on the base speakerphone console or with remote control.

CAMERA

SPEAKERPHONE

HUB / CABLE

* Smooth motorized pan, tilt and zoom, controller from remote or console
* 350° pan, 90° tilt
* 10x optical zoom
* 51.3° field of veiw
* Full HD 1080p 30fps
* H.264/YUV/MJPG video compression
* Autofocus
* 9 camera presets
* Far-end control(PTZ) of conferenceCam
* 1/3 inch HD Color CMOS
* 2.1 Megapixel
* 2D & 3D DNR
* IR Remote Controller
* f = 5.0mm - 50.0mm F1.8(W) - 2.1(T)
* 10m/33 ft range

* Full-duplex performance
* Acoustic echo cancellation
* Noise reduction technology
* Ultra-wideband audio
* Bluetooth wireless technology
* Touch controls for call answer/end, volume and mute, bluetooth wireless enabled - plus camer PTZ, "home" preset and far-end control microphones
* 4 omni-directional microphones supporting 6m diameter range
* Expansion microphones support 10m diameter range
* Frequency response: 120Hz - 22KHz
* Acoustic Echo cancellation(AEC)>65dB
* Echo length cancellation>400ms
* Bidirectional noise compression<25dB

Speakers
* Frequency response: 100Hz - 22KHz
* Max output: 95dBSPL
* Distortion: <5% from 200Hz

* Central mountable hub for connection of all components
* Included adhesive solution for under-table mounting
* Two cables for connection between hub and camera/speakerphone(Length: 5m/16 ft)
* One USB cable for connection to PC/ac(Length:3m/9.9ft)
* AC power adapter(Length: 3m/9.9ft)
* Dual purpose mount for wall placement or for elevating the camera on a table

COMPLIANCE AND TOOLS
* USB 2.0 compliant
* UVC-compliant video and audio for broad application compatibility

System Requirements

Units Packing

Dimensions

* Windwos 7,8.1 or 10, Mac OS X 10.7 or higher, Andriod, Linux.

Note: For full HD support, please check with your software application provider for system reuirements.

1. Speakerphone
2. HD PTZ Camera
3. Hub
4. Remote Controller
5. 5m DIN6 Cable x 2pcs
6. 3m USB cable x 1pcs
7. Power supply

Camera:
151mm x 131mm x 154mm(L x W x H)

Speakerphone:
200mm x 200mm x 52mm(L x W x H)

Hub:
100mm x 62mm x 27mm (L x W x H)

Units:
430mm x 260mm x 170mm
Weight: 3KG
