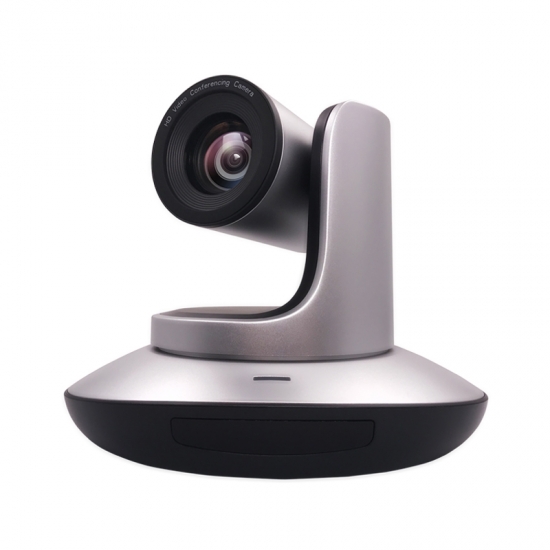

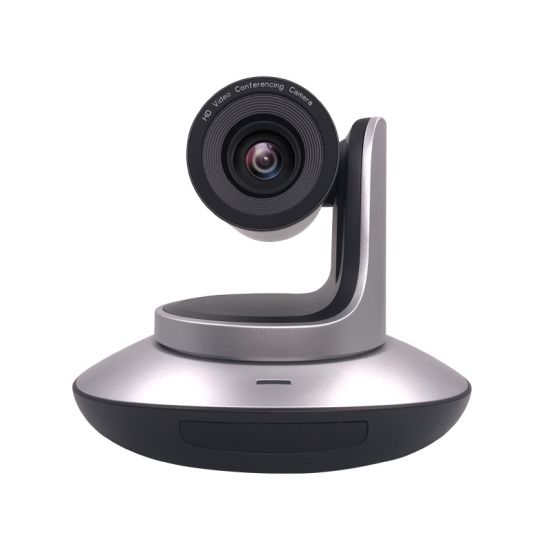

New USB3.0 12X HD PTZ Video Conference Camera

※ Ultra crystal video quality: with Ambarella A9 DSP 1/2.3 12MP Sensor and high quality 12x lens
※ Fast switching between different video formats: only 3 senconds needed
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ USB2.0 compatible
※ Daisy Chain function: with both Visca in and Visca out port
※ Compatible with the majority of video conferencing software (UVC 1.5 protocol standard)
※ With powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time
  • item no.:

    UHV-12X-U3
  • Description
  • Information

Advantages



※ Ultra crystal video quality: with Ambarella A9 DSP 1/2.3 12MP Sensor and high quality 12x lens
※ Fast switching between different video formats: only 3 senconds needed
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ USB2.0 compatible
※ Daisy Chain function: with both Visca in and Visca out port
※ Compatible with the majority of video conferencing software (UVC 1.5 protocol standard)
※ With powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time



Features



※ USB 3.0 & DVI-I(HDMI) simultaneously output
※ Zoom: 12X optical Zoom
※ 1920x1080p 60fps high resolution
※ 72.5° field of view
※ Ultra smooth PTZ mechanism
※ Accurate PT motro control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ Exposure Compensation, 3D-noise reduction function
※ Image flip function support upside-down installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls



Specification



Model No.

UHV-12X-U3

Sensor

1/2.3 inch high quality, 12MP HD CMOS Sensor

Video System

DVI-I(HDMI) port

USB 3.0 port

USB 2.0 port

1080p59.94/50/29.97/25
720p59.94/50/29.97/25
1080i59.94/50

1080p59.94/50/29.97/25
1080p59.94/50/29.97/25
1600*900@60
1400*900@60
1366*768@60
1280*800@60
1024*768@60
800*600@60/30
640*480@60/30

720p25
800*600@30
640*480@60
640*480@30

Zoom

12x optical zoom

View Angle

6.3°(wide)  - 72.5°(tele)

Pan Rotation Angle

- 170° - +170°

Tilt Roation Angle

- 30°  - + 90°

Pan Rotation Speed

  - 120° /s

Tilt Rotation Speed

  -  80° /s

Preset

128

Control Port

RS232/RS485/USB3.0

Video Port

DVI-I(HDMI)/USB 3.0

SNR

More than 50dB

Focal Length

f=3.92(wide) - 47.32mm(tele)

Minimum Lux

0.01Lux

White Balance

Auto/Manual

Focus

Auto/Manual

Iris

Auto/Manual

Electronic Shutter

Auto/Manual

BLC

Auto/Manual

Input Voltage

DC12V

Dimension(W x H x W)

220mm x 173mm x 117mm

Net Weight

1.25KG(2.8LBS)
