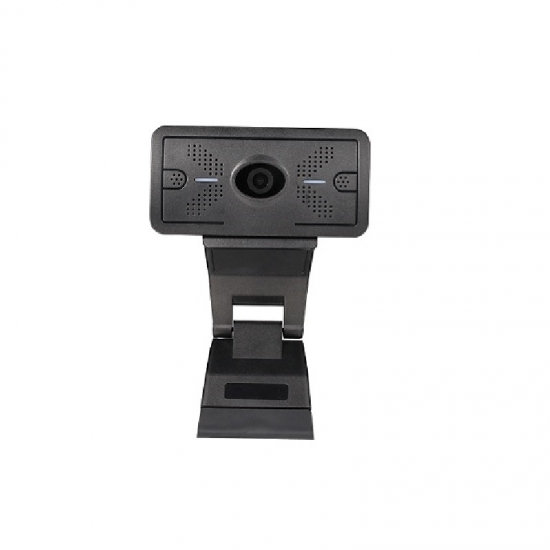

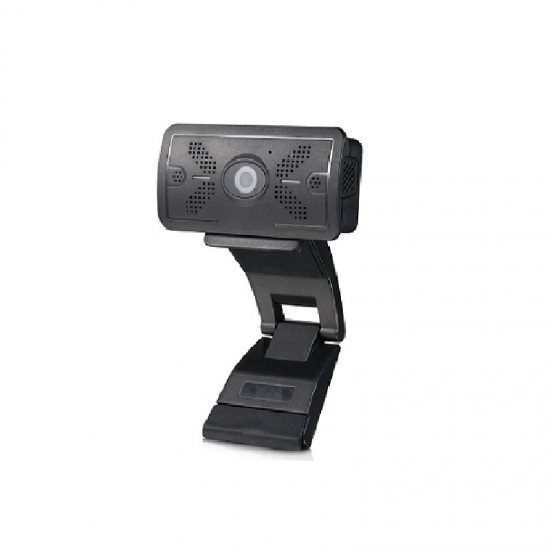

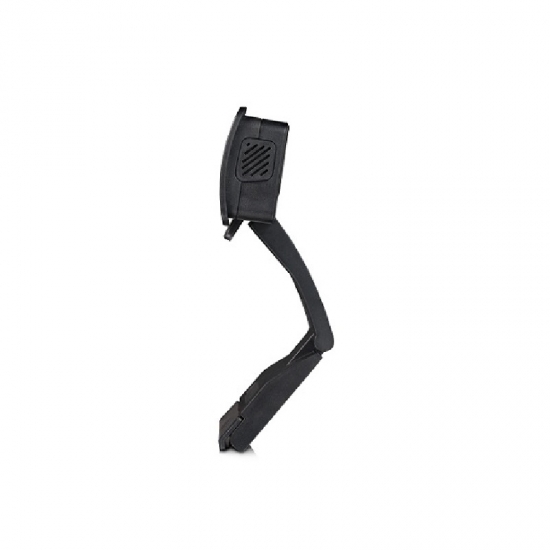

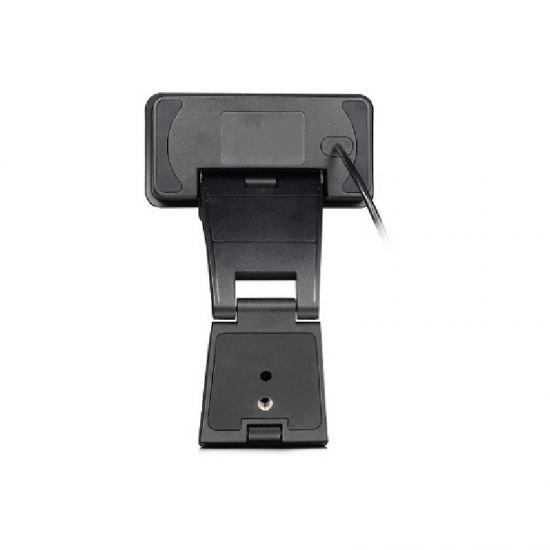

UHV USB 2.0 HD Fixed HD Video Camera with Audio In

The UHV-200-U2 Series Full HD, USB 2.0 connection, mini size, Mic Built in,camera offer perfect functionality, superior performance and rich interfaces. The features include advanced ISP processing algorithms to privide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. The camera work stably when operation is simple and installation and mainteance is quite convenient.
  • item no.:

    UHV-200-US
  • Description
  • Information

Features


※ Wide FOV: UHV-200-U2 adopts 83° large angle and small distortion lens, to present an open vision
※ Superb High-definition Image: UHV-200-U2 employs 1.2.9 inch 2.07 Megapixel high quality CMOS sensor, resolution is up to 1920 x 1080 with frame rate up to 30fps
※ Low Noise and High SNR: Low Noise CMOS effectively ensure high SNR of camera video
※ Multiple video compression: support H.264 / MJPEG, YUV video compression to made video play smoothly
※ Stereo sound: Builit-in pick-up to present clear stereo sound effect, no need to connect external device
※ USB 2.0 interface: Plug and Play function is better for power supply and unpgrading
※ Multiple installation: Easy to install on any device, LCD screen, Laptop, talble or tripod
※ Wide Appliction: personal video conferencing, live video conference, collaboration meeting etc.
※ Convenient to operate: No need to download driving device:




Specification


Model No.

UHV-200-U2

Camera Parameter

Sensor

1/2.9" high quality HD CMOS sensor

Effective Pixesl

16:9, 2.07 Megapixel

Video Format

950X540/160X90/320X180/432X240/640X360/800X488/800X600/864X480/960X720/1024X576/1280X720/

1600X896/1920X1080/2304X1296X2304X1536/272X144/368X208/384X216/480X272/624X352/912X512/4

24X240/480X270/484X480/640X480/352X288/320X240/176X144/160X120/P30

Digital Zoom

10X

View Angle

83°(Pan) 53.1(Tilt)

Min.Illumination

0.5Lux(F1.8, AGC ON)

Focus

Auto

Aperture

Fixed

Backlight contrast

ON / OFF

Exposure

Exposure parameter could be adjusted; support auto exposure

Video Adjustment

Brightness, Color, Saturation, Contrast, White balance mode, Gain, Anti-flicker, low brightness compensation etc.

SNR

Above 50dB

Input/Outpur Interface

Video Interfaces

USB 2.0(Power supply, upgrading available)

Video Compression Format

H.264, YUV, MJPEG

Audio Input Interface

Built in omnidirection high sensitive digital pick-up

Other Parameter

Input Voltage

5V

Input Current

500mA(Max.)

Power Consumption

2.5W

Store Temperature, Humidity

 - 10°C - +60°C, 20% - 95%

Working Temperature, Humidity

 -10°C - +50°C, 20% - 80%

Dimension(WxHxD)

112mm x 65mm x 93mm

Weight(appx.)

0.25kg

Application

Indoor
