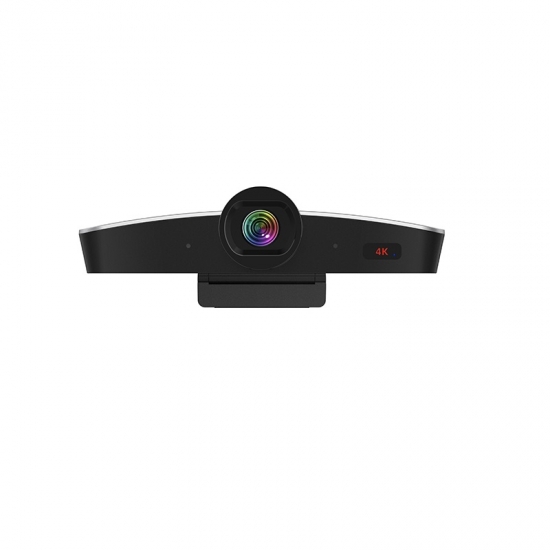

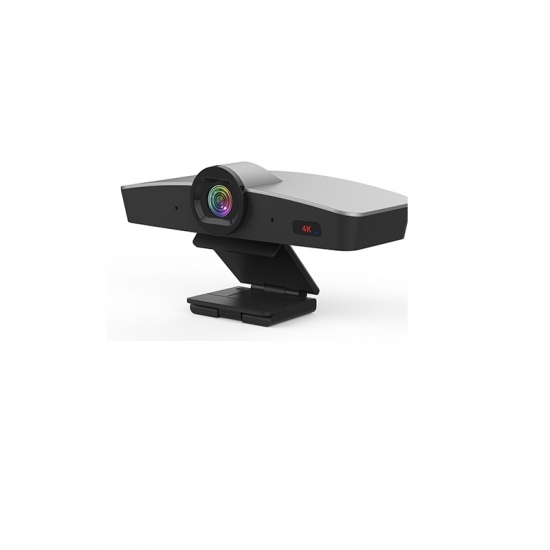

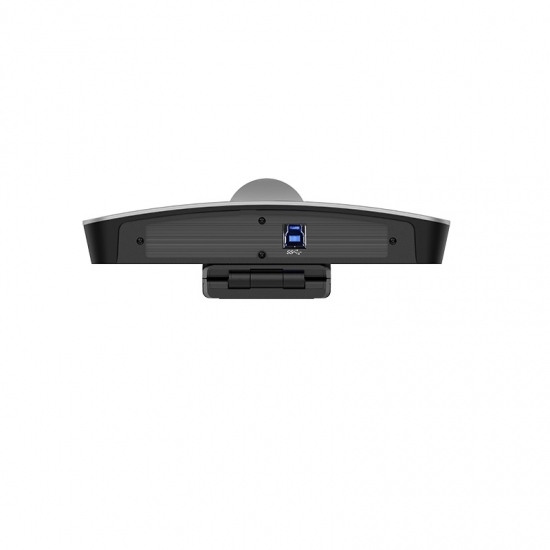

4K UHD ePTZ Video Conferencing Camera

UHV-100H-U3S is a professional 4K Ultra HD Eptz video conferencing camera, 4X digital zoom, 110 degree super wide angle, no PSU requested, power/control/video from USB3.0 and USB2.0, idea option for infividual desktop and huddle room video conferencing.
  • item no.:

    UHV-100H-U3S
  • payment:

    T/T
  • product origin:

    China
  • color:

    Black
  • shipping port:

    Shenzhen
  • lead time:

    3
  • Description
  • Information

※ Adopt the most advanced image DSP and 1/2.5" 8.51MP Sensor
※ Used high quality 12MP optical full glass lens, output ultra-high definition and crisp image
※ Power via USB, a single USB cable for video output, camera control and power supply directly, friendly-use and flexible operation
※ Fast video swith: only 1 second
※ Unique and patent camera housing and mechanism design
※ Field firmware upgrade to simplify compatibility
※ Matched with full function IR remote controller, to control camera's electronic PTZ movement
※ 4x digital zoom
※ Support max 3840x2160@30 UHD resolution
※ 110 degree view angle without distortion
※ Electroinc pan/tilt design, no mechanism problem
※ Support WDR, 2D noise reduction
※  Support image flip function, camera can be installed upside down


Model No.

UHV-100H-U3S

Sensor

1/2.8" inch high quality, 8.51MP Sony CMOS sensor

Video System

USB3.0

USB2.0

MJPG

YUV

MJPG

YUV

3840x2160P30/25/15
2560x1440P30/25/15
1080P30/25/15
720P30/25/15
160X120P30/25/15
176X144P30/25/15
320X240P30/25/15
352X288P30/25/15
640X480P30/25/15
1600X896P30/25/15
1024X576P30/25/15
960X540P30/25/15
848X480P30/25/15
800X600P30/25/15
800X448P30/25/15
640X360P30/25/15
480X270P30/25/15
320X180P30/25/15

1080P30/25/15
720P30/25/15
160X120P30/25/15
176X144P30/25/15
320X240P30/25/15
352X288P30/25/15
640X480P30/25/15
1600X896P30/25/15
1024X576P30/25/15
960X540P30/25/15
848X480P30/25/15
800X600P30/25/15
800X448P30/25/15
640X360P30/25/15
480X270P30/25/15
320X180P30/25/15

3840x2160P30/25/15
2560x1440P30/25/15
1080P30/25/15
720P30/25/15
160X120P30/25/15
176X144P30/25/15
320X240P30/25/15
352X288P30/25/15
640X480P30/25/15
1600X896P30/25/15
1024X576P30/25/15
960X540P30/25/15
848X480P30/25/15
800X600P30/25/15
800X448P30/25/15
640X360P30/25/15
480X270P30/25/15
320X180P30/25/15

1080P5
720P15/5
160X120P30/25/15
176X144P30/25/15
320X240P30/25/15
352X288P30/25/15
640X480P30/25/15
1600X896P5
1024X576P30/25/15
960X540P30/25/15
848X480P30/25/15
800X600P30/25/15
800X448P30/25/15
640X360P30/25/15
480X270P30/25/15
320X180P30/25/15

Zoom

4x digital zoom

Horizontal view angle

110°

F.no.

2

Focal distance

f=2.22mm

Preset

Remote 10

Control Interface

USB

Noise reduction

2D

Minimun Lux

0.1Lux

White Balance

Auto / Manual / Auto Tracking / OnePush / Indoor / Outdoor

Anti Flicker

OFF/50Hz/60Hz

Gamma

Support

In-ceiling Mount

Support

Mirror

Support

Focus

Fixed

Iris

Auto/Manual

BLC

Support

Image Flip

Support

USB Power

Support

Input Voltage

5V 900mA

Dimension(W x H x W)

220mm x 173mm x117mm
