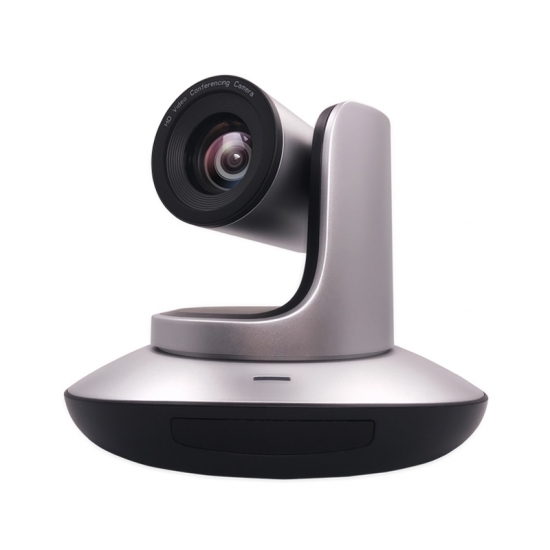

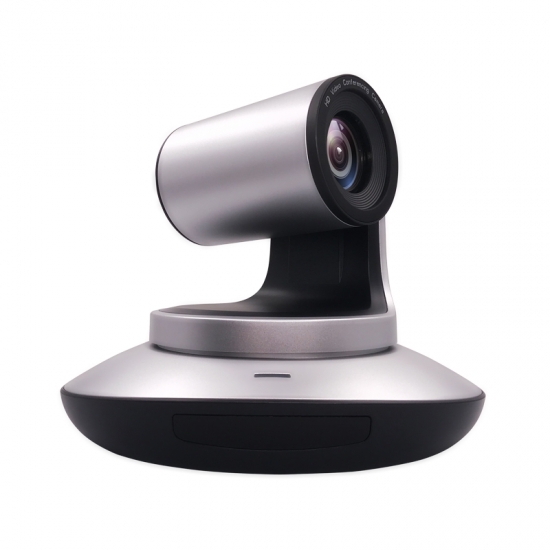

UHV IP USB 3.0 12X 3G-SDI&HDMI Recording PTZ Cameras

UYH-12X-IP-S Professional grade USB 3.0, IP 3G-SDI & HDMI HD PTZ Video Camera is adopted Ambarella A9 ISP to output unparalleled image quality, applied for both cloud-base and on-premise video collaboration for cooperate, education, goverment..
  • item no.:

    UHV-12X-IP-S
  • Description
  • Information
  • Downloads

Features


※ 3G-SDI & DVI-I simultaneously output
※ Zoom: 12X optical Zoom +2X Digital Zoom
※ Adopts most advanced DSP,1/2.8" inch 5MP sensor
※ 12x Optical Zoom + 2x digital zoom, with 72.5°field of view
※ 1080p60 video over IP, and support H.264, H.265 encoding
※ Support POE: easy to use one RJ45 cable to get video, control and powere supply
※ IP, HDMI,SDI, USB outputs, fit for different application
※ Smooth PTZ mechanical design, accurate pan tilt motor control
※ Special focusing algorithm: fast and precise fosucing performance when zooming or moving
※ WDR, 3D Noise Reductaion feature
※ Standard IP Visca, Serial Visca, Pelco-P/D control protocol, IP Visca over TCP/UDP
※ Supplied with funcation IR remote controller, can set IP address via OSD menu
※ Automatic access to the IP address
※ 128 presets
※ Image flip function, support upside-down installation
※ Support daisy chain feature




Specification


Model No.

UHV-12X-IP-S

Camera

Sensor

1/2.8 inch, 5Mega Pixel High Quality CMOS sensor

Video System

HDMI

SDI

IP

USB3.0

USB2.0

1920X1080P60/50/30/25;
1280X720P60/50/30/25;
1920X1080i60/50

1920x1080P60/50/30/25;
1280x720P60/50/30/25
1920x1080i60/50

Main Steam:1920x1080P60
Sub Steam:1280x720,704x576,640x480,352x288

1920x1080P60/50/30/25
1280x720P60/50/30/25

1280x720P25,1024x576p30,
960x540p30,640x260P30, 512x288P30,352x288P30

Zoom

12x optical zoom & 2x digital zoom

View Angle

6.3°(wide) - 72.5°(tele)

Focal Length

f=3.92(wide) - 47.32mm(tele)

Preset

10 via remote controller: 128 via serial port; preset precision: 0.1°

Noise Reduction

2D & 3D

SNR

Above 50dB

Minimum Lux

0.01Lux

White Balance

Auto/Manual/Auto Tracking/One Push/Indoor/Outdoor

Anti Flicker

50Hz/60Hz/OFF

D/N Mode

Supported

Gamma

Supported

Mirror Image

0.01Lux

IRIS

Auto/Manual

Electronic Shutter

Auto/Manual

BLC

Auto/Manual

Focus

Auto/Manual

Mechanisam

Rotation Angle

Pan: -170° - +170°; Tilt: -30° - +90°

Rotation Speed

Pan:0°  - 120° /s; Tilt: 0° - 80°/s

Pan Tilt Flip

Supported

Control Port

RS232/RS485/RJ45

Video Port

HDMI/RJ45/SDI/USB3.0/USB2.0

SNR

75dB

Encode

Network Speed

1000M

Video Encoding

H.264/H.265

Bit Rate Control

Variable Bit Rate, Constant Bit Rate

Video Bit Rate

1024Kbps - 30720Kbps

Frames

50HZ: 1fps - 30fps; 60HZ: 1fps - 30fps

IP Protocol

TCP/IP, HTTP, RTSP, Onvif,DHCP

POE

Supported

Input Voltage

DC12V,2A

OSD Menu

Language

English/Chinese

Dimension(W x H x W)

Auto/Manual

Dimension

220mm x 173mm x 190mm

Net Weight

1.25KGS(2.8LBS)

Package

320mm x 300mm x 310mm

Warranty

Basic Warranty

2 Years
