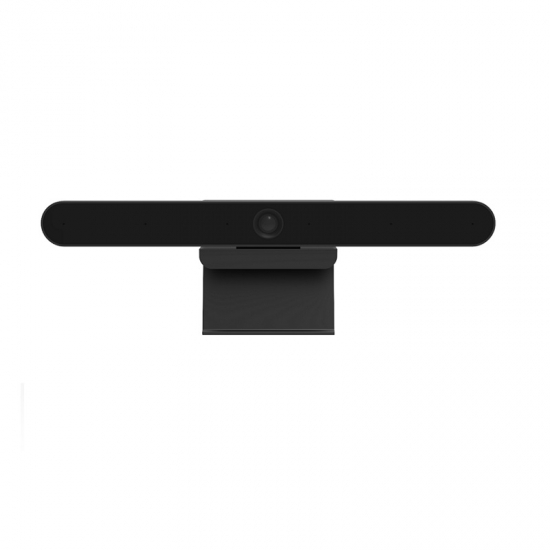

4K 4X Digital Zoom 110° Field View EPTZ Camera

WINAFE MZC-F22UV2 Series 4K EPTZ Camera is new design and cost effective with 110° FOV & 4x digital product, with 1 channel audio and USB 2.0 interface, it is good used on the huddle video conference and home office.
  • item no.:

    MZC-F22UV2
  • payment:

    T/T, WestUnion
  • product origin:

    China
  • color:

    Black
  • lead time:

    3
  • Description
  • Information

Feature


※ 1/2.8" CMOS, 8.57MP, up to 3840x2160@30fps

※ 4K wide angle lens, no distortion
※ Support MJPG/YUY2 video compression
※ Support manual image adjustment
※ Support EPTZ
※ Built-in one channel MIC
※ Support UVC protocol
※ Standard Micro USB 3.0 interface

※ USB 2.0 video output interface, support up to 4K@30fps resolution


Dimension


Model No.

MZC-F22UV2

HD Camera

Image Sensor

1/2.5" CMOS, 8MP

Video Format

YUY2: 1920x1080, 320x240, 640x480,800x600, 1024x768, 1280x720
MJPG: 1920x1080, 320x240, 640x480, 800x600, 1024x720, 3840x2160

Focal Lens

2.2mm

Iris

F2.4

Field of View

Horizontal 110°

Min.illumination

1Lux @ (F1.8, AGC ON)

White Balance

Auto, One Push

S/N

Above 50dB

AGC

Auto, Manual

Interface

Control Interface

1 x USB

UVC

UVC1.1

UVC PTZ Control

Support

UAC

Support

General

Power Supply

DC 5V

Power Consumption

Below 2.5W

Working Temperature

 -10°C - +40°C

Store Temperature

 -20° - +60°

Dimension(L x W x H)

208mm x 56mm x 48mm

Weight

0.22kg

Color

Black
