USB 2.0 HD Video Conferencing Camera

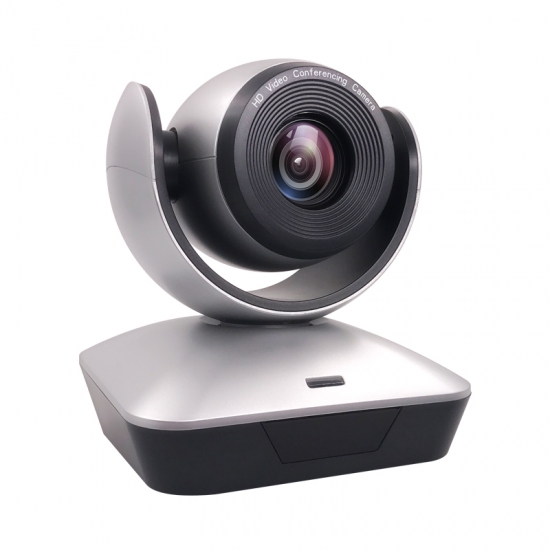

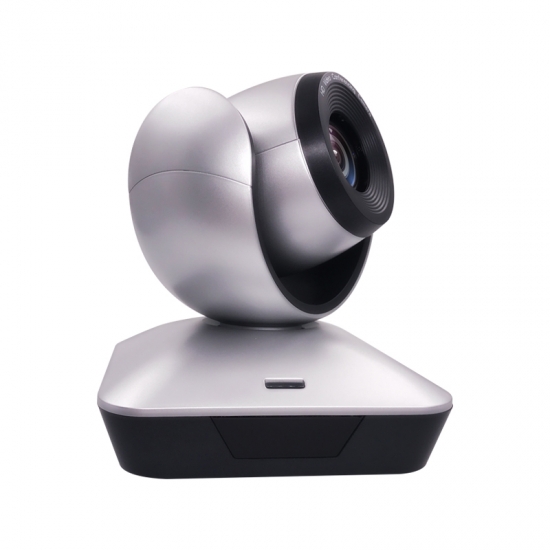

UHV-10X-U2S Cost effective 10X USB 2.0 HD video conferecing PTZ camera for web conferencing and video conferencing to offer enterprise-class image and flexible control.
  • item no.:

    UHV-10X-U2S
  • Description
  • Information

Feature


※ Adopted advanced industrial level ISP, and Sony 5MP CMOS sensor, to output crisp image
※ Full HD 1080p30 resolution
※ WDR, BLC,3D noise reduction and exposure compresation value to be adjustable via OSD menu with applied environment
※ Fast & accurate focus and 10x lossless optical zoom, with 62.5° degree wide angle FOV, along with smooth pan/tilt rotation to capture any view in conferencing space
※ Plug&Play USB 2.0 video steaming output, compatible with most leading video conferencing software: Zoom.us, Skype4business, Vidyo, Bluejans, Webex, Google Hangout, Trueconf, Gotomeeting ect, at different operation Windows, Mac,Android and Linux. etc.
※ FECC(Far End Camera control) supported
※ Standard Visca and UVC 1.5 Protocol


Dimensions





Specification


Model No.

UHV-10X-U2S

Sensor

1/2.8 inch high quality, SONY CMOS Sensor

Video System

1920x1080P30/25, 1280X720P30/25

Zoom

10x optical zoom + 12x digital zoom

View Angle

6.43°(wide)  - 62.5°(tele)

SNR

More than 50dB

Focal Length

f=4.7(wide) - 47mm(tele)

Minimum Lux

0.1Lux

White Balance

Auto/Manual

Focus

Auto/Manual

Iris

Auto/Manual

Electronic Shutter

Auto/Manual

Black Light Compensation

ON/OFF

Anti Tlicker

50Hz/60Hz/OFF

Pan Rotation Angle

- 170° - +170°

Tilt Roation Angle

- 30°  - + 90°

Pan Rotation Speed

0°  - 120° /s

Tilt Rotation Speed

0°  -  80° /s

Preset

128 via RS232 output, 10 via remote controller

Video

USB2.0(MJPG fomat)

Control

RS232(Sony visca), USB 2.0(UVC1.5 protocol)

Power

DC12V

OSD Menu

English/Chinese

Dimension(W x H x W)

148mm x 132mm x 161mm

Package

280mm x 240mm x 240mm

Net Weight

0.9KG(2LBS)
