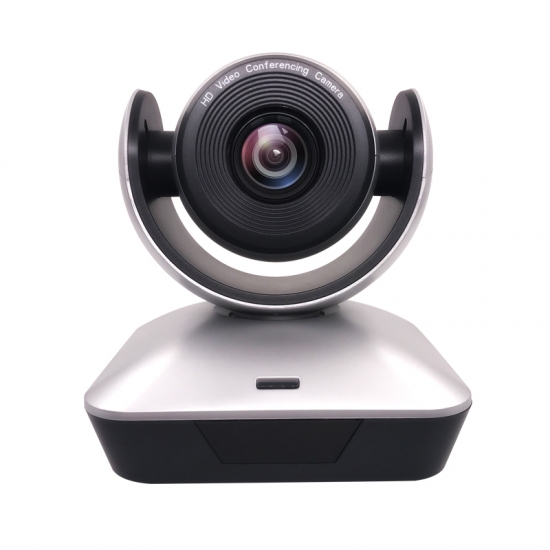

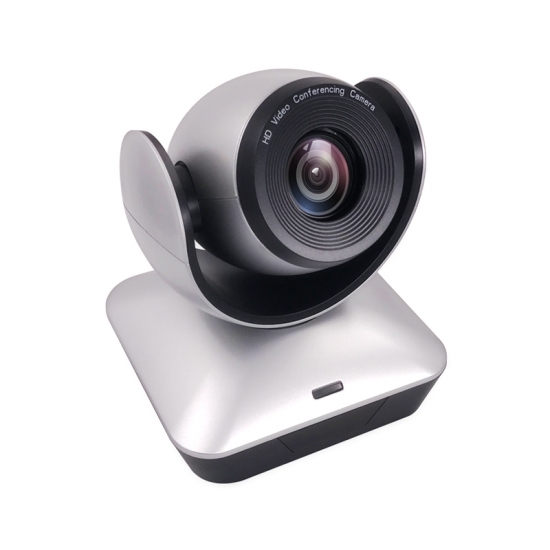

UHV USB 3.0 HD 5X Small Size USB PTZ Video Conferencing Camera

UHV-5X-U3S a totaly plug & play, one single USB 3.0 cable feeding video, control and power. With 5x, 85 degree FOV lens, perfect for huddle room video conferencing solution.
  • item no.:

    UHV-5X-U3S
  • Description
  • Information

Advantages


Ultra crystal video: with advanced DSP, 1/2.8" inch SONY sensor and high quality 5x lens

Smart & Solid design

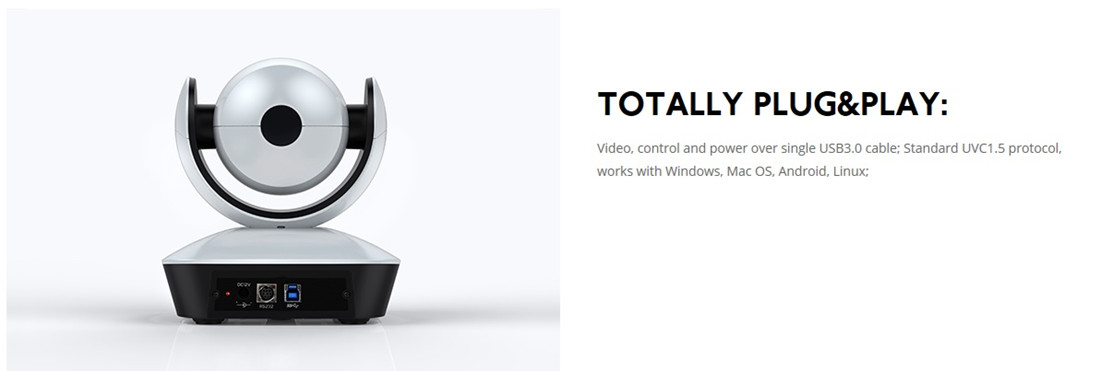

Plug & Play, easy connection

All video, control and power cable over single USB 3.0 cable

USB 3.0 YUY2 video format, works with Windows, Mac OS, Android, Linux

Standard UVC1.5 protcol, compatible with most VC application


Feature


USB 3.0 super speed output

5x optical zoom + 2x digital zoom

85 degree ultra wide of viewing

1920x1080p60(YUY2) high definition

Ultra smooth PTZ mechanism

Accurate PT motor control

Effective RS232/RS485 serial control

WDR,3DNR,BLC, Anti-flicker feature

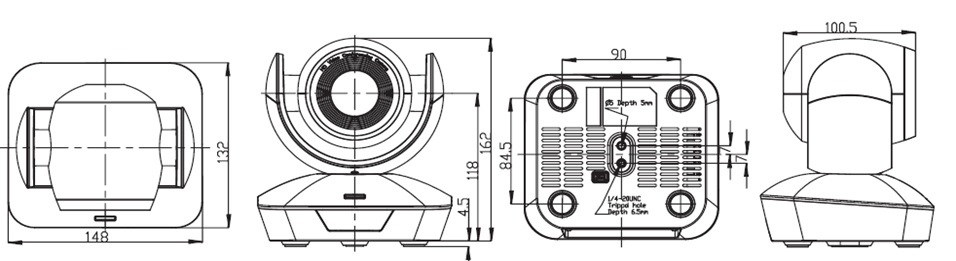

Dimensions




Specification


Model No.

UHV-5X-U3S

Sensor

1/2.8" inch high quality, SONY CMOS sensor, 5MP

Video System

USB 3.0 mode: 1920 x 1080p@30/25, 1280x720p@60/50/25
USB 2.0 mode: 1280 x 720@25, 960x540@30, 704x576@30,360x640@30, 352x288@30

Zoom

5x optical zoom + 12x digital zoom

View Angle

85°

Focal Length

f = 3.1 - 15.5mm

Minimum Lux

0.1Lux

S/N Rate

Above 50dB

Focus

Auto/Manual



Iris

Auto/Manual

White Balance

Auto/Manual/Indor/Outdoor

Electronic Shutter

Auto/Manual

Anti Flicker

50Hz/60Hz/OFF

BLC

ON/OFF

Pan Rotation Angle

 - 170° - +170°

Tilt Roation Angle

- 30°  - + 90°

Pan Rotation Speed

0°  - 120° /s

Tilt Rotation Speed

0°  -  80° /s

Preset

128 via RS232 contorl, 10 via remote controller

Control Port

RS232(Sony Visca), USB3.0(UVC1.5 protocol)

Video Port

USB3.0(YUY2 format)

Power

DC5V( USB 3.0)

OSD Menu

Enligh/Chinese

Camera Size

148mm x 132mm x 161mm

Package

280mm x 240mm x 240mm

Pacage content

Camera, Rs232 cable, 3M USB3.0 Cable, power supply

Net Weight

0.8KG
