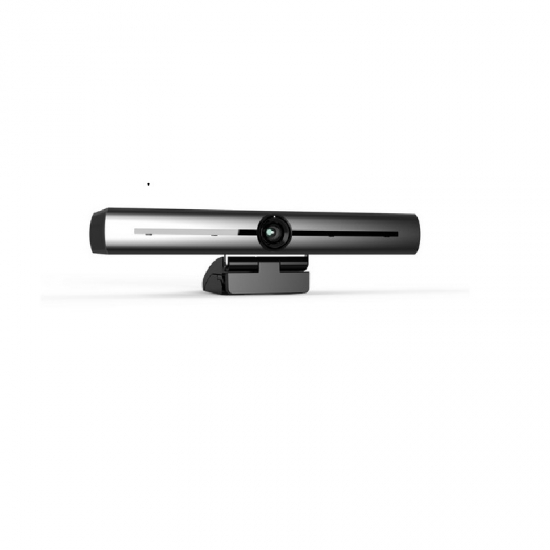

4K USB3.0/HDMI/LAN HD Video Conference Camera

USB-300-U3 4K, EPTZ, Wide Angle, HDMI Output, Metal Case series camera has perfect functions an superior performance, which adopts advanced ISP processing algorithms so as to provice vivid images with evenly clear brightness, strong color layering, high resolution, and fantastic color rendition. Easy and convenient to install and maintain, stable and reliable.
  • Description
  • Information

Features


※ Superb High-definition Image:1/2.5" inch high quality CMOS sensor. Resolution is up to 4K with frame rate up to 30fps
※ Wide FOV:83° large wide angle and small distortion lens: 3x zoom lens
※ Advanced Focusing Technique:VCM motor auto-focusing lens, advanced auto-focusing algorithm makes the camera auto focusing rapidly, accurately and stably.
※ Low Noise and High SNR: low Noise CMOS effectively ensure high SNR of camera video

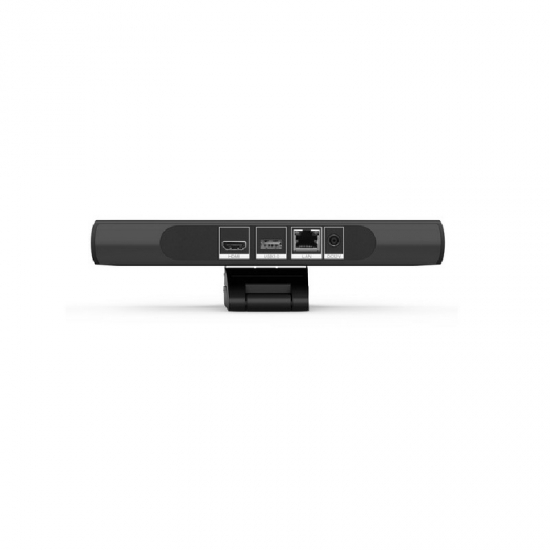

※ Multiple Video Output Interfaces: Support HDMI,USB3.0 and LAN.
※ Multiple Audio Video Compression: Support H.265/H.264/MJPEG video compression; supports AAC, MP3, PCM audio compression; support up to 3840x2160 resolution
    30fps compression
※ Stereo sound: Built-in pickup to present clear stereo sound, no external device required
※ POE: LAN interface supports POE function
※ Built-in Pickup: two built-in MIC pickups
※ Multiple Installation: Staandard equipped with mold clamp, easy to install on any devices, such as LCD screen, laptop, table and tripod
※ Easy to Use: No need to download driver, USB output interface, plug and play
※ Wide Application: personal video conferencing, enterprise video conferencing, collaboration meeting etc.


Dimensions


Specification


Model No.

UHV-300-U3

Camera Parameter

Image Sensor

1/2.5" inch High Quality 4K CMOS sensor

Effective Pixesl

8.28MP 16:9

Video Format

HDMI Video Ouput Format: 1080p30/25/29.97; 1080i60/50/59.94; 720p30/25/29.97
USB 3.0 Video Output Format:up to 3840x2160p30
USB 3.0 is compatible with USB2.0 output

Digital Zoom

3X

View Angle

93.5°/83°/53.1°

Min.Illumination

0.5Lux(F1.8, AGC ON)

Lens

3.5mm

Aperture

2.0+5%

DNR

2D & 3D DNR

White Balance

Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K

Focus

Auto/Manual/One Push

Exposure

Auto/Manual

Backlight contrast

ON / OFF

SNR

Above 50dB

Input/Outpur Interface

Video Interfaces

USB3.0, HDMI, LAN(POE)

Video Compression Format

MJPEG, H.264,H.265

Audio Input Interface

Built in high sensitive digital pickup

Other Parameter

Input Voltage

DC5V

Input Current

1A (Max.)

Power Consumption

5W (Max.)

Store Temperature, Humidity

 - 10°C - +60°C, 20% - 95%

Working Temperature, Humidity

 -10°C - +50°C, 20% - 80%

Dimension(WxHxD)

220mm x 92.75mm x 56mm
