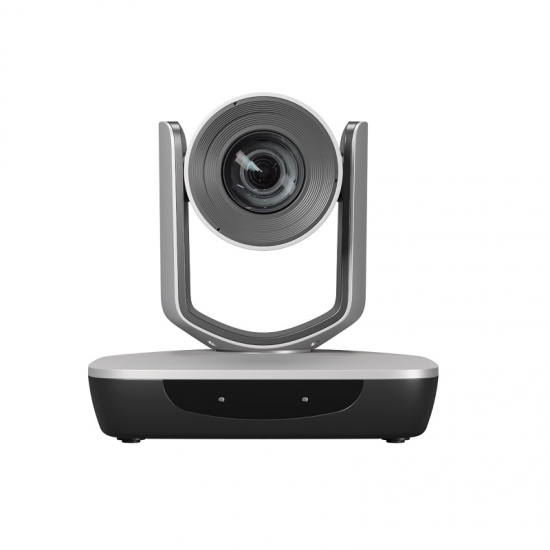

AMC-G Series USB3.0 HDMI IP 20X IP PTZ Camera

Model

AMC-G310U3

AMC-G312U3

AMC-G320U3

Image Sensor

1/2.8" CMOS, 2.14MP

Focal Lens

4.3mm - 43mm

4.14mm - 47.08mm

4.7mm - 94mm

Iris

F1.6 - F3.0

F1.6 - F2.8

F1.6 -F3.5

Field of View

69° - 8°

72.5° - 6.3°

59.5° - 2.9°

Optical Zoom

10X

12X

20X

Digital Zoom

16X

Focal System

Auto, Manual, One Push, PTZ

Exposure

Auto, Manual, Shutter Priority, Iris Priority, Brightness Priority

Min.Illumination

1.0Lux

Shutter Speed

1/50 - 1/10,000s

Gain

Auto, Manual

White Balance

Automatic, Manual, Automatic tracking, One Push, Static Color Temperature

WDR

Yes

BLC

Yes

S/N

Above 50dB

PTZ

Pan Angle

 -170° - +170°

Tilt Angle

  -30° - +90°

Pan Speed

0.1° - 120°/s

Tilt Speed

0.1° - 90°/s

Image Flip

Yes

Preset Number

256

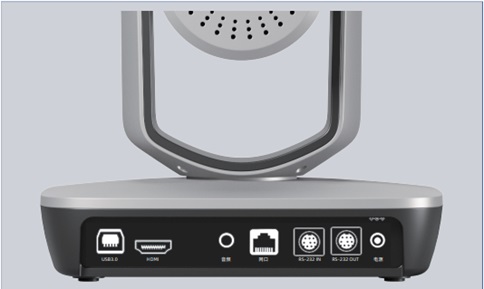

Interface

HDMI

1 x HDMI Video Output: 1080P60/50/30/25, 720P60/50/30/25, 480P60/50

Network

1 x RJ45: 1 x 10M/100M RJ45(POE supported)
1. Video output format: max 1080P60
2. Image compression： H.264/H.265
3. Protocols: ONVIF/RTSP/RTMP/TCP/UDP
4. Audio compression: AAC
5. Support dual steams
1 x USB3.0
1. Support UVC1.1
2. UVC Support:
Video format support H.264/H.265/MJPEG, video resolution:1080P60/50/30/25, 720P60/50/30/25, 480P60/50/30/25, 360P60/50/30/25
Support YUY2/NV12, video solution: 1080P30/25, 720P30/P25, 480P30/25, 360P30/25
3. UVC Audio frmat PCM

Audio Input

1 x LINE IN, 3.5mm

Control Interface

1 x RS232 In, 1 x RS232 Out/RS485

Storage Interface

Max. 256G

General

Protocols

VISCA(support daisy chain) / PELCO-P / PELCO-D

Power

DC12V

Power Consumption

Below 15W

Operating Environment

Temperature: 0°C - +40°C, Relative Humidity: 10%RH - 90%RH

Storage Environment

Temperature: -20°C - +60°C, Relative Humidity: 10%RH - 95%RH

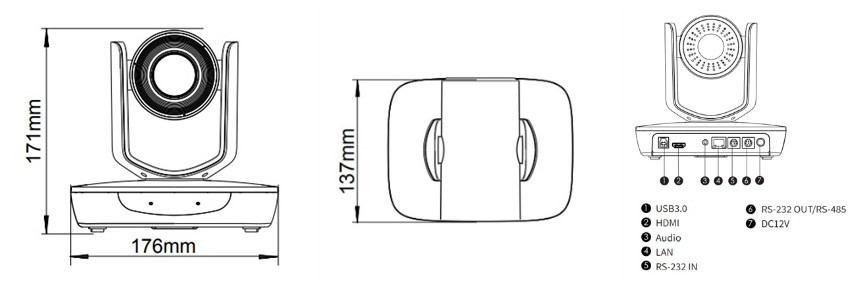

Dimensions

176mm x 137mm x 171mm(WxHxD)

Weight

1.2kg
