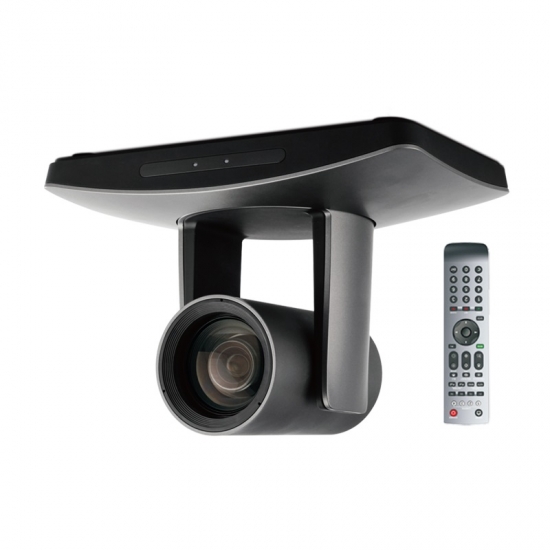

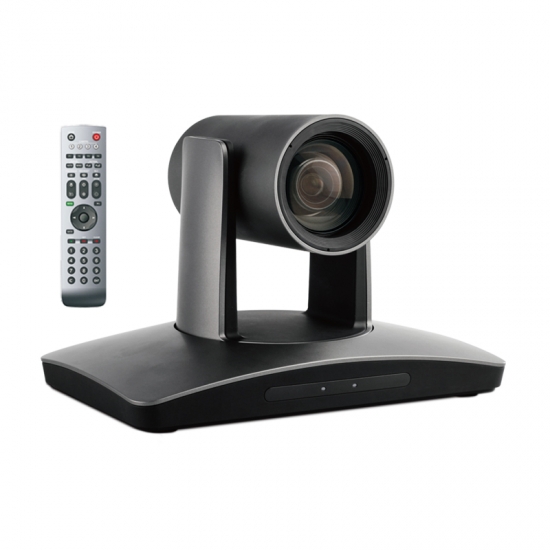

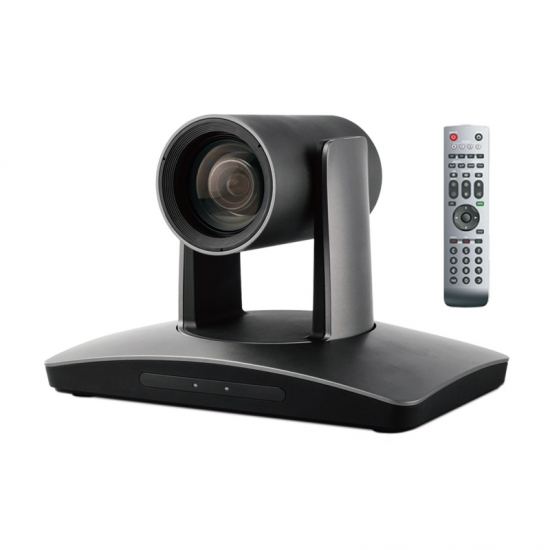

AMC E USB 2.0 12X/10X HD PTZ Video Conference Camera

AMC-E USB 2.0 PTZ Camera is a user friendly USB PTZ camera for middle to large rooms. The AMC-E Series PTZ camera is an affordable, professional-grade USB PTZ camera optimized to deliver an exceptional video communication experience. It is compatible with all of your favorite apps, Cloud Service and audio systems connecting to virtually any desktop or laptop via a single USB cable.With AMC-E USB PTZ Camera , video conferencing is now as simple as plugging in a USB cable.
  • item no.:

    AMC-E200U2/AMC-210U2
  • product origin:

    China
  • color:

    Gray
  • Description
  • Information

Feature



※ UP to 72.5°FOV
※ USB 2.0 interface,MJPEG compressiom
※ Support standard UVC prorocol
※ With OSD menu,support image flip
※ Come with IR remote comtroller
※ Support standard VISCA & Pelco communication protocols
※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain
※ Special mechanical PTZ driving system,ensure precise positioning
※ Provide an extra DVI-D video interface
※ UP to 12X Optacal zoom,12X digital zoom                                                                                                                                  ※ UP to 1080p30 HD video format

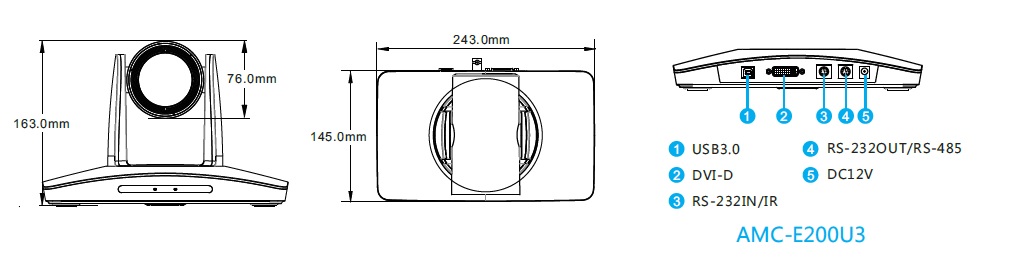

Dimension



Accessories


Specification


Model No.

AMC-E200U2

AMC-E210U2

Image Sensor

1/2.8" Exmor CMOS, 2.14MP

Video Standard(HD)

USB2.0 (MJPEG) 1080/30,720p/50,720p/30,640x480p/30

Focal

f = 3.9mm -46.8mm

f=4.7mm-47mm

IRIS

F1.6 - F2.8

F1.6 - F3.0

Zoom

Optical: 12X, Digital: 12X

Optical: 10X

Field of View

72.5°  - 6.3°

Focus

Auto, Manual, PTZ Trigger AF, One push

Min.Illumination

0.5Lux(Color), 0.1Lux(B/W)

Shutter Speed

1/1 - 1/10,000s

AGC

Auto/Manual

White Balance

Auto, Indoor, Outdoor, One push, Manual, Automatic Tracking,Sodium,Fluorescent

AE Control

Auto, Manual, Shutter Priority, Iris Priority,Intelligence

WDR

Yes

BLC

Yes

Noise reduction

2D/3D

PTZ

Pan Range

 -170°  - +170°

Tilt Range

  -30°  - +90°

Pan Speed

  0.1°  - +120°/s

Tilt Speed

  0.1°  - +80°/s

Preset Number

256

OSD

Yes

Image Flip

Yes

Interface

Video Output

USB2.0,DVI-D

Control Interface

USB2.0,RS-232IN/IR, RS-232OUT/RS-485

General

Control Protocol

VISCA and Support Daisy Chain, PELCO-D, PELCO-P

Address

0 - 63

Power Supply

DC12V

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +60°C

Dimension

243mm x 145mm x 163mm

Weight

1.2KG

Color

Grey
