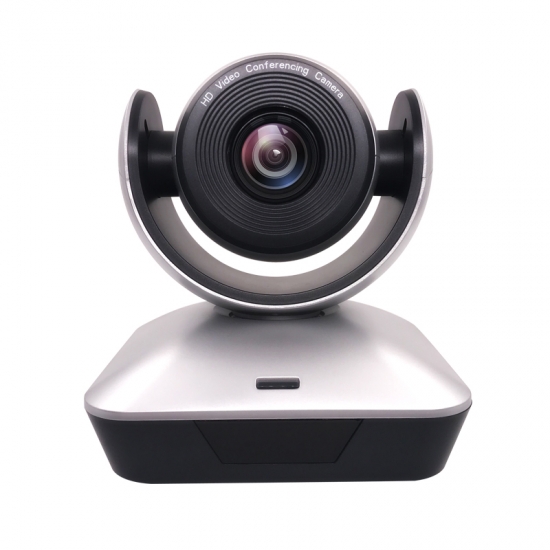

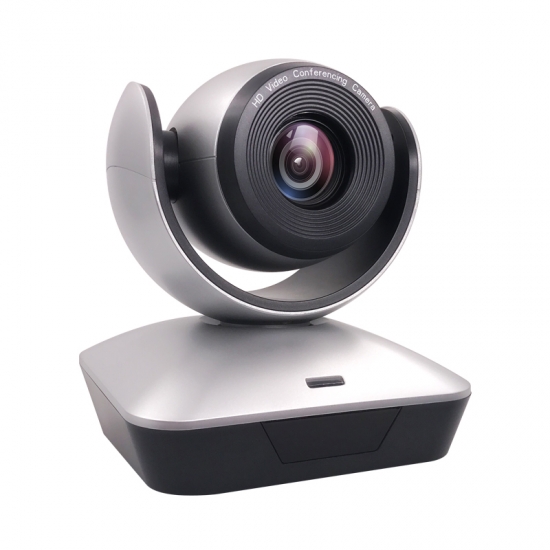

UHV USB 2.0 Cost-Effective 4X Digital Zoom HD Video Camera

UHV-4XD-U2S is an enterprise level high video quality HD PTZ camera at affordable cost, give you a perfect solution for cloud-conferencing, mini meeting room video capture.
  • item no.:

    UHV-4XD-U2S
  • product origin:

    China
  • color:

    Sliver
  • lead time:

    3
  • Description
  • Information

Pro-level HD Video Quality


※ Advanced industrial level ISP, SONY 1/2.8" 5MP image sensor, 4K optical lens with 4x digital zoom, to provide ultra crystal and smooth video experience
※ 1920x1080p 30fps full HD resolution
※ 82.5 degree wide angle of viewing


Smooth & Accurate PTZ Movement


Compact & stable mechanical design, to ensure the quite, smooth, accurate pan tilt movement


Plug & Play Design


※ USB 2.0 output, single USB cable connection, can start quick video call with any video conference software
※ Support FECC(Far End Camera Control)


Easy Control


※ Standard Sony Visca and UVC 1.5 protocol, RS232/RS485 control
※ Upgradable firmware
※ Image flip function support upside-down installation

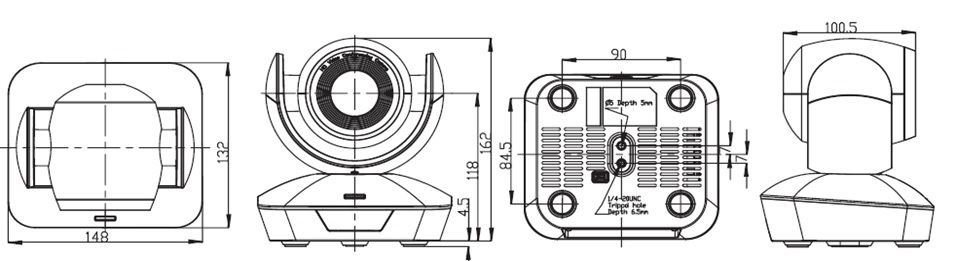

Dimensional Drawing(mm)


Specification


Model No.

UHV-4XD-U2S

Camera

Sensor

1/2.8" inch high quality, SONY CMOS sensor, 5MP

Video System

1920x1080p30/25/20/15/10/5
1280x720p30/25/20/15/10/5
720x576p30/25/20/15/10/5
640x480p30/25/20/15/10/5
320x240p30/25/20/15/10/5

Video Format

MJPG/H.264

Zoom

4x digital zoom

View Angle

82.5°

Focal Length

F=2.7mm

Minimum Lux

0.1Lux

S/N Rate

Above 50dB

Focus

Fixed Focus

Iris

Fixed Iris

White Balance

Auto/Manual/Indor/Outdoor/Push/Sodium/Fluorescent

Electronic Shutter

Auto/Manual

BLC

Auto/Manual

Mechanism

Pan Rotation Angle

 - 170° - +170°

Tilt Roation Angle

- 30°  - + 90°

Pan Rotation Speed

0°  - 30° /s

Tilt Rotation Speed

0°  -  30° /s

Preset

128 via RS232 contorl, 10 via remote controller

Control

RS232/RS485/USB/Remote

Video Port

USB2.0

Input Voltage

DC12V, 1A

Camera Size

148mm x 132mm x 161mm

Package

280mm x 240mm x 240mm

Pacage content

Camera, Romote, RS232 cable, USB2.0 cable, Power adapter
