USB 2.0 Video Conference Camera with Microphone & Speaker

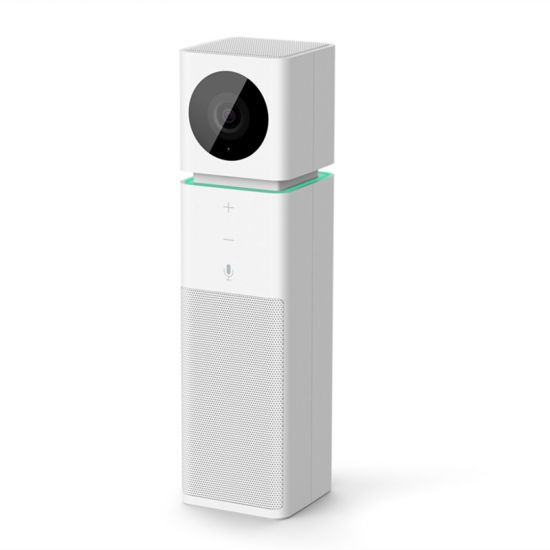

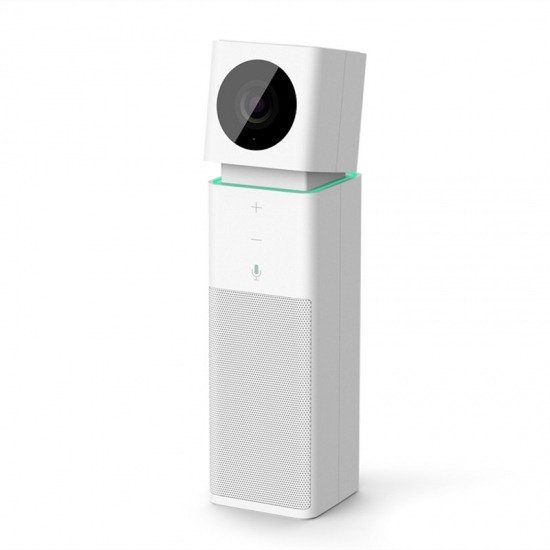

WINSAFE UHV-500U2 is all in one conferencing camera built-iin micropone & speaker, designed for the huddle  room, USB2.0 powered, single cable simplicity to easy connect, 120 degree field of view. Compact and storable, easily bring yoour manual ptz camera with auido with you to anywhere of the world.
  • item no.:

  • product origin:

  • color:

  • lead time:

  • Description
  • Information

UHV-500-U2 is a digital conference phone integrated with audio and wide-angle camera, mainly for small to middle size conference. It can be plug and play without installation or driver, supporting audio and video conference software and IM instant communication tools, such as Skype,Webex,Zoom and MSN. Or can be used as external microphone and loudspeaker for your computer. Also It can be used for personal business or HI-FI equipments for entertainment.

It provides users with high quality Internet video meeting or Internet teleconference, high definition real-time synchronized screen, and the best distance of picking up sound is 3m.The omnidirectional microphone is used with strong anti-interference ability and wide range of sound pickup. video image is clear and smooth, voice call is clear and natural, and has strong echo suppression and noise reduction ability. Meeting communication becomes easier, clearer and more efficient, giving users a high-quality meeting experience.


※ 1/2.8" inch high quality CMOS sensor. Resolution is up to HD full 1080P with frame rate up to 30fps
※ Wide FOV:120° large wide angle, the lens can be adjusted up and down 45°, supporting Angle and elevation shooting.
※ 360° pick-up microphone,256ms acoustic echo cancellation and full duplex HI-FI two-ways audio technology.
※ Low Noise and High Dynamic Noise Reduction(DNR)
※ High-end elegant solid appearance,rugged design and durability. Easy to put and use.
※ Microphone and volume control touch keypad, circle indicator light, intuitive and easier to operate equipment.
※ Easy to Use: No need to download driver, USB output interface, plug and play
※ Wide Application: personal video conferencing, enterprise video conferencing, collaboration meeting etc.

Model No.


Camera Parameter

Image Sensor

1/2.8" inch High Quality Full HD CMOS sensor

Effective Pixesl

2MP 1080P

Video Format

USB 2.0 Video Output Format:up to 1080p

View Angle

120° Wide Angle

Pick-up distance

5m,  360° pick-up microphone


2D & 3D DNR

White Balance






Stereo loudspeaker

10 adjustable range up to 94dBA , frequency response: 300 to 22KHz


Above 50dB

Input/Output Interface

Video Interfaces

Mini USB2.0

Video Compression Format


Audio Input Interface

Built-in high sensitive digital pickup microphone and adjustable loudspeaker.

Other Parameter

Power Consumption

DC 5V/500mA, 2.5W


USB Data Line(1.5m), USB Extension Line(1.5m),user manual

Supported OS

Windows/MAC OS 7 up/Android

Store Temperature, Humidity

 - 10°C - +60°C, 20% - 95%

Working Temperature, Humidity

 -10°C - +50°C, 20% - 85%


0.5KG, Package: 1.2 KG


235x62x62 mm; Package: 270x230x83 mm




Two years
