USB 3.0 HD Video Conferencing Camera

UHV-10X-U3S Smart and affordable USB 3.0 HD Video Conferencing Camera, ideal for huddle room, specially corporation, telemedicine, on-line education and other professional cloud-based unified communication
  • item no.:

    UHV-10X-U3S
  • Description
  • Information

Feature


※ Adopted advanced industrial level ISP, Sony 1/2.8 5MP CMOS sensor, output full HD 1080p with 60 frames per second video streaming, to offer you completely high definition, noiseless and crisp, realistic color image with full details
※ Using multi-element 10x lossless optical zoom lens, with 62.5 degree wide angle FOV, along with smooth pan & tilt rotation and fast & accurate focus to capture any view in conferencing space
※ USB 3.0 Output, Plug-and-Play, Standard UVC1.5 protocol enable users to connect camera with PC by USB cable
※ Compatible with most leading video conferencing software: Zoom.us, Skype4business, Vidyo, Bluejans, Webex, Google Hangout, Trueconf, Gotomeeting ect, at different operation Windows, Mac,Android and Linux. etc.
※ FECC(Far End Camera control) supported
※ Standard Visca and UVC 1.5 Protocol, PTZ control and firmware upgrade via RS232(RS485) and USB port

128 presets supported

Support multiple mount way: available to install on desk, monitor, tripod or up-side down in-ceiling.


Dimensions







Specification


Model No.

UHV-10X-U3S

Sensor

1/2.8 inch high quality, SONY CMOS Sensor, 5MP

Video System

1920x1080p60/50/30/25,1280x720p60/50/30/25

Zoom

10x optical zoom + 12x digital zoom

View Angle

6.43°(wide)  - 62.5°(tele)

SNR

More than 50dB

Focal Length

f=4.7(wide) - 47mm(tele)

Minimum Lux

0.1Lux

White Balance

Auto/Manual

Focus

Auto/Manual

Iris

Auto/Manual

Black Light Compensation

ON/OFF

Anti Flicker

50Hz/60Hz/OFF

Pan Rotation Angle

- 170° - +170°

Tilt Roation Angle

- 30°  - + 90°

Pan Rotation Speed

0°  - 120° /s

Tilt Rotation Speed

0°  -  80° /s

Preset

128 via RS232 control; 10 via remote controller

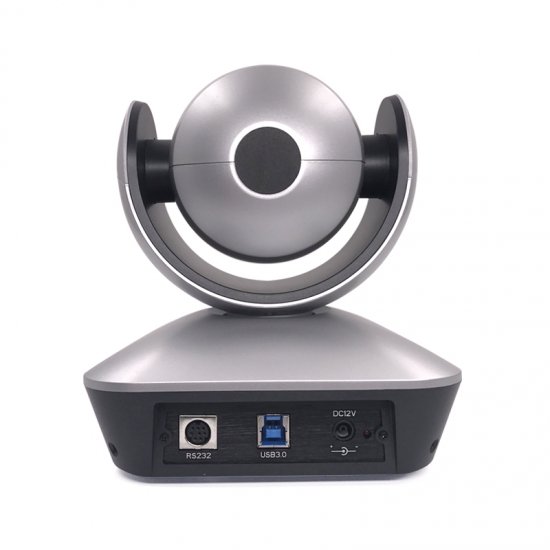

Control Port

RS232(Sony Visca), USB3.0(UVC1.5 protocol)

Video Port

USB3.0(YUY2 format)

Input Voltage

DC12V

OSD Menu

English/Spanish/Russia/Chinese

Dimension(W x H x W)

148mm x 132mm x 161mm

Package

280mm x 240mm x 240mm
