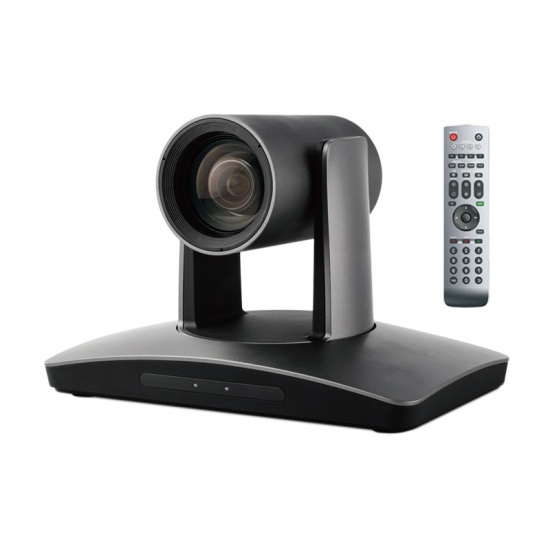

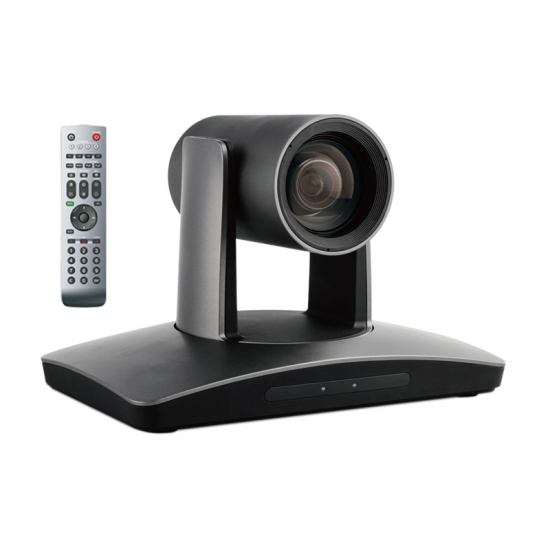

AMC E USB 3.0 12X/10X Professional PTZ Cameras

The AMC-E USB 3.0 PTZ Camera is a 1080p camera with 12X/10X optical zoom for capturing wide angles. With support for DVI-I, USB 3.0. This camera is ideal for broadcasting high definition video signals for broadcast or video conferencing applications.
  • item no.:

    AMC-E200U3/AMC-210U3
  • product origin:

    China
  • color:

    Gray
  • Description
  • Information

Feature



※ UP to 72.5°FOV
※ USB 3.0 interface,raw data output
※ Support standard UVC prorocol
※ With OSD menu,support image flip
※ Come with IR remote comtroller
※ Support standard VISCA & Pelco communication protocols
※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain
※ Special mechanical PTZ driving system,ensure precise positioning
※ Provide an extra DVI-D video interface
※ UP to 12X Optacal zoom,12X digital zoom
※ UP to 1080p60 HD video format



Dimension



Accessories


Specification


Model No.

AMC-E200U3

AMC-E210U3

Image Sensor

1/2.8" Exmor CMOS, 2.14MP

Video Standard(HD)

1920x1080P/60/50/30/25/20/15/10/5
1280x720P/60/50/30/25/20/15/10/5
1024x768P/60/50/30/25/20/15/10/5
800x600P/60/50/30/25/20/15/10/5
640x480P/60/50/30/25/20/15/10/5

IRIS

F1.6 - F2.8

F1.6 - F3.0

Noise Reduction

2D/3D

Focal

f = 3.9mm -46.8mm

f=4.7mm-47mm

Zoom

Optical: 12X, Digital: 12X

Optical: 10X

Field of View

72.5°  - 6.3°

Focus

Auto, Manual, PTZ Trigger AF, One push

Min.Illumination

0.5Lux(Color), 0.1Lux(B/W)

Shutter Speed

1/1 - 1/10,000s

AGC

Auto/Manual

White Balance

Auto, Indoor, Outdoor, One push, Manual, Automatic Tracking,Sodium,Fluorescent

AE Control

Auto, Manual, Shutter Priority, Iris Priority,Intelligence

BLC

Yes

WDR

Yes

PTZ

Pan Range

 -170°  - +170°

Tilt Range

  -30°  - +90°

Pan Speed

  0.1°  - +120°/s

Tilt Speed

  0.1°  - +80°/s

Preset Number

256

OSD

Yes

Image Flip

Yes

Interface

Video Output

USB3.0,DVI-D

Control Interface

USB3.0,RS-232IN/IR, RS-232OUT/RS-485

General

Protocol

VISCA and Support Daisy Chain, PELCO-D, PELCO-P

Spectra Address

0 - 63

Power Supply

DC12V

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +60°C

Dimension

243mm x 145mm x 163mm

Weight

1.2KG

Color

Grey
