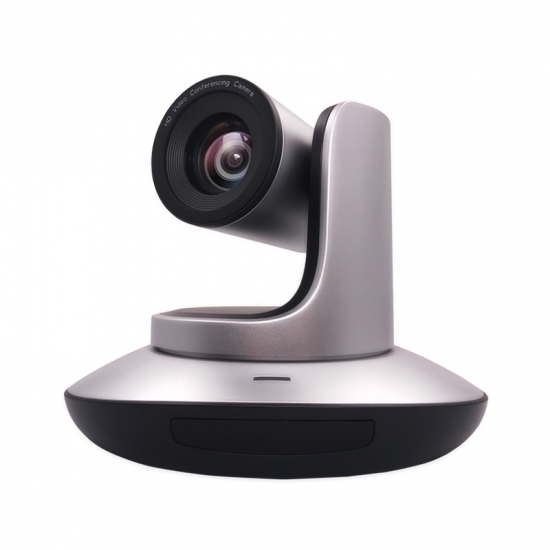

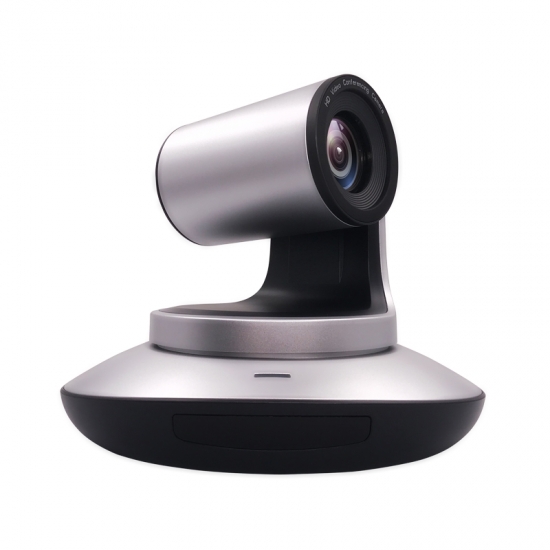

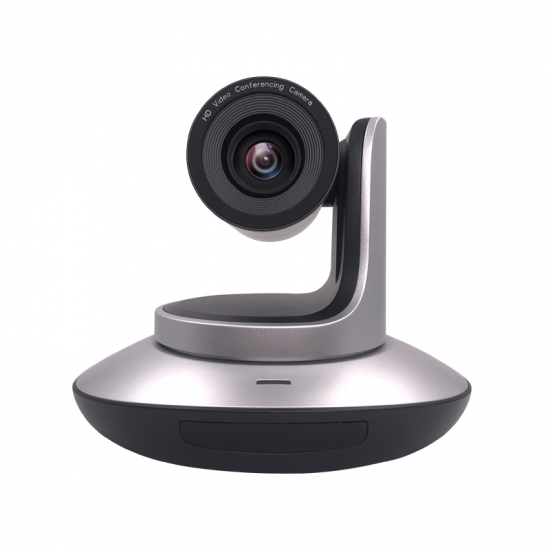

UHV 20X 3G-SDI&HDMI PTZ Video Camera

UHV-20X-S Broadcast level 20x optical zoom 3G-SDI&HDMI PTZ video camera, particularly used for large space A/V system, such as auditorium, boardroom, house of worship, court room, legislative space and broadcast video production etc.
  • item no.:

    UHV-20X-S
  • color:

    Gray/Silver
  • Description
  • Information

Advantages


※ Super high video quality: with advance 1/2.86 8MP Sensor and high quality 20x lens
※ Fast switching between different video formats: only 4 senconds needed
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ Daisy Chain function: with both Visca in and Visca out port
※ With powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time


Features


※ 3G-SDI & DVI-I simultaneously output
※ Zoom: 12X optical Zoom +2X Digital Zoom
※ 1920x1080p 59.94fps high resolution
※ 3G-SDI & DVI-I simultaneously output
※ Zoom: 20X optical Zoom +12X Digital Zoom
※ 1920x1080p 60fps high resolution
※ 57.4° ultra wide FOV

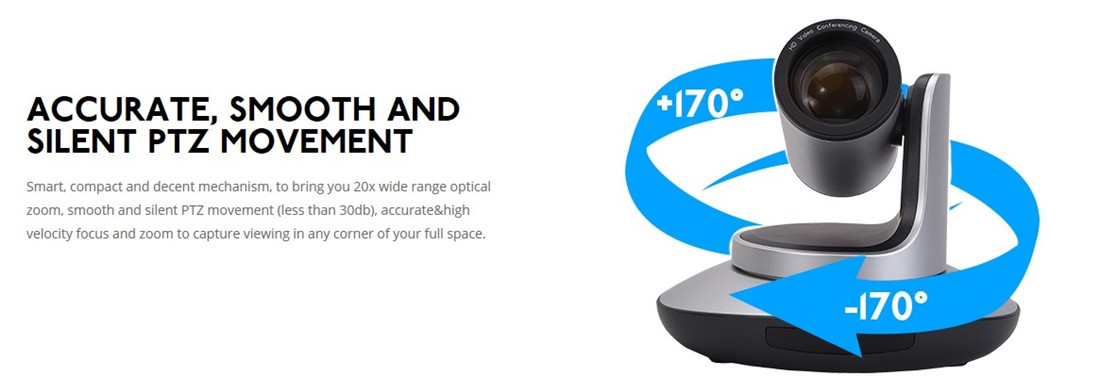

※ Ultra smooth PTZ mechanism
※ Accurate PT motro control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ Effective 3D-noise reduction function
※ Image flip function support upside-down installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls




Specification


Model No.

UHV-20X-S

Sensor

1/2.86 inch high quality, 8MP HD CMOS Sensor

Video System

DVI Port

3G-SDI Port

CVBS port(optional)

1080p60/50/30/25;
1080i60/50
720p60/50/25

1080p60/50/30/25;
720p60/50/30/25

Analog Video

Zoom

20x optical zoom + 12x digital zoom

View Angle

3.2°(wide)  - 57.4°(tele)

Pan Rotation Angle

- 170° - +170°

Tilt Roation Angle

- 35°  - + 90°

Pan Rotation Speed

0°  - 120° /s

Tilt Rotation Speed

0°  -  80° /s

Preset

128

Control Port

RS232/RS485

Video Port

DVI-I, 3G-SDI, CVBS

SNR

75dB

Focal Length

f=4.7(wide) - 94mm(tele)

Minimum Lux

0.2Lux(Day), 0.1Lux(Night), 0.005Lux(DSS on)

White Balance

Auto/Manual

Focus

Auto/Manual

Iris

Auto/Manual

Electronic Shutter

Auto/Manual

BLC

Auto/Manual

Input Voltage

DC12V

Dimension(W x H x W)

220mm x 173mm x 117mm

Net Weight

1.25KG
