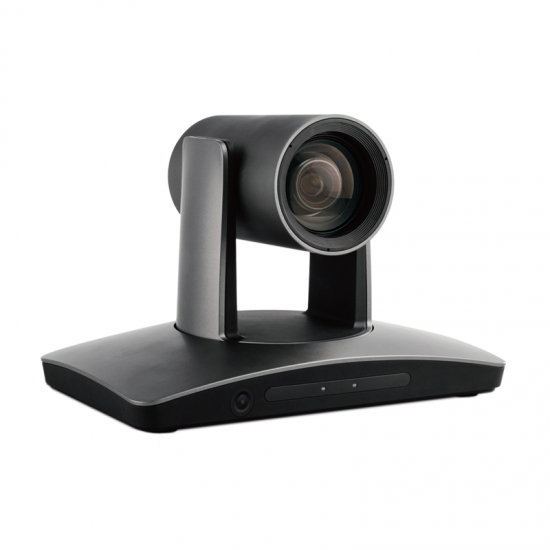

AMC RoomTracking Video Conference Camera

RoomTracker is a revolutionary camera system that can detect conference attendee(s)non-stop and then smoothly pan tilt zoom to give attendee(s) a close shot; all these are done automatically, there is absolutely no human intervention or extra device involved. With these features implemented, the RoomTracker greatly improve your video collaboration experience.

  • item no.:

    AMC-E200T
  • product origin:

    20X
  • color:

    12X
  • Description
  • Information

Your facorable choice to track meeting participants



RoomTracker is a revolutionary camera system that can detect conference attendee(s)non-stop and then smoothly

pan tilt zoom to give attendee(s) a close shot; all these are done automatically, there is absolutely no human

intervention or extra device involved. With these features implemented, the RoomTracker greatly improve your

video collaboration experience.



NON-STOP DETECT AND PRECISE TRACK



The RoomTracker keeps constantly detecting attendee(s) in the conference room, then automatically pan tilt and

zoom to the appropriate positions to frame all attendee(s); once number of attendee(s) changes, the camera will

adjust framing positions accordingly.



PROVIDE VARIOUS INTERFACES, ACHIEVE EXCELLENT COMPATIBILITY



The RoomTracker comes with HD-SDI, DVI-I video interfaces and RS232/RS485 control interface running

Visca/Pelco-D protocols, added the Ethernet and USB3.0 communication connections, giving the RoomTracker

powerful compatibility with your existing video conferencing systems, be it a software or hardware one



Youtube link for your ref.  https://youtu.be/Iu-CT4_JW1w






Application





Specification


Model No.

AMC-E200T

Tracking Camera

Image Sensor

1/2.8" Exmor CMOS, 2.14MP

Focal

3.9mm - 46.8mm

IRIS

F1.6 - F2.8

Zoom

Optical: 12X, Digital: 12X

Field of View

72.5°  - 6.3°

Focus

Auto, Manual, PTZ Trigger AF, One push

Min.Illumination

0.5Lux(Color), 0.1Lux(B/W)

Shutter Speed

1/1 - 1/10,000s

AGC

Auto/Manual

S/N Ratio

Above 50dB

White Balance

Auto, Indoor, Outdoor, One push, Manual, Auto Track

AE Control

Auto, Manual, Shutter Priority, Iris priority

Full View Camera

Image Sensor

1/2.8" CMOS

Effective Pixel

2.14MP

White Balance

Auto

Exposure

Auto

Lens

Manual Fixed Focus

Field of View

Horizontal: 86°; Vertical: 52°

Focus

2.4mm

Pan & Tilt

Pan Range

 -170°  - +170°

Tilt Range

  -30°  - +90°

Pan Speed

  0.1°  - +120°/s

Tilt Speed

  0.1°  - +90°/s

Preset Number

256

Control Interface

RS-232/RS-485/USB3.0

Ethernet

RJ45, 100M

Control Protocol

PELCO-D / VISCA / UVC

Network

Image Resolution

1920 x 1080 @ 60fps

Video Compression

H.264

Audio Compression

AAC

Protocol

RTMP / RTSP / TCP / UDP / ONVIF

Dual stream

Support

Simultaneous Users

Up to 10 users

Video Interface

3G-SDI / DVI-D / USB3.0

Video Format

1080p60/1080p50/1080p30/1080p25/1080i60/1080i50/720p60/720p50

General

Power Supply

DC12V

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +60°C

Dimension

243mm x 145mm x 263mm

Weight

1.2KG
