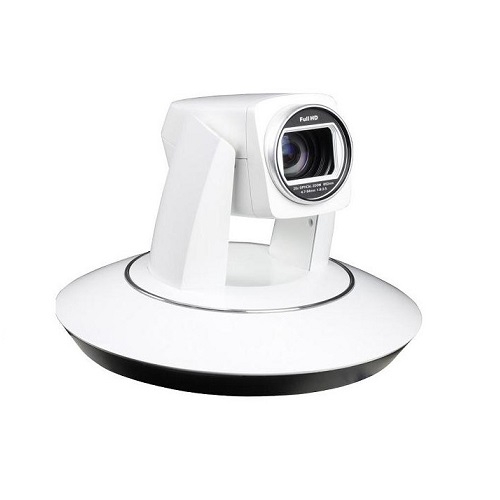

Professional Live Steaming Robotic 3G-SDI PTZ Video Camera for Broadcast

AMC-S3003 Robotic PTZ Camera are designed for professional broacasting, 30X optical zoom, low lux with high image perfermance, remoter controller and easy installed with low cost, AMC-S3003 PTZ Camera in livesteaming as part of live steaming solution
  • item no.:

    AMC-S3003
  • payment:

    EXW Factory
  • product origin:

    China
  • color:

    Gray/White
  • lead time:

    7
  • Description
  • Information

Features


※ 1/2.8" EXMOR CMOS image sensor, up to 2.13MP
※ Simultaneously outputs of HD and SD videos
※ Video interface, DVI-I(for DVI-D, HDMI, YPbPr, VGA, 5-BNC etc.)HD-SDI
※ Control: RS-232 IN, RS-RS232OUT, RS-422/RS485
※ On-screen display menu with simple program

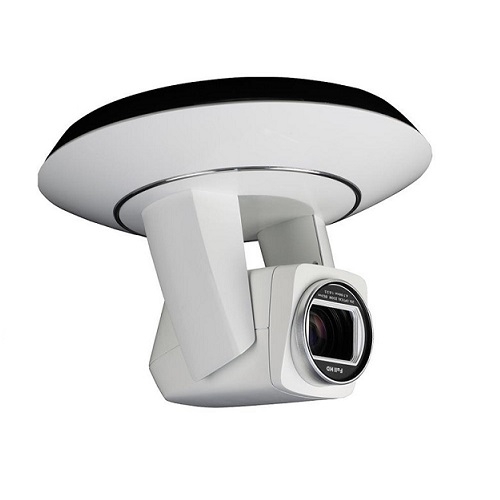

※ Has image flip function for stand and suspended installations
※ On-screen display menu with simple program
※ Has image flip function for stand and suspended installations
※ Support VISCA protocols, daisy chian

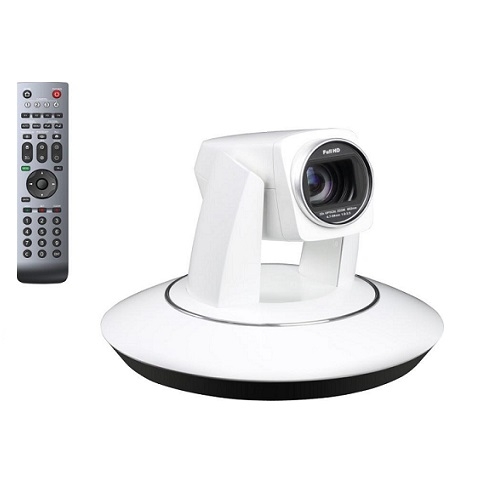

※ Come with IR remote controller
※ New design of PTZ mechanism with higher precision and reliability


Dimensional Drawing



Accessories



AMC-S3003 Application on broadcast




Model No.

AMC-AS3003

Image Sensor

1/2.8" Exmor CMOS, 2.13MP

HD Signal Format

1080p/60,1080p/30,1080i/60,720p/60,720p/30,

1080p/50,1080p/25,1080i/50,720p/50,720p/25
1080i/59.94,720p/59.94,1080p/29.97,720p/29.97

Focal

f = 4.3mm - 129mm

IRIS

F1.6 - F4.8

Zoom

Optical:30X, Digital:12X

Shortest Focus Distance

10 mm - 1,000mm

Field of View

63.7°  - 2.3°

Focus

Auto, Manual, PTZ Trigger AF, One push

Min.Illumination

0.01Lux(Color), 0.0015Lux(B/W)

Shutter Speed

1/1 - 1/10,000s

AGC

Auto/Manual

BLC

Auto, Indoor, Outdoor, One push, Manual, Auto Track

AE Control

Auto, Manual, Shutter Priority, Aperture priority

S/N Ratio

Above 50dB

PTZ

Pan Range

 -170°  - +170°

Tilt Range

  -30°  - +90°

Pan Speed

  0.1°  - +120°/s

Tilt Speed

  0.1°  - +90°/s

Preset Number

256

OSD

Yes

Image Flip

Yes

Interface

HD Video Output Interface

DVI-I(for DVI-D,HDMI, YPbPr, VGA,5-BNC),HD-SDI

SD Video Output Interface

CVBS

Control Interface

RS-232IN, RS232-OUT, RS422/RS485

General

Protocol

VISCA and Support Daisy Chain, PELCO-D, PELCO-P

Power Supply

DC12V

Spectra Address

0 - 63

Power Consumption

Below 15W

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +60°C

Dimension

226mm x 159mm x 206mm

Weight

1.7KG

Color

Grey/White
