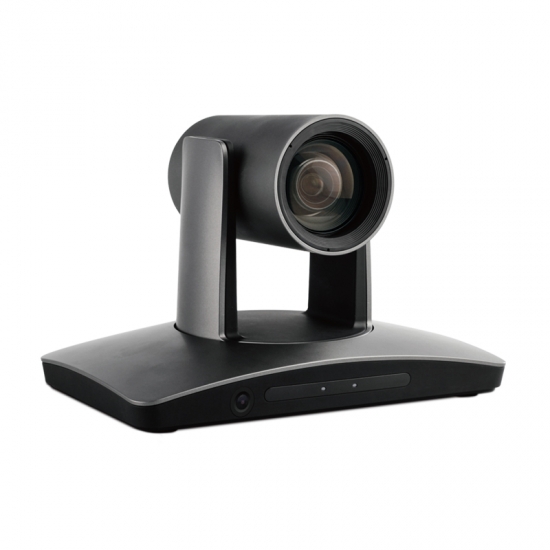

AMC E IP + SDI 12X HD PTZ Video Conference Camera

AMC E IP+SDI 12X HD PTZ Camera AMC-E200N is a 12x professinal grade Full HD IP PTZ Video Camera, support IP,SDI and USB 3.0 simultaneously output, support TF card, ideal for broadcast, video production, live event.Professional AV solution,ideo conferencing & telemedicine application.
  • item no.:

    AMC-E200N
  • product origin:

    China
  • color:

    Gray
  • Description
  • Information

Feature


※ H.265 video compression,dual stream
※ Compatible with ONVIF,RTSP.RTMP protocols
※ 72.5°FOV,12X Optacal zoom,12X digital zoom
※ With OSD menu,support image flip
※ Come with IR remote comtroller
※ Support standard VISCA & Pelco communication protocols
※ RS232IN/IR RS232OUT/RS485 control interface,support daisy chain,
※ Special mechanical PTZ driving system,ensure precise positioning



Dimension

Specification

Model No.

AMC-E200N

Image Sensor

1/2.8" Exmor CMOS, 2.14MP

Video Standard(HD)

1080p/60,1080/30,1080i/60,720p/60,720p/30,1080p/50,1080p/25,1080i/50,720p/50,720p/25

Focal

f = .3.9mm -46.8mm

IRIS

F1.6 - F2.8

Zoom

Optical: 12X, Digital: 12X

Field of View

72.5°  - 6.3°

Focus

Auto, Manual, PTZ Trigger AF, One push

Min.Illumination

0.5Lux(Color), 0.1Lux(B/W)

Shutter Speed

1/1 - 1/10,000s

AGC

Auto/Manual

White Balance

Auto, Indoor, Outdoor, One push, Manual, Automatic tracking, Sodium, Fluorescent

AE Control

Auto, Manual, Shutter Priority, Iris Priority,Intelligence

BLC

Yes

WDR

Yes

Noise Reduction

2D/3D

PTZ

Pan Range

 -170°  - +170°

Tilt Range

  -30°  - +90°

Pan Speed

  0.1°  - +120°/s

Tilt Speed

  0.1°  - +80°/s

Preset Number

256

OSD

Yes

Image Flip

Yes

Network

Max,Image Size

1920x1080 @60fps

Frame Rate

HD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080)

Video Compression

H.265,H.264

Audio Compression

AAC

Protocol

HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF

Dual Stream

Support

Simultaneous Users

up to 10 users

Interface

HD Video Output Interface

DVI-D,HD-SDI

Control Interface

RS-232IN/IR, RS-232OUT/RS-485

Ethernet

RJ45,100M

General

Control Protocol

VISCA and Support Daisy Chain, PELCO-D, PELCO-P

Address

0 - 63

Power Supply

DC12V

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +60°C

Dimension

243mm x 145mm x 163mm

Weight

1.2KG

Color

Grey
