4K UHD Wide Angle EPZ Camera

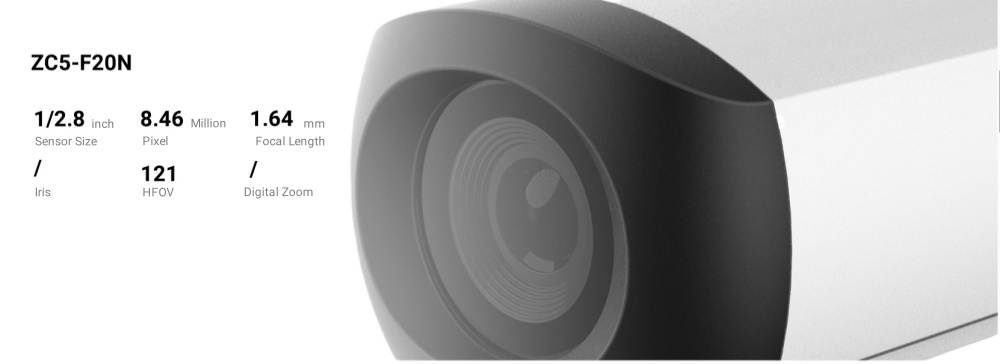

WINSAFE ZC5-F20N is 4K UHD EPTZ with 1/2.8" CMOS sensor, 8.46MP, 121 degree, enable to frame more with no distortion

contact now download

Features

※ 1/2.8" CMOS sensor, 8.46MP

※ 121°HFOV, enable to frame more, with no distortion

※ Support EPTZ

※ Video resolution up to 4KP30, H.265/H.264 video compression

※ With OSD menu

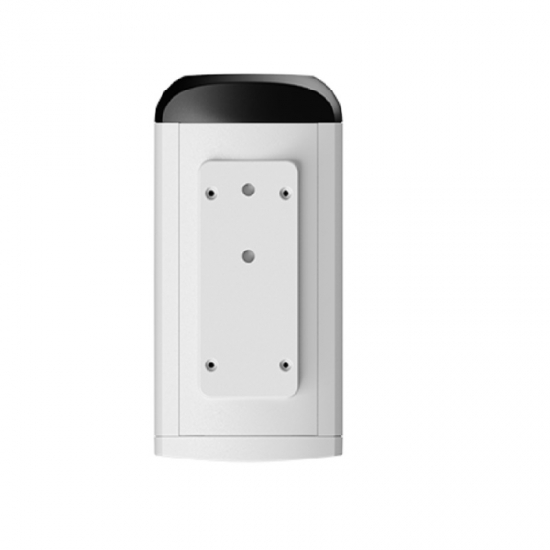

※ Support stand and ceiling installation

※ POE supported

※ Support student locating.

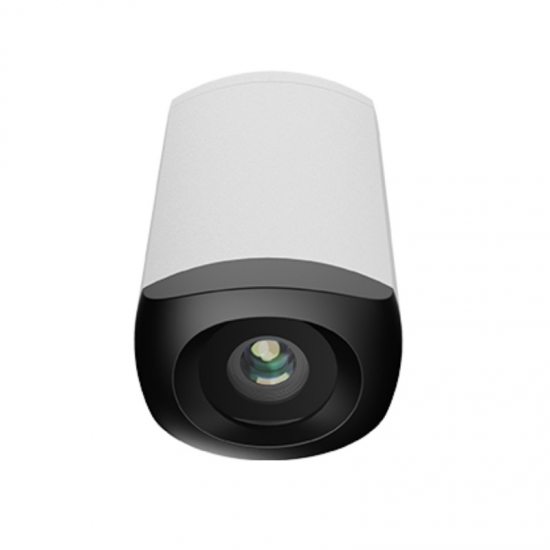

UHD Lens

Ultra High Definition Lens Gives You a Higher-Definition Vision

High Definition Image

The Camera gives you clear vision of the scenarios at 5K resolution

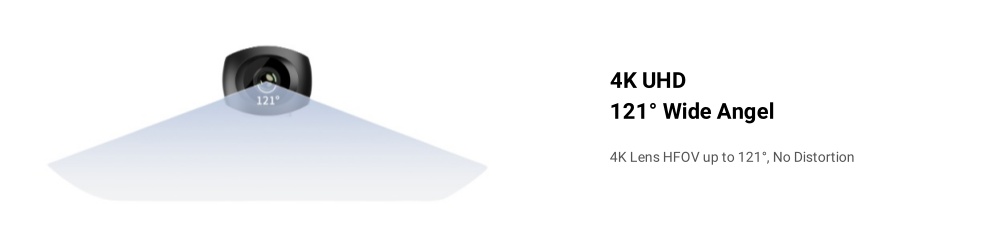

Wide-Angle Lens

To Cover More Space of the Scenario

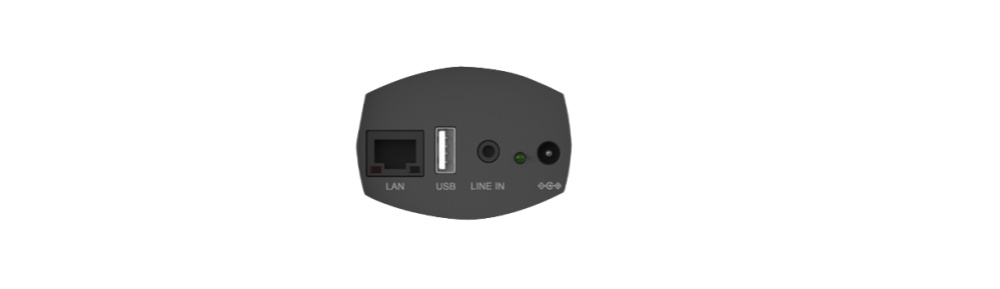

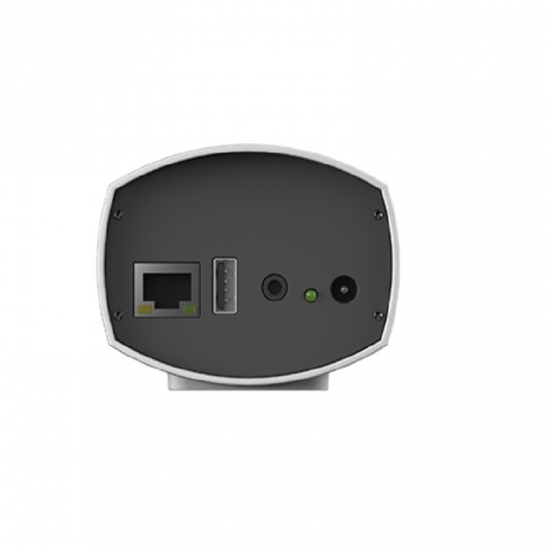

Interface

Support USB2.0, LAN

Application

Conference/Education

Model No.	ZC5-F20N
Image Sensor
Image Sensor	1/2.8" CMOS, 8.46MP
Focal Length	f = 1.64mm
Iris	F=2.4
HFOV	Horizontal:121°
Shutter Speed	1/60 - 1/10,000s
AGC	Auto, Manual
White Balance	Auto, Manual, One Push
AE Control	Auto, Manual, Shutter Priority
Interface
Network	RJ45(10m/100m), optional POE 1. Up to 4KP30 main steam: 1080P30/P25, 720P30/P25, 360P30/P25, sub steam: 4KP30P25, 1080P30/P25,720P30/P25, 360P30/P25 2. Image compression H.264/H.265 3. Support HTTP/TCP/UDP/RTSP/RTMP/ONVIF 4. Support AAC 5. Browser access supported
USB2.0	1. Support UVC 2. Image compression H.264/H.265/MJPEG, support 4KP30/P25, 1080P30/P25, 720P30/P25, 360P30/P25. Platform OS: Windows 7/8/10, Mac OS, Android OS
Audio Interface	1 x LINE IN
General
Control Protocol	VISCA
Power	DC12V, <5W
Address	0 - 63
Operating Temperature	Temperature: 0°C - +40°C
Storage Environment	Temperature: -20°C - +60°C
Dimension(WxDxH)	149mm x 76mm x 58mm
Weight	0.5kg
