Enabling a Safer Society and Smarter Living

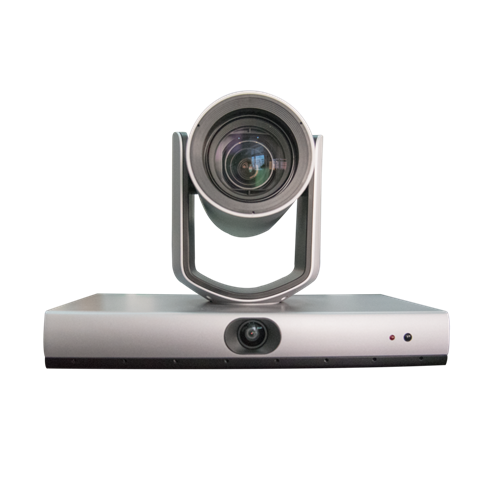

Speaker Tracking Camera

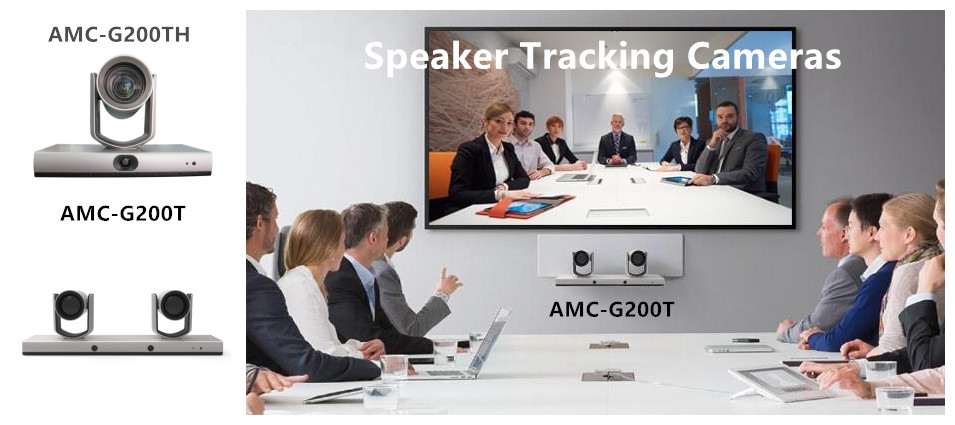

AMC-G200TH speaker tracking camera helps to achieve intelligent meeting experience, implemented with both audio positioning and intelligent video analysis technologies. It can automatically switch between close-up image and full-view image to frame the speaker(s). It frees of camera operation during a meeting and enables meeting attendees to focus more on discussion.
  • item no.:

    AMC-G200TH
  • payment:

    T/T
  • product origin:

    China
  • color:

    Gray
  • lead time:

    3
  • Description
  • Information

Features


※ 1/2.8" Exmor CMOS, 2MP
※ 12x optical zoom, up to 72.5 degree FOV
※ Simultaneously output 3G-SDI, HDMI, USB2.0, Ethernet, up to 1080P60 resolution
※ Support H.264/H.265 video compression
※ Implemented with both audio positioning, body detection and recognition technologies, it can precisely frame the speakers, support AEC
※ Automatically switch between close-up image for speaker(s) and wide-angle image for all attendees
※ Built-in switch rules according to actual meeting scenes


Model No.

AMC-G200TH

Image Sensor

1/2.8" Exmor CMOS, 2 MP

Video Standard(HD)

1080p60,1080p50,1080p/30,1080p/25,1080i/60,1080i50,720p/60,720p/50

Focal

f = 3.9mm - 46.8mm

IRIS

F1.6 - F2.8

Zoom

Optical: 12X, Digital: 12X

Field of View

72.5°  - 6.3°

Focus

Auto, Manual, PTZ Trigger AF, One push

Min.Illumination

0.5Lux(Color), 0.1Lux(B/W)

Shutter Speed

1/25 - 1/10,000s

AGC

Auto/Manual

White Balance

Auto, Indoor, Outdoor, One push,Manual, Auto Track

AE Control

Auto, Manual, Shutter Priority, Iris Priority

S/N Ratio

Above 50dB

DNR

2D/3D

BLC

Support

Full-View Camera

Image Sensor

1/2.5" 4K CMOS, 8.57MP, 2.8mm

Lens

Prime lens, 4X Digital Zoom

Field of View

98°

Video Adjustments

Support EPTZ

PTZ

Pan/Tilt Range

 -90°  - +90°; -30°  - +90°

Preset Number

64

Network

Max,Image Size

1920x1080 @ 60fps

Video Compression

H.265,H.264

Audio Compression

AAC

Protocol

HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF

Steam

Support 1 Tracking, 1 Full-view, 1 Switching, three steams in total

Interface

Video Output
Audio Input

1 x HDMI interface, 1 x 3G-SDI Interface, 2 x LINE IN, including one channel with EC

Audio Output

1 x Line out

Network Interface

1 x 10M/100M

USB Interface

1 x USB2.0, Support UVC/UAC

Control Interface

1 x RS-232

General

Control Protocol

VISCA

Address

1 - 6

Power Supply

DC12V

Power Consumption

Below 20W

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +60°C

Dimension

245mm x 145mm x 165mm

Weight

Below 2kg
