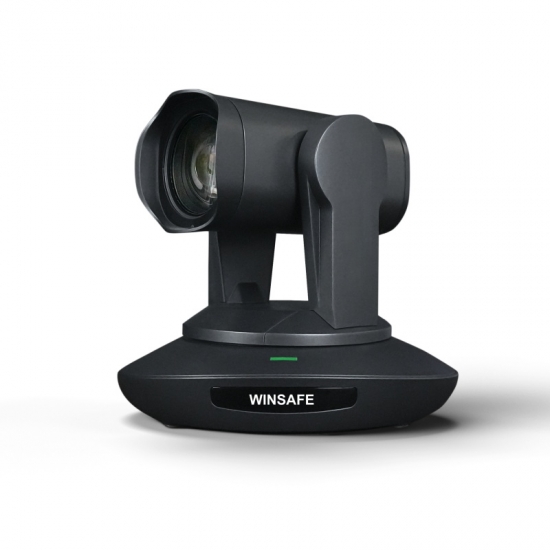

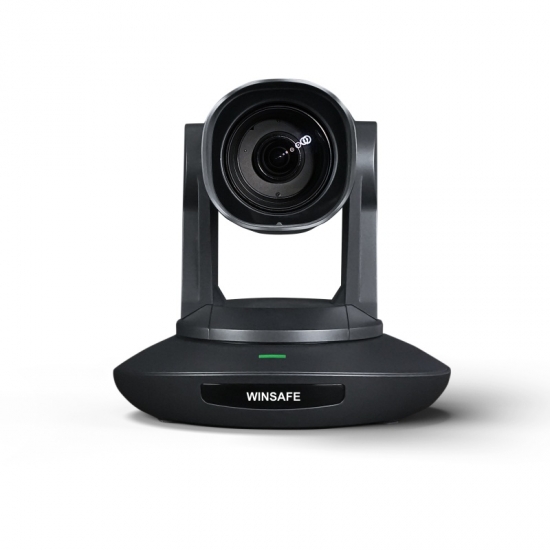

1080P 30X Auto Tracking PTZ Camera for Church

Lower Latency, Better Image 20X Auto tracking ptz camera UHV-30X-A .The camera featuring the latest NDI® SDK for IP connectivity and the most advanced American image processing solution to deliver crystal clear high definition images.
Its advanced PTZ mechanical design enables smooth and accurate pan, tilt, and zoom movements. Its versatile NDI®HX3, HDMI, SDI, and USB2.0 connectivity output 1080p60 Full HD resolution, ideal for professional live streaming applications. Line in audio input can be combined and output simultaneously with video over NDI®HX3, HDMI2.0 and 3G-SDI.With 30X optical zoom available, the Vision+ N3 can fit seamlessly into any production scenario.

item no.:
UHV-30X-A
payment:
T/T
product origin:
China
color:
Black/White
shipping port:
Shenzhen
lead time：
5

contact now

Description
Information
Downloads

Feature & Benefits

1080P60 FHD Resolution

Equipped with preminum image processing solution and Sony HD CMOS sensor, FHD and crystal-clear images evein low-light working enviroments.

Built-in Auto Tracking function

With built-in auto-tracking function, users can track targets, switch targets and set target areeas, or adjust target size effortlessly without any third party software device.

30X Optical Zoom

It features a 30x optical zoom lens with 60 degree FOV and proprietary focusing algorithm for precise focus even during zoom or movement, capturing every detail.

FreeD

With FreeD technology for versatile shooting angles, idal for both real-world and virtual applications.

NDI®HX3/3G-SDI/HDMI/USB 2.0 Available

In addition to NDI@HX3, it simultaneously outputs images via 3G-SDI, HDMI and USB2.0, 3G-SDI and HDMI are for transtional video production, while the USB output can function as a high-end webcam.

Model No.	UHV-30X-A(NDI)
Camera
Sensor	1/1.8", 9MP UHD CMOS sensor
Zoom	30x optical zoom
Lens	f = 6.91mm - 214.64mm, F1.35 - F4.6
Horizontal View Angle	63°(Wide) - 2.1°(Tele)
Vertical viewing angle	34.14° - 1.12°
Diagonal viewing angle	67.08° - 2.27°
Minimum Working Distance	1.5m
S/N Ratio	≥50dB
Video Format	HDMl: 19201080P60/50/30/25/59.94/29.97/24/23.98; 19201080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
	NDl®HX3: Main Stream: 19201080@15~60; 1280720@15~60; 1024576@15~60; Sub Stream: 640360@15~30
	3G-SDI: 19201080P60/50/30/25/59.94/29.97/24/23.98; 19201080I60/50/59.94; 1280*720P60/50/30/25/59.94/29.97
	USB Type-C: NV12: 19201080p5; 1280720p15; 1024576P25; 800448P30; YUYV: 19201080p5; 1280720pl0; 1024576P15; 800448P30; MJPG: 19201080P30; 1280720P30; 1024576P30; 800448P30; H264/HEVC: 19201080P30; 1280720P30; 1024576P30; 800448P30
Image Parameters
Noise Reduction	2D & 3D
Minimum Lux	30x:0.5Lux(50 ire max agc,1/30,f1.8)
White Balance	Auto/Manual/ATW/Push/Indoor/Outdoor/Color Temperature
Exposure	Auto/Manual/Shutter Priority/Iris Priority/Brightness Priority
Anti-Flicker	OFF, 50Hz, 60Hz
Image Flip	Supported
Mirroring	Supported
Focus	Auto/Manul
Iris	Auto/Manual
Electronic-shutter	Auto/Manual
Gamma	Supported
Backlight Compensation	Supported
IP Steaming
Video Encoding	H.264/H.265
Bitrate Control	Variable bitrate(VBR), Constant bitrate(CBR)
Bitrate Range	1024Kbps - 122800Kbps
Network Port Speed	1000M
Protocol	NDI®HX3, SRT, HTTP, HTTPS, RTSP, RTMP, RTMPS, ONVIF, VISCA over IP(TCP&UDP), VISCA, PELCO P/D, SSDP, FreeD, NTP, RTP Multicast, WebRTC, MPEG-TS
Pan/Tile Movement
Preset	Remote controller:10; Serial port: 256, Accuracy:0.1°
Pan Rotation Angle	-170°~+170°
Tilt Rotation Angle	-30°~+90°
Pan Rotation Speed	30x :0.1° - 80°/s
Tilt Rotation Speed	30x :0.1° - 60°/s
I/O Interface
Control Port	RS232(RS485), NDI@HX3
Video Port	NDI @ HX3, HDMI, 3G-SDI, USB Type-C
Audio Port	stereo 3.5mm linear inputs
Tally	Supported
POE+	Supported
Daisy Chain	Supported
General
Input Voltage	DC12V, POE+(IEEE802.3at)
Operating Temperature	-10℃~50℃
Operating Humidity	≤80%
Color	Black/White
Dimension（L×W×H）	30x: 220mm×190mm×193.5mm
Net Weight	30x: 1.9kg(4.2LBS)
