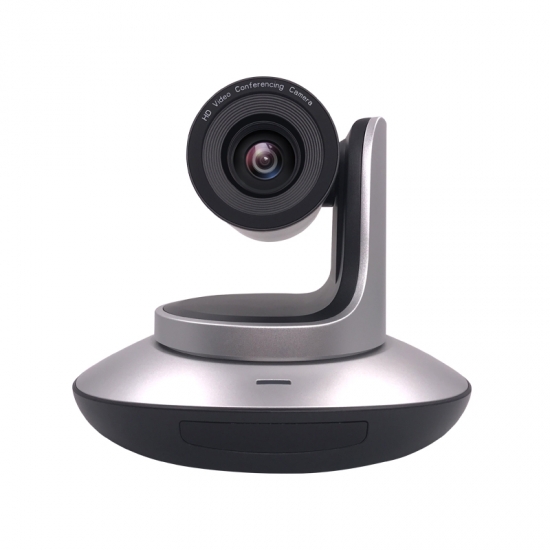

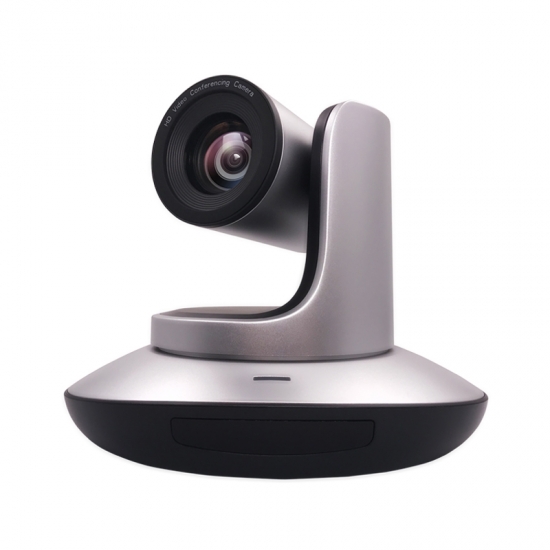

UHV 12X HD SDI Wide Angle Broadcasting PTZ Video Camera

Professional grade 3G-SDI & HDMI high end 12x PTZ video camera/UHV-12X-S, particularly used for A/V system, video distribution in live-event, broadcast, lecture capture. It brings users stunning image, smooth movement and easy control.
  • item no.:

    UHV-12X-S
  • Description
  • Information

Advantages

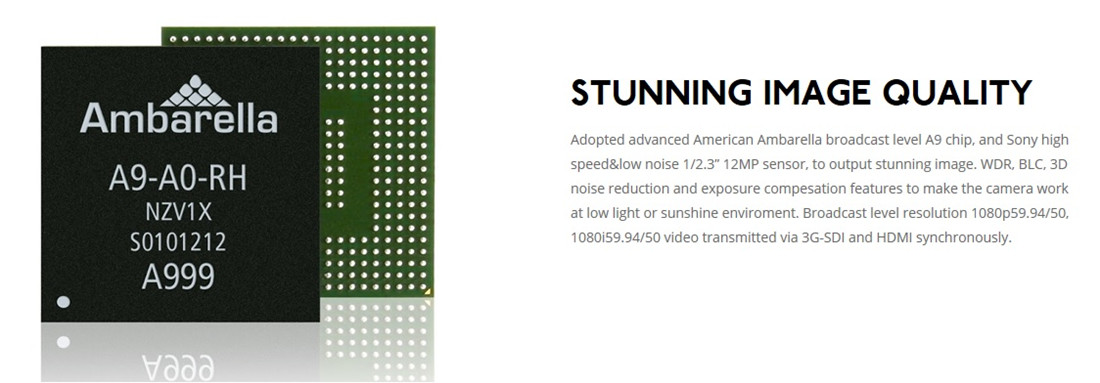

※ Super high video quality: with Ambarella A9 DSP 1/2.3" 12MP Sensor and high quality 12x lens
※ Fast switching between different video formats: only 3 senconds needed
※ Fast and accurate focus performance
※ Easy firmware upgrade: no need to open the camera housing
※ Daisy Chain function: with both Visca in and Visca out port
※ With powerful functional remote controller
※ Multi language OSD menu: support English, Chines, Russia, Spanish
※ 2 years warranty time


Features


※ 3G-SDI & DVI-I simultaneously output
※ Zoom: 12X optical Zoom +2X Digital Zoom
※ 1920x1080p 59.94fps high resolution
※ 72.5° ultra wide FOV
※ Ultra smooth PTZ mechanism
※ Accurate PT motro control
※ Up to 128 presets
※ Effective RS232/RS485 seria control
※ Effective 3D-noise reduction function
※ Image flip function support upside-down installation
※ Mounts: Wall mount & in-ceilling mount available
※ Sony Visca and Pelco D/P protocol controls


Model No.

UHV-12X-S

Sensor

1/2.3 inch high quality, 12MP HD CMOS Sensor

Video System

DVI Port

3G-SDI Port

CVBS port(optional)

1080p59.94/50/29.97/25;
720p59.94/50/29.97/25

1080p59.94/50/29.97/25;
720p59.94/50/29.97/25

Analog Video

Zoom

12x optical zoom + 2x digital zoom

View Angle

6.3°(wide)  - 72.5°(tele)

Pan Rotation Angle

- 170° - +170°

Tilt Roation Angle

- 30°  - + 90°

Pan Rotation Speed

0°  - 120° /s

Tilt Rotation Speed

0°  -  80° /s

Preset

128

Control Port

RS232/RS485

Video Port

DVI-I, 3G-SDI, CVBS

SNR

More than 50dB

Focal Length

f=3.92(wide) - 47.32mm(tele)

Minimum Lux

0.01Lux

White Balance

Auto/Manual

Focus

Auto/Manual

Iris

Auto/Manual

Electronic Shutter

Auto/Manual

BLC

Auto/Manual

Input Voltage

DC12V

Dimension(W x H x W)

220mm x 173mm x 117mm

Net Weight

1.25KG
