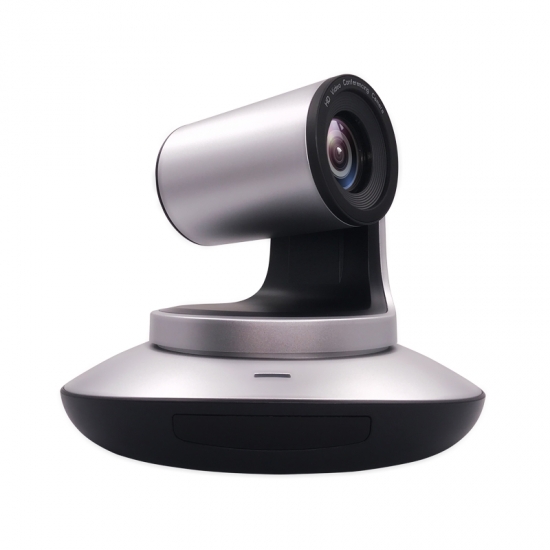

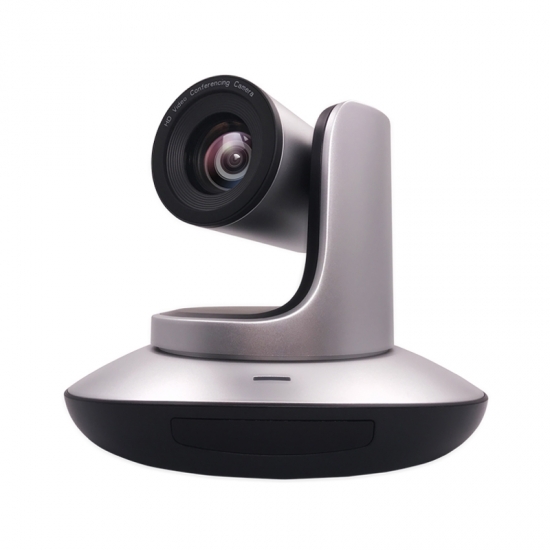

30X 3G-SDI&DVI-I(HDMI) Full HD PTZ Video Camera

WINSAFE UHV-30X-S-R is a real broadcast level 30x zoom 3G-SDI&HDMI full HD PTZ Video Camera, very sensitive to low lux, particularly used for large space A/V system, such as auditorium, parliament, house of worship, court room, legislative space and broadcast video prodution etc.
  • item no.:

    UHV-30X-S-R
  • payment:

    EXW
  • product origin:

    China
  • color:

    Black Sliver White
  • lead time:

    5
  • Description
  • Information

Feature


※ Adopt advanced broadcast level ISP, Sony 1/1.8" 12MP sensor, to provide crystal clear, noiseless and realistic color with full details even at completely low lux condition
※ Broadcast level video steaming 1080p59.94/50, 1080i/50 via 3G-SDI and DVI-I(HDMI) synchronously
※ 30x wide range optical zoom, with 60 degree FOV.
※ Smart and compact mechanism, smooth and silent PTZ movement
※ RS232, RS485 control and field firmware update
※ Precise and fast focus, support 128 presets
※ 7 cameras daisy chain supported
※ Available to install on desk, monitor, tripod or up-side down in-ceiling
※ Multi language available: Chinese, English, Spanish, Russia


Model No.

UHV-30X-S-R

Camera

Sensor

1/1.8" inch high quality 12MP HD CMOS sensor

Frame Rate

DVI-I(HDMI) port

3G-SDI port

1080p59.94/50;1080p29.97/25
1080i59.94/50
720p29.97/25

1080p59.94/50;1080p29.97/25
1080i59.94/50
720p59.94/50
720p29.97/25

Video Format

YUV

Lens Zoom

30X optical zoom

Focal Length

f=4.7(wide) - 135mm(tele)

View Angle

3°(wide)  -  60°(tele)

Noise Reduction

2D/3D

Minimum Lux

0.005Lux(DDS ON)

White Balance

Auto/Manual

Focus

Auto/Manual

Iris

Auto/Manual

Electronic Shutter

Auto/Manual

BLC

Auto/Manual

Mechanism

0.2Lux(Day), 0.1Lux(Night), 0.005Lux(DSS on)

Pan Rotation Angle

 -170° - + 170°

Tilt Rotation Angle

 -35° - +90°

Pan Rotation Speed

0° - 120°/s

Tilt Rotation Speed

0 - 80°/s

Preset

128 presets via RS232, 10 presets via remote controller

Control

RS232/RS485/Remote Controller

Video Port

DVI-I, 3G-SDI

Input voltae

DC12V

Camera Dimension

220mm x 173mm x 117mm

Package Dimention

32cm x  30cm x 31cm

Package Content

Camera, Remote Controller, RS232 cable, Power Supply
