1080P 20X HDMI, 3G-SDI, USB 3.0 IP PTZ Video Camera

AMC-G310/312/320 Series 1080P HD Camera implements the latest spu and sensor to output high quality images through its various interfaces, making it a perfect camera for different applications.
  • item no.:

    AMC-G310/312/320
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • color:

    Sliver
  • shipping port:

    Shenzhen
  • lead time:

    5
  • Description
  • Information
  • Downloads

1080P HD PTZ Video Camera




HD Camera


* 1/2.8" CMOS, 2.14MP, excellent 1080P video quality
* Quick focus to ensure superb clarity
* High color reproduction, presenting real and vivid color with more details
* Maximum 320x zoom




 Rich Interfaces


* HDMI, USB3.0, 3G-SDI, and Ethernet video outputs
* RS232 in and RS232 out, daisy chain ready




Compact Design


* Small sized design, easy for installation
* Compact remote control with comfortable user experience

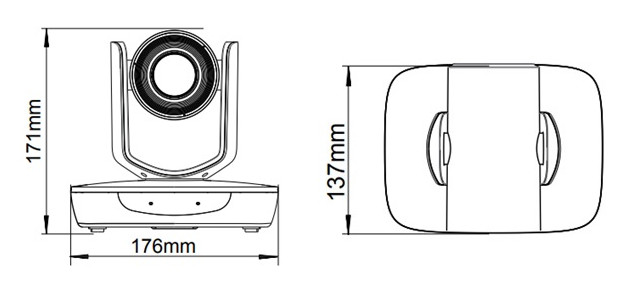

Dimensions

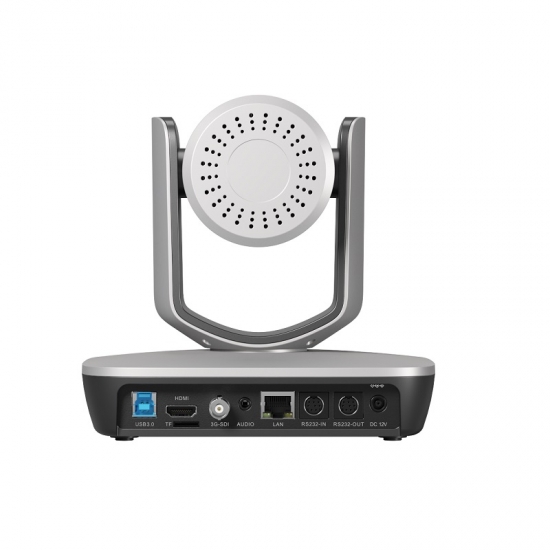

Interface


Model

AMC-G310

AMC-G312

AMC-G320

Image Sensor

1/2.8" CMOS, 2.14MP

Focal Lens

4.3mm - 43mm

4.14mm - 47.08mm

4.7mm - 94mm

Iris

F1.6 - F3.0

F1.6 - F2.8

F1.6 -F3.5

Field of View

69° - 8°

72.5° - 6.3°

59.5° - 2.9°

Optical Zoom

10X

12X

20X

Digital Zoom

16X

Focal System

Auto, Manual, PTZ Trigger, One Push Trigger

Exposure Control

Auto, Manual, Shutter Priority, Iris Priority, Bright Priority

Min.Illumination

1.0Lux

Shutter Speed

1/50 - 1/10,000s

Gain

Auto, Manual

White Balance

Auto, One Push, Manual, ATT, Static Color Temperature

WDR

Yes

BLC

Yes

S/N

Above 50dB

PTZ

Pan Angle

 -170° - +170°

Tilt Angle

  -30° - +90°

Pan Speed

0.1° - 120°/s

Tilt Speed

0.1° - 90°/s

Image Flip

Yes

Preset Number

256

Interface

HDMI

1 x HDMI Video Output: 1080P60/50/30/25, 720P60/50/30/25, 480P60/50

Network

1 x RJ45: 1 x 10M/100M RJ45(POE supported)
1. Video output format: max 1080P60
2. Image compression
H.264/H.265
3. Protocols: ONVIF/RTSP/RTMP/TCP/UDP
4. Audio compression: AAC
5. Support dual steams
6. Optional NDI
1 x USB3.0
1. Support UVC1.1
2. Video format support H.264/H.265/MJPEG, video resolution:1080P60/50/30/25, 720P60/50/30/25
Support YUY2/NV12, video solution: 1080P30/25, 720P30/P25
3. UVC Audio frmat PCM

3G-SDI

1 x 3G-SDI, video format: 1080P60/50/30/25, 720P60/50/30/25

Audio Input

1 x LINE IN, 3.5mm

Control Interface

1 x RS232 In, 1 x RS232 Out/RS485

Storage Interface

Max. 256G

General

Protocols

VISCA(support daisy chain) / PELCO-P / PELCO-D

Power

DC12V

Power Consumption

Below 15W

Operating Environment

Temperature: 0°C - +40°C, Relative Humidity: 10%RH - 90%RH

Storage Environment

Temperature: -20°C - +60°C, Relative Humidity: 10%RH - 95%RH

Dimensions

176mm x 137mm x 171mm(WxHxD)

Weight

1.2kg
