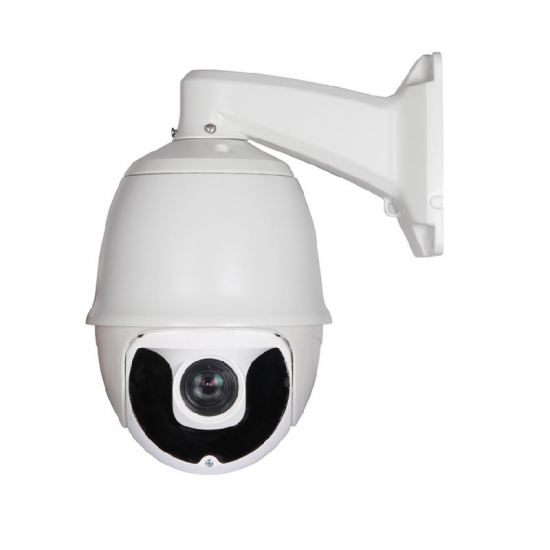

Outdoor IP P2P 240M Laser PTZ Speed Dome Cameras

WINSAFE  IP PTZ Camera 5MP Outdoor 240M Laser IP PTZ Camera are network cameras that can Pan, Tilt and Zoom to provide both wide-area coverage and great detail with a single camera, great image quality 2MP & 5MP optional.
  • item no.:

    WS-BTHD812
  • Description
  • Information

Feature


※ ONVIF2.4
 Support P2P function
 Optional function: Alarm,Audio,SD Card slot
 8pcs Array 42Mil LED, IR range up to 150M
 7" full metal body construction, IP66 rate protection
  Compatible with HIKVISION 、DAHUA、XM、Video park NVR .etc
Compatible with  CMS、UC2、Milestone、 NUUO and AXXON platform.etc
 Intelligent IR illumination & power consumption is variable, dependant the zoom factor

Specification


Model No.

WS-BTHD812

DSP

HI3516C

HI3516D

Sensor

IMX323(2.0MP)

AR0521(5.0MP)

HD Signal Format

HD:1080p/30fps1080p/25fps

2592*1944@15fps    2592*1944@22fps

Lens

f=4.7mm-94mm

f=4.7mm-94mm

Power

DC12/3A

Working Temperature

(-40℃~+60)

Consumption

15W

Voice intercom

Support

Tilt Rotation Range

0-93°

Pan Rotation Range

0-360°

Horizontal Rotation Speed

0-45°/s

Pan Rotation Speed

0-30°/s

Auto Flip

Support Horizontal 180°, Vertical 93°

IR Distance

240M

Led

4 PCS Laser led+11 PCS IR led

Inspection teams

3 groups( Max.16 points, dwell time user electable)

IR control

PWM

AB Scan position

User programmabel(scan speed 1-9 levels setting available)

Mechanical zero calibration

Support

Preset

220

Digital zoom

20X

Compression

H.264/H.265M-JPEG

Audio

G711PCM

Audio frequency

1 audio (Optional)

P2P

AndroidIphone

Protocol

TCP/IPHTTP NTPIGMP DHCPUDPSMTPRTPRTSPARPDDNSDNSPPPoEP2P

APP

Hisee

Software Control

IE, CMS, Management Platform

Compatibility

HIKVISION ,DAHUA, XM NVR , Milestone and AXXON platform

Network Safe

HTTPS802.1XIP ADDRESS FILTERING

Quick command

PELCO instruction set

Connector

RJ45

Quick instruction

PELCO

IP Code

IP66

Thunder Proof

Transient voltage 6000V

Size

 W310mm*D310mm*H440mm

Weight

N.W 2.95KG/G.W 4.5KG
