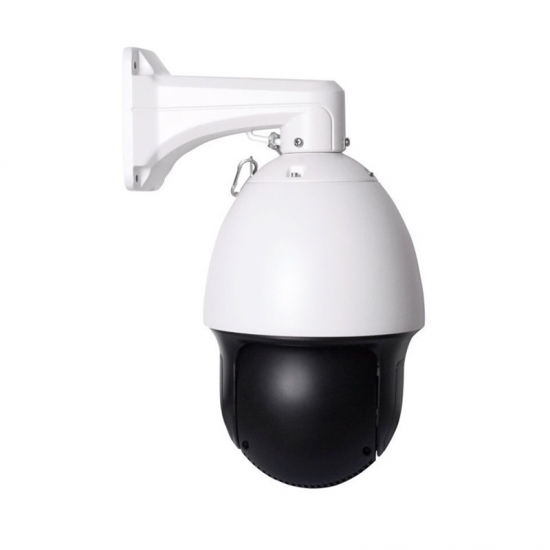

150M IR 7" Double Laser IP HD PTZ Camera

Model No.

WS-BT816

DSP

HI3516C

HI3516D

HI3516D

Sensor

1/3" Sony IMX323

1/3" AR0521

1/3" Panasonic34229

Pixel

200W

500W

200W

Resolution Ratio

1920*1080@25fps / 1920*1080@30fps

2592*1944@15fps / 2592*1944@22fps

1920*1080@25fps / 1920*1080@30fps

Lens

f=4.7mm-94mm

f=4.7mm-94mm

f=4.6mm-165mm

Optical Zoom

20X

20X

36X

Digital Zoom

10X

Min. illumination

Color: 0.1Lux\  B/W: 0.01Lux / IR ON:0 Lux

D/N

IR-CUT

AGC

Auto/manual

WB

Auto/manual/indoor/outdoor

S/N Ratio

≥50dB

Rotation Range

Pan: 0°~360°      Tilt: 0°~93°

Horizontal Rotation Speed

0.02°/s-45°/s

Tilt Rotation Speed

0.02°/s-30°/s

Auto Flip

Horizontal 180°, Vertical 93°

A-B Scan

User programmable

A-B Scan Speed

1-9 levels setting available

Communications Protocol

TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P

Software Control

IE, CMS, Management Platform

Network Security

HTTPS，802.1X、IP ADDRESS FILTERING

Quick Command

PELCO instruction set

Mobile View(optional)

Support android/ios smart phone

APP

Hisee

Video Compression

H.264/H.265/M-JPEG

Audio compression

G711,PCM

Audio Frequency

Optional

Dwell Preset

1-60s interval available

Preset Points

220

Go to Preset Speed

1-64 levels available

PWR On Action

Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None

Park Time

1-60mins available

Guard Tours

3 groups

Guard Points

Max.16 points, dwell time user selectable

Operation menu

English etc

Pan and Tilt position display

Support

Auto Control IR LED

PWM

LEDs

Array 42Mil, 3 pcs Laser led+6 pcs IR led

Lightning Protection

Transient voltage 6000V

IR distance

Up to 150 meters

Support ambient light detection

IR illumination on 1-9 grades selectable;

Operating temperature

Outdoor: -40°~ +60°

Operating Humidity

≤95% Non Condensing

Power

DC12V  3A

Consumption

≤15W

Ingress Protection

IP66

Packing Case Size

31cm x 31cm x 44cm/PCS(L*W*H)    /   64cm x 31cm x 45cm/2PCS (L*W*H)

Weight

N.W 5.6KG/G.W 7KG
