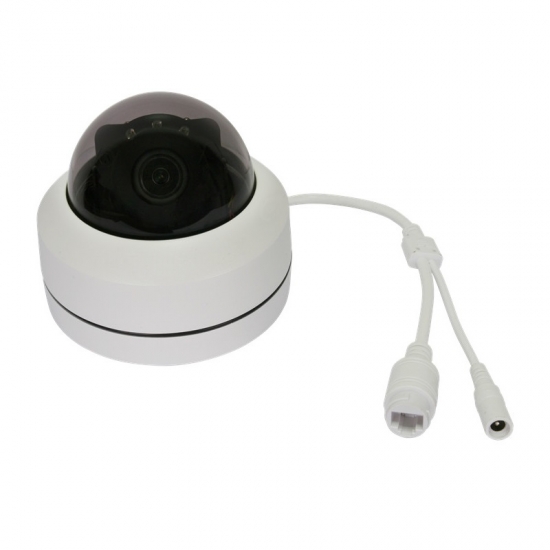

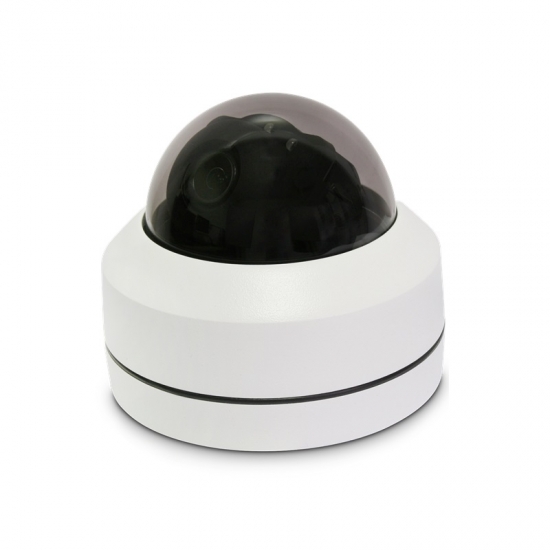

2.5" Mini 3X Optical Zoom IP PTZ Speed Dome Camera

2.5" Mini 3X Optical Zoom IP PTZ Speed Dome Camera can be widely used in the need for a wide range of high-definition quality monitoring sites, the use of scenarios: warehouse, underground parking, access, staircase, supermarkets, Internet cafes, etc.
  • item no.:

    WS-A01-W/P
  • Description
  • Information

Product  Overview



※ 2.0MP 1/3 Low illumination CMOS,3X optical zoom;
※ Support onvif protocol GB/T28281,work with Hikvision , dahua, XM
※ Support lightning protection, anti surge;

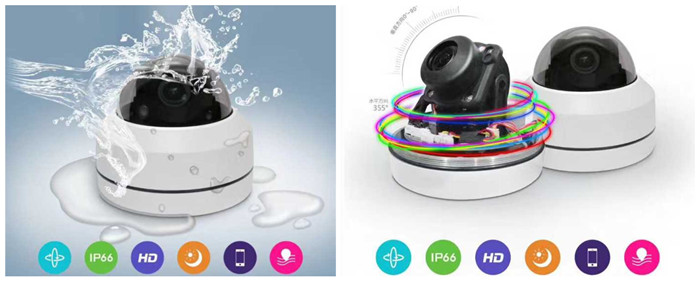

※ Outdoor speed dome camera protection grade:IP66;
※ Support Chinese and English IE interface and have operation tips function, user interface friendly



Feature



※ Adopt 3pcs infrared light, Effective exposure distance up to 20m
※ Horizontal rotation 355 ° continuous rotation, Vertical 0 ° -90 °, support automatic flip, no monitoring blind spot.
※ Pan speed max 25°/s,tilt speed max 20°/s
※ Pan speed 0°/s~25°/s,tilt speed 0°/s~20°/s,
※ Support 16 preset;1 patrols;1 patterns;support AB scan;
※ Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
※ Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity



Application



Can be widely used in the need for a wide range of high-definition quality monitoring sites, the use of scenarios: warehouse, underground parking, access, staircase, supermarkets, Internet cafes, etc.



Specification



Model No.

WS-A01-W/P

Image Sensor

1/2.9 CMOS

Resolution

1820 x 1080

Low illumination

Color: 0.2Lux @ F1.2; Black&White: 0.01Lux @ F1.2

Signal/Scan System

PAL/NTSC; Progressive

Electronic Shutter

Auto/Manual(1/5 - 1/50,000s)

Day&Night Mode

Auto ICR

Optical Zoom

2.8 - 8mm; 3X

Pan Angle

106.6° - 51.8°

IR Distance

20M

Pan Speed

Horizontal Rotation 355° continuous rotation; 0° - 25°/s

Tilt Speed

0 - 20°/s

Tilt Range

0° - 90°

Proportional zoom

Support, change the speed based on the zoom

Preset

16

Patrol

1

Pattern Scan

1

A.B Scan

Support

Park function

Support, preset, cruise, pattern scan, two-point line sweep, horizontal automatic

Max. image size

1920 x 1080

Output bit rate

32Kbps - 16Mbps

Video Compression

H.264/MJPEG

Network Protocol

TCP/IP, HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE, SMTP,NTP,UPnP

Interface Protocol

Onvif, Hikvision, XM, Jovision Personal Protocol

Network Interface

Built in RJ45 network interface, support 10M/100M IP DATA

Application Interface

Provide Linux, NindoNs SDK develop bag and CGI protocol, can be second fast developed

Browser

Support IE7, IE8,IE9, Chrome8+, Firefox3.5, Safari5+

PTZ Control Protocol

Pelco-D,Pelco-P, HIKVISION, DAHUA

Power Consumption

DC12V/1A, 10W(Max)

Working Team and Hum

 - 20°C - 60°C, below 90%RH(no frostless)

Protection Grade

TVS3000V lightning protection, surge protection and voltage transient protectioin, weather proof(for outdoor): IP66
