Enabling a Safer Society and Smarter Living

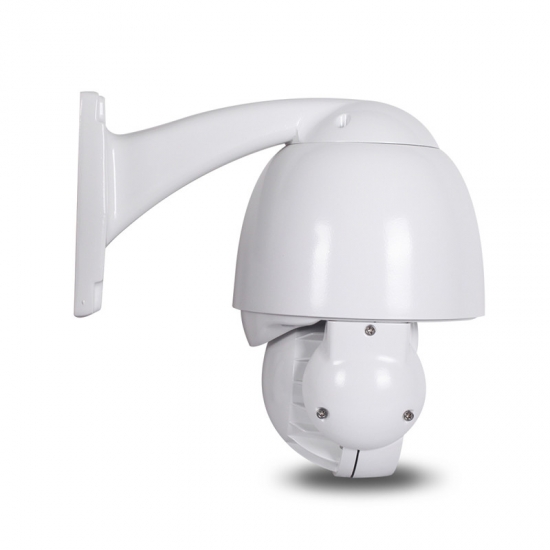

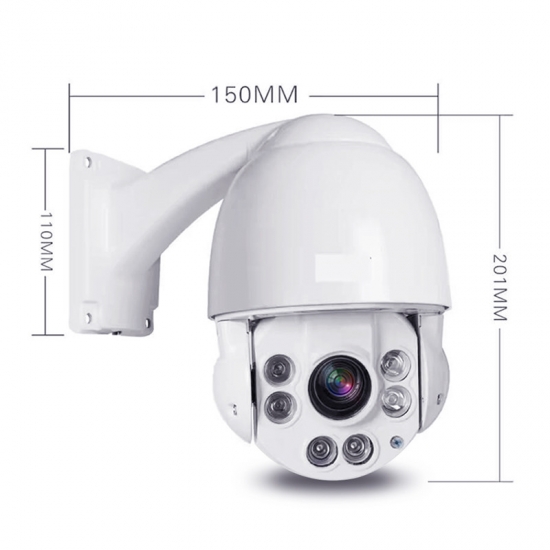

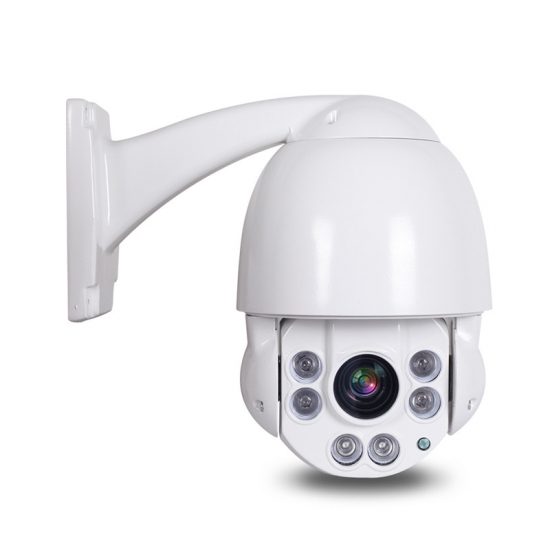

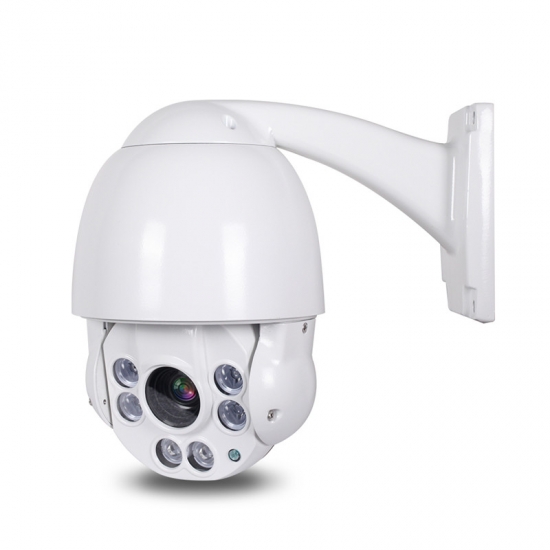

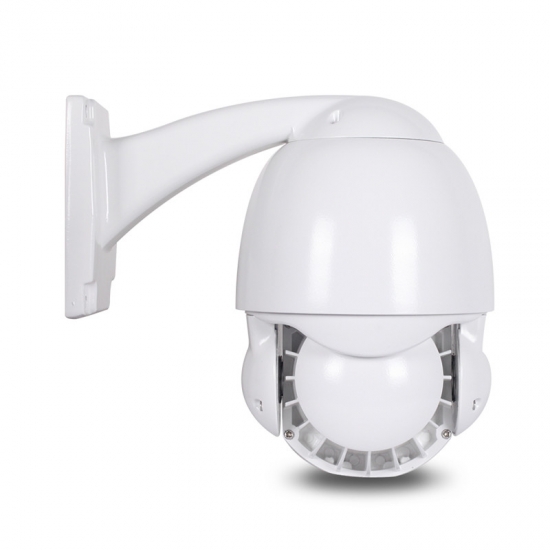

HD IP IR Medium Speed Dome Camera

IP PTZ Camera are network cameras that can Pan, Tilt and Zoom to provide both wide-area coverage and great detail with a single camera, great image quality 2MP & 5MP optional.
  • item no.:

    WS-BT51F-N
  • Description
  • Information

Feature

※ 4.5" double layer mental body construction, medium speed dome with OSD
※ 1/3" CMOS, 2.0/5.0 Megapixels,  10x optical zoom(5.1mm-51mm)
※ HD-IP digital interface output, 1080P high definition image
※ PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
※ IR distance 60M
※ Support P2P function
※ OSD menu is available
※ ONVIF2.2 compatible
※ Compatible with DAHUA , HIKVISION , XM and so on
※ Compatible with AXXON , Milstone , NUUO
※ Support OSD menu with multi-languages, UTC

Specification


Model No.

WS-BT51F-N

DSP

HI3516C

HI3516D

Sensor

1/3" Sony IMX323

1/3" AR0521

Pixel

200W

500W

Resolution Ratio

1920*1080@25fps / 1920*1080@30fps

2592*1944@15fps / 2592*1944@22fps

Lens

f=5.1mm-51mm

Optical Zoom

10X

Digital Zoom

10X

Min. illumination

Color: 0.1Lux\  B/W: 0.01Lux / IR ON:0 Lux

D/N

IR-CUT

AGC

Auto/manual

WB

Auto/manual/indoor/outdoor

S/N Ratio

≥50dBAGC OFF)

Rotation Range

Pan: 0°~360°      Tilt: 0°~93°

Horizontal Rotation Speed

0.02°/s-45°/s

Tilt Rotation Speed

0.02°/s-30°/s

Auto Flip

Horizontal 180°, Vertical 93°

A-B Scan

User programmable

A-B Scan Speed

1-9 levels setting available

Communications Protocol

TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P

Software Control

IE, CMS, Management Platform

Network Security

HTTPS802.1XIP ADDRESS FILTERING

Quick Command

PELCO instruction set

Mobile View(optional)

Support android/ios smart phone

APP

Hisee

Video Compression

H.264/H.265/M-JPEG

Audio compression

G711,PCM

Audio Frequency

Optional

Dwell Preset

1-60s interval available

Preset Points

220

Go to Preset Speed

1-64 levels available

PWR On Action

Memory/Tour 1/360° scan/A-B scan/Preset 1-8/None

Park Time

1-60mins available

Guard Tours

3 groups

Guard Points

Max.16 points, dwell time user selectable

Operation menu

English etc

Pan and Tilt position display

Support

Auto Control IR LED

PWM

LEDs

Array 42Mil, 6 pieces IR LED

Lightning Protection

Transient voltage 6000V

IR distance

Up to 60 meters

Support ambient light detection

IR illumination on 1-9 grades selectable;

Operating temperature

Outdoor: -40°~ +60°

Operating Humidity

≤95% Non Condensing

Power

DC12V  3A

Consumption

≤15W

Ingress Protection

IP66 (Outdoor)

Packing Case Size

30.5cm x 28cm x 20.5cm/PCS(L*W*H)    /   60cm x 34cm x 43cm/4PCS (L*W*H)

Weight

N.W 2.51KG/G.W 4.5KG
