Enabling a Safer Society and Smarter Living

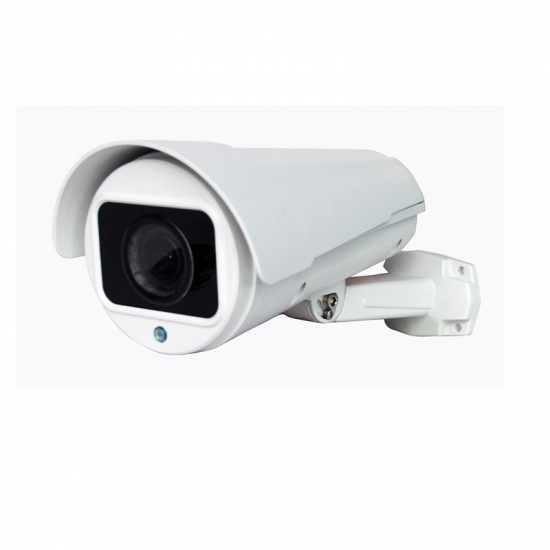

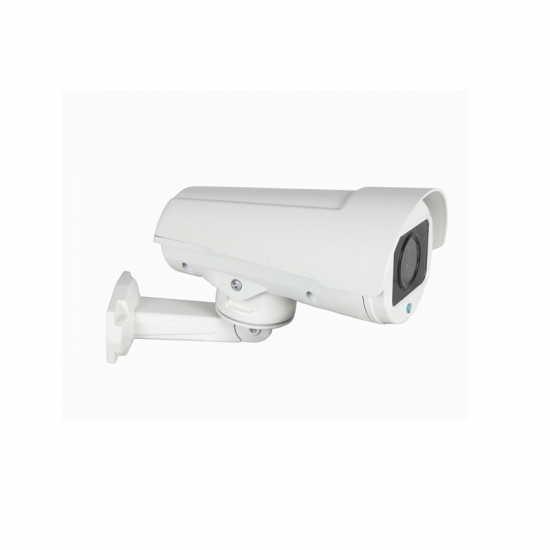

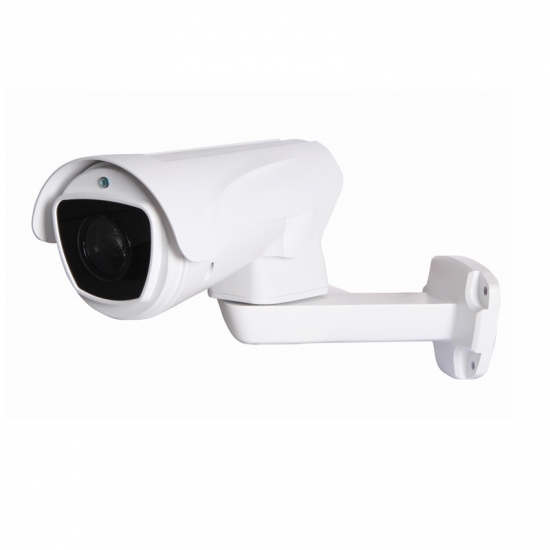

Outdoor HD 2MP Pan Tilt IR Bullet IP Camera

2MP 4X/10X Pan Tilt IR bullet IP Camera metal housing, IP66, A-B scan, tour available, support audio, POE optional, IR Distance 30M, support P2P function are good used on outdoor security.
  • item no.:

    WS-BT345
  • Description
  • Information

Feature


Total Metal housing, IP66
A-B scan, tour available
Support audio ( optional)
Support external POE(optional)
ONVIF GB/T28181;Support P2P function
Support H.264/MJPEG compression,triple stream, video output

Specification


Model No.

WS-HD345

Camera

Sensor

1/3"  CMOS 2MP  Sony323

1/3" CMOS 4MP OV4689

1/3"  CMOS 2MP Sony323

1/3" CMOS 4MP OV4689

Output pixel

1920x1080/30fps
1920x1080/25fps

2592x1520/30fps 2592x1520/25fps

1920x1080/30fps
1920x1080/25fps

2592x1520/30fps
2592x1520/25fps

Lens

4X   f=2.8~12MM

2.8 / 4 / 6 / 8 /12MM

10X  f=5.1mm~51mm

10X  f=5.1mm~51mm

BLC

Support

AGC

Auto/manual

WB

Auto/manual/indoor/outdoor

S/N Ratio

>50dB

Dome

Communications Protocol

TCP/IP,HTTP,NTP,IGMP,DHCP,UDP,SMTP,RTP,RTSP,ARP,DDNS,DNS,HTTPS,P2P

Software Control

IE, CMS, Management Platform

Video compression

H.264/H.265/M-JPEG

audio compression

G711PCM

Mobile View(optional)

Android  iPhone

Rotation Range

Pan:0º~220º , Tilt:-45º~40º

Rotation Speed

Pan:0~30°/s , Tilt:0~25º/s

Preset Points

220pcs presetsdwell time 01-60s interval available

Guard Tours

3 groups( Max.16 points, dwell time user selectable)

AB scan range

Any point in range:-45º~40º and 0º~200º

AB scan speed

1-9 grades

Operating temperature

Outdoor: -40~+60

Operation menu

English

Consumption

≤15W

Lightning Protection

Transient voltage 6000V

Related validation

IP66,CE,FCC,RoHs

IR parameters

Auto Control IR LED

PWM

IR distance

Up to 100 meters

LEDs

6 PCS Array 42Mil IR LED

4 PCS Array 42Mil IR+2 PCS Laser LED

Support ambient light detection

IR illumination on 1-9 grades selectable
