IR Light Rugged PTZ Cameras for cars & ships

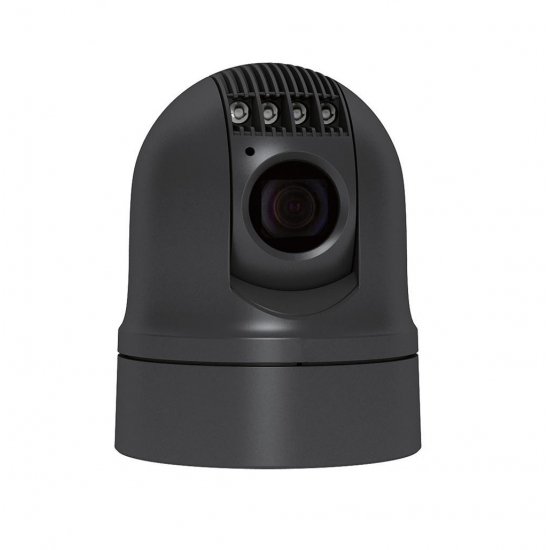

CAHC 60M IR Distance Rugged PTZ Camera for police car and robts
  • item no.:

    WS-VSIR3600
  • payment:

    1
  • product origin:

    18X/28X/36X
  • color:

    12X
  • shipping port:

    IP66
  • Description
  • Information

Features

※ Efficient 60M IR lighting, excellent night vision performance
※ Magnesuim Alloy front cover
※ Portable with compact design & high reliability
※ Advanced mechanical system with high speed and free-maintenance motor design
※ Optional damping system
※ Digital Image Stabilization(DIS)
※ Built in defogger
※ Image flip supported
※ Soft address supported
※ Self-adaption of protocol & Baud rate
※ Wide range of voltage input(10.8-28V)
※ Auto power-off with low power supply


Dimesions

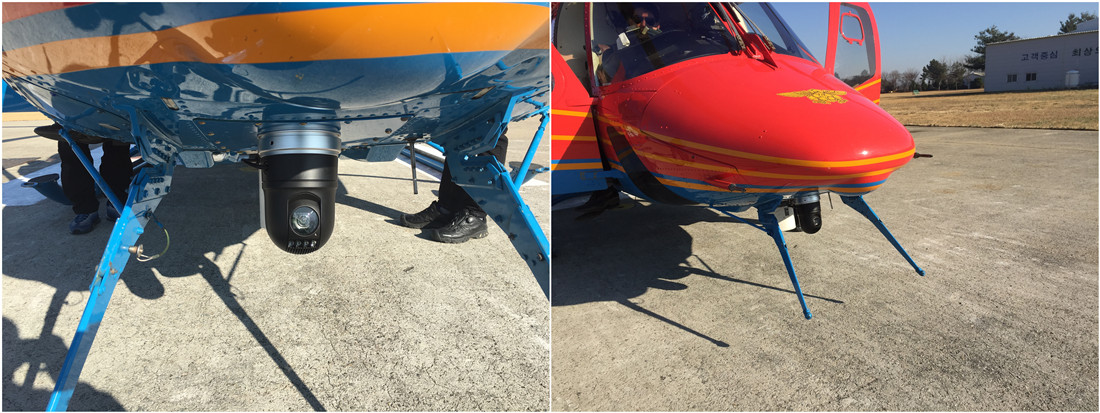

Application

Model No.

WS-VSIR3600

Camera

Image Sensor

1/4" SONY EX-View HAD CCD

Effective Pixel

PAL: 752(H) x 582(V); NTSC:768(H) x 494(V)

Resolution

550TVL

Video System

PAL/NTSC

Optical Zoom

36X

Digital Zoom

12X

Min Illumination

0.01Lux(Lights off); 0Lux(Lights On)

White Balance

Auto

Focus

Auto/Manual

Exposure

Auto/Manual

BLC

On/Off

WDR(150X)

Yes

Digital Image Stabilization

On/Off

Digital Noise Reduction

1-5 steps

Day/Night

Yes

Lens

F1.6 - F4.5, f=3.4 - 122.4mm

View Angle

57.8°(wide) to 1.7°(tele)

PTZ

Pan Range

 360° Continuous

Pan Speed

 Control speed:0.04° - 90°/s, adjustable; Preset speed:120°/s

Tilt Range

 -15° - 90°(Auto Flip)

Tilt Speed

 Control speed:0.03°-60°/s, adjustable; Preset speed:90°/s

Preset

 256

Preset Predicion

 ±0.05°

IR Light

IR Wave Lenth

850nm/940nm

Range

60m/30m

Switch

Auto/Manual

General

Comm. Interface

RS485

Protocol

PELCO-P / PELCO-D

Pattern Scan

4 routes of pattern scan

Baud Rate

2400bps, 4800bps, 9600bps, 19200bps(self-adaptive)

Sectra Address

0 - 255

Power Consumption

10W(Standby); 25W(Aux lights On, degogger ON, and P/T runing continuously)

Working Temperature

 -25°C - +65°C

Voltage

DC10.8-28V

IP Code

IP66, TVS, Anti-surge

Dimensions

Φ130(mm) x 163(mm) w/o damper; Φ140(mm) x 189(mm) with damper
