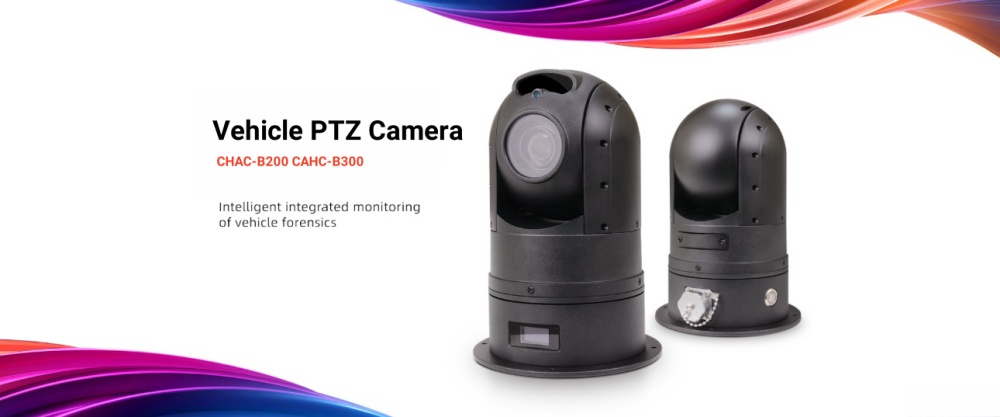

20X/30X Vehicle PTZ Video Camera

CAHC-B200/B300 Vehicle PTZ Camera is an intelligent integrated product used in vehicle monitoring and vehicle forensics. It is suitable for vehicle top-load installation, and cooperates with the on-board hard disk video recorder to provide users with high-definition, smooth and stable video image effects, It can realize high-definition image acquisition, ptz control, zoom control.

item no.:
CAHC-B200 CAHC-B300
payment:
T/T
product origin:
China
color:

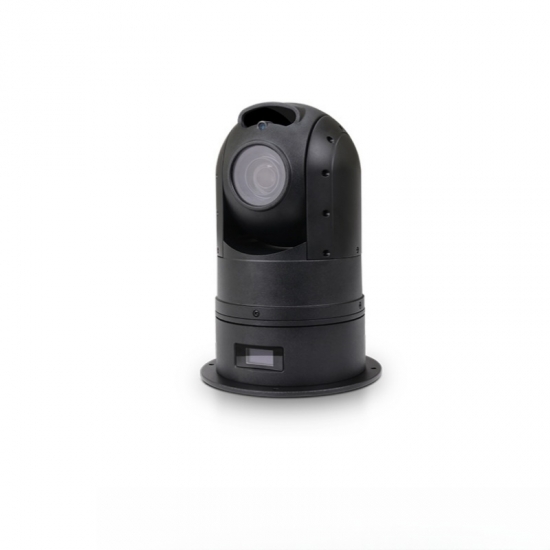

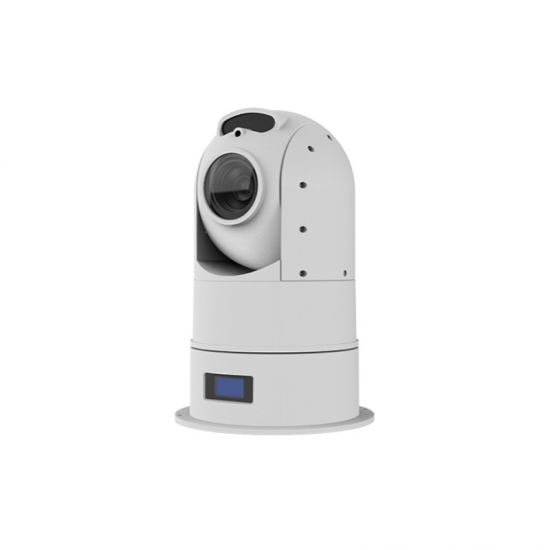

Black/White
shipping port:
shenzhen
lead time：
7

contact now

Description
Information
Downloads

Vehicle PTZ Camera

CAHC-B200/B300 Vehicle PTZ Camera can be widely used in police car mobile law enforcement, public security emergency command, traffic police patrol car, fire emergency command, 120 first aid command system, road administration mobile patrol, urban management mobile law enforcement, special vehicles Mobile command observation, mobile communication command vehicle, but also suitable for maritime supervision and other fields

Feature

※ Integrated structure design, Protection grade up to IP66.
※ Small size light weight, Single ball does not exceed 2.5kg
※ 2MP HD camera, resolution up to 1080P

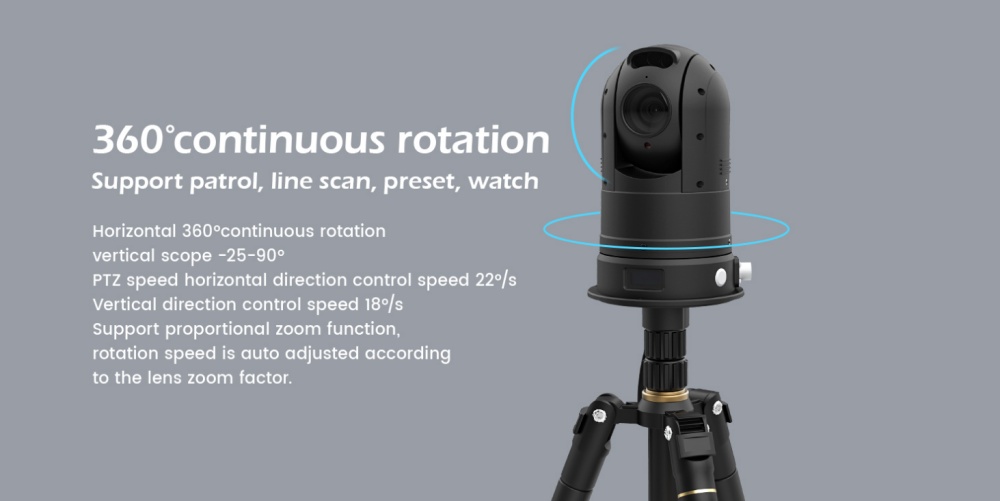

※ 360 degree continuous rotation, support patrol, line scan, preset position, park position, etc.
※ 23x optical zoom ,can clearly see vehicles and pedestrians 200 meters away（optional 30x zoom）
※ Support 3D positioning function, accurate positioning monitoring against the selected screen
※ Imported high-power infrared light, 60-80m IR distance
※ support network control，support IP/RS485, Vehicle Keyboard Controller
※ Suitable for roof mounting
※ Ultra-wide voltage design,input voltage range supports 9-36V.
※ Equipped with a DC-DC isolated wide-voltage input power supply module
※ Network output, support hikvision, dahua mainstream vehicle hard disk recorder
※ Support AI
※ Support AHD/TVI/CVI

Application

Model No.	CAHC-B200 CAHC-B300
Protocol	ONVIFprotocol, GB28181protocol, support Hikvision,Dahua private protocol
Input	Built in 1CH video, 1CH audio
PTZ
Pan Range	360° continuous rotation
Tilt Range	-30°-90°
Rotation Speed	pan control speed:100°/s, tilt control speed:60°/s
Preset	255x
Patrol	4x
Line scan	Support
Park function	Support
IR distance	4x high-power infrared lamps, 2 groups (low beam/high beam) brown glass filter, infrared distance up to 80 meters
Camera
Sensor	1/2.8"High performance low illumination CMOS sensor (IMX327)
Resolution	1080P (1920*1080 25/30 frames/sec)
Optical zoom	20x/30x
Focus Lens	f = 4.7~94mm / 4.7~141mm
Iris	F1.6~F3.5
View Angle	Wide:58.9°×45.3°Tele:2.11°×1.61°
Illumination	F1.6(W),50 IRE)0.05 lx(1/30s) IR-CUT On,0.005 lx(1/4s) IR-CUT Off
WDR	DWDR
Day-night mode	ICR cut switch
IP & Audio
Compression	H.264/H.265
Bit Rate	32Kbps - 16Mbps
Fram Rate	1-25fps(50Hz) 1-30fps(60Hz)
Stream	Support dual stream, main stream (1080P; 960P: 720P), sub stream (D1; VGA; CIF)
Snap	Support Resolution: D1/720P/1080P(default)
Audio input	Optional
Compression Standard	G711
Sampling Rate	16K, 32K, 64K, 128K
Others
LED light	1 ring light backlight
OLED screen	Status display
Alarm Input	1CH
Alarm Output	1 Group
Alarm Input	1CH
Indicator Light	Power indicator light, 1 group
General
Power Supply	DC12.6V 3A
Protection Grade	IP67
Working Temperature	-30-60°
Working Humidity	0~95% No condensation
Working voltage	Ultra-wide voltage design 9~36V
Dimension	Max Φ125118222mm
Weight	Net weight 2.3kg

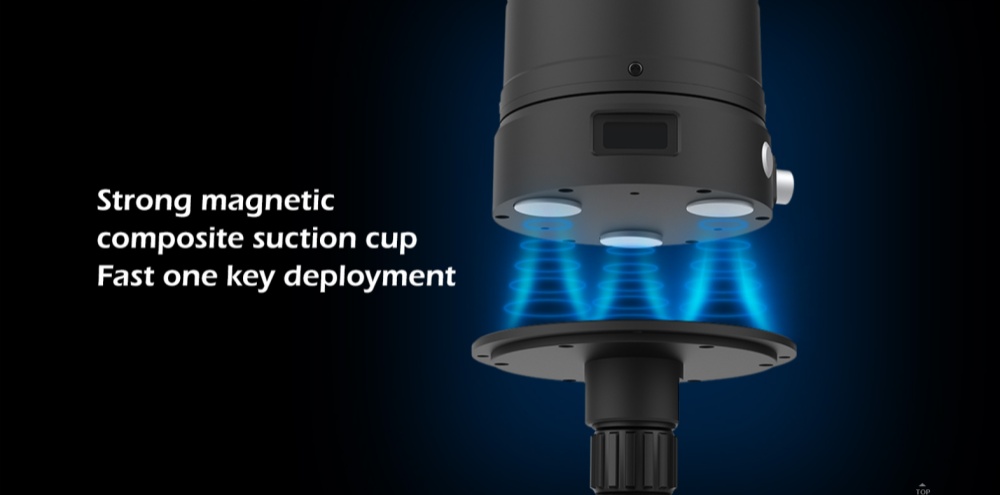

Installation	Vehicle mounted,optional magnetic suction cup
