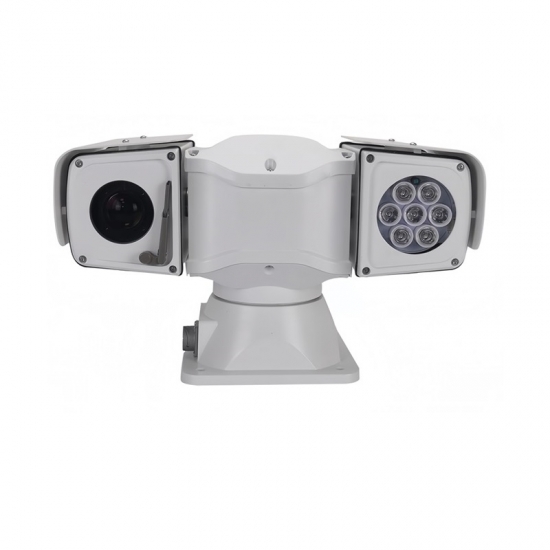

2MP 30X Optical Zoom HD SDI Vehicle PTZ Camera

WINSAFE WS-T300S HD-SDI PTZ Video Camera is 2MP 30X Optical Zoom PTZ Camera, anti-corrosion coating for maritime aplication, can work with most of NVR Such as Hikvision, Dahua, Stremax etc., 7pcs powerful OSRAM led light, IR night vision up to 150 meters, infrared wavelength: 850nm(940nm is optional). IP66 All-weather environment design for various kinds of vehicle mounted.
  • item no.:

    WS-T300S
  • payment:

    T/T
  • product origin:

    China
  • color:

    White
  • shipping port:

    Shenzhen
  • lead time:

    5
  • Description
  • Information
  • Downloads

Features

※ PTZ support megapixel HD movement, HD-SDI digital interface output, megapixel digital high-definition image lossless, real-time transmission, no delay, a variety of resolution adjustable (1080p / 60 1080p / 30 1080p / 25 720p / 60 720p / 30 720p / 25)
※ High strength aluminum alloy structure, waterproof, corrosion protection, excellent heat-resistance, aging resistance and corrosion protection;
※ Wiper and heater options
※ High speed P/T/Z system
※ 360°continuously rotation, upward angle up to 180°
※ 256 preset positions
※ 8 cruising tracks, each cruising track has 16 preset positions
※ The first independent defogging defrosting module, solve the camera and lens fogging
※ High-quality heating parts are used in the camera housing, so that the whole housing can work together to form an effective antifogging and defogging
※ PTZ adopts the integrated upper and lower structure so that the PTZ and infrared housing will not bump and dislocate.
※ PTZ standard with the original regulator module, filter the vehicle transient current instability, so that PTZ remains stable
※ PTZ adopts imported array infrared lights,Multi-angle work together, the working life up to 30,000 hours, night vision is 100-150 meters
※ Weatherproof design, high die-cast aluminum casing, protection grade IP66
※ Super shockproof, especially suitable for car surveillance
※ Input voltage: DC12V


Model No. WS-T300S
Camera
Sensor Type  1/2.8" type CMOS
Signal System  1080p/29.97, HD: 1080p/60, 1080i/59.94, 1080p/50, 1080i/60, 1080p/30, 720p/59.94,1080i/50, 1080i/59.94, 1080p/25
  SD(NTSC/PAL), 720p/25, 720p/29.97, 720p/30, 720p/50, 720p/60
Min illumination  Color: 0.5Lux @ (F1.6, AGC ON)
 Black: 0.01Lux @ (F1.6, AGC ON)  0 Lux with IR
Shutter Speed  50Hz: 1/1 - 1/30,000s; 60Hz 1/1 -1/30,000s
Day & Night Model  ICR auto color to black
Lens
Zoom  f=4.3mm(angle) to 129mm , 30x Optical Zoom
Zoom Speed  3S
Horizontal angle 63.7° (wide end) - 2.3° (tele end)
Close-up distance  10mm - 1200mm
Iris  F1.6-F3.2
PTZ
Horizontal range  Continuous rotation
Pan Preset Speed  100°/s
Tilt Preset Speed  60°/s
Pan Control Speed  0° - 60°/s
Tilt Control Speed  0° - 40°/s
Pan Range  360° endless rotation
Tilt Range  +90° - -90°
Preset Positions, Tracking  256 Positions, 8 tracking, preset accuracy ±0.10
Curis  scan  Preset Cruise scan support, 360° auto crusie scan support
Azimuth information display  ON/OFF
Breakout Memory   Support
Infrared Lamp
Infrared Illuminator  High Brightness LED X 7pcs
Wavelength  850nm
Project Distance  100-150m
Power Consumption  10W
Control of Infrared Lamp  Auto/Manual control on menu
Service Life of Infrared Lamp  Over 20000 hours
System
Video Output and Mount  HD-SDI output
Wipers  Support
Heating function  Support
RS485  Support Pelco-D &Pelco P, Bit-rate optional
Others
Power Supply  DC12V
General  Menu: Chinese/English    Brush function support
Power Consumption  <25W (IR Lights 15W max,Heating5W max)
Output Cable Length  1.5 Meters
Operating Temperature and Humidity  -35℃-65℃(outdoor),humidity: <90%
Ingress Protection  IP66(Outdoor),  TVS6000V Lightning/Surge/Anti-Surge
Installation  Roof Rack
Dimension  398mm x 211mm x 243.5mm
Weight  7kg
