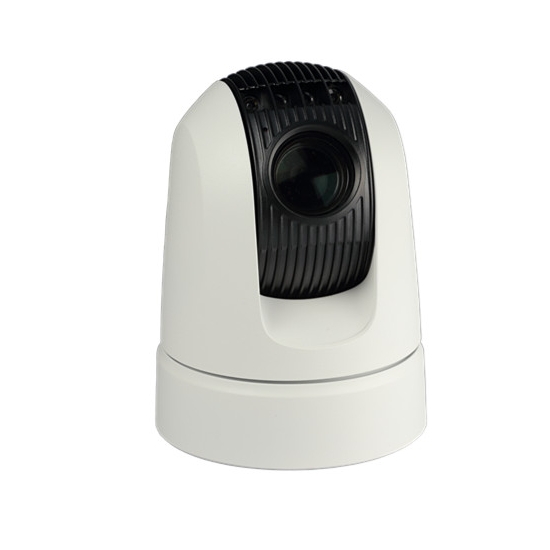

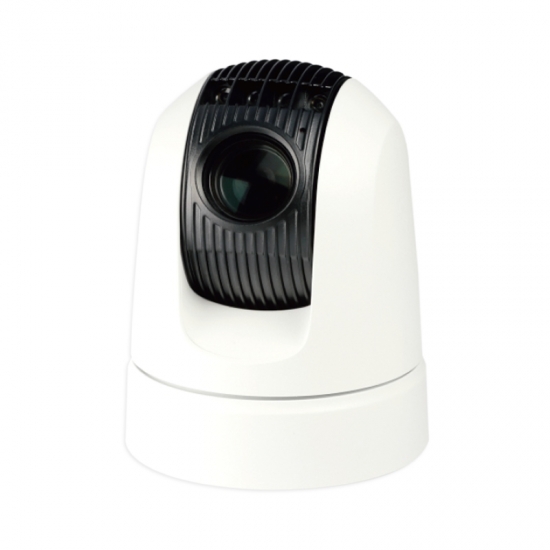

AC3 HD Analog Cost Effective Dual Video Output Vehicle PTZ Cameras

IP AC3 Series Rugged PTZ Cameras for Cars & Ships
  • item no.:

    AC3-A2001H-IR
  • Description
  • Information

Features



※ 1/2.8” CMOS, 2.14MP, 20X optical zoom;
※ Support HD-SDI and Analog output
※ Efficient 60m IR distance;
※ Wide dynamic range, ICR day/night;
※ Protection index: IP66
※ Soft PTZ address, protocol and baud rate self-adpative;
※ 10.8~28V voltage input;
※ Auto power-off with low power supply.

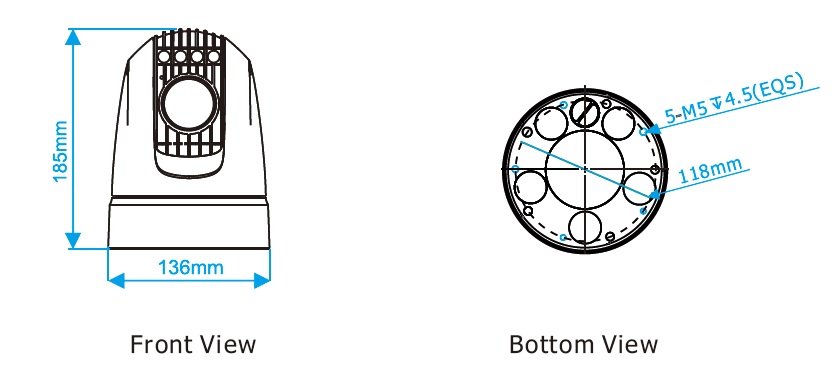

Dimensions

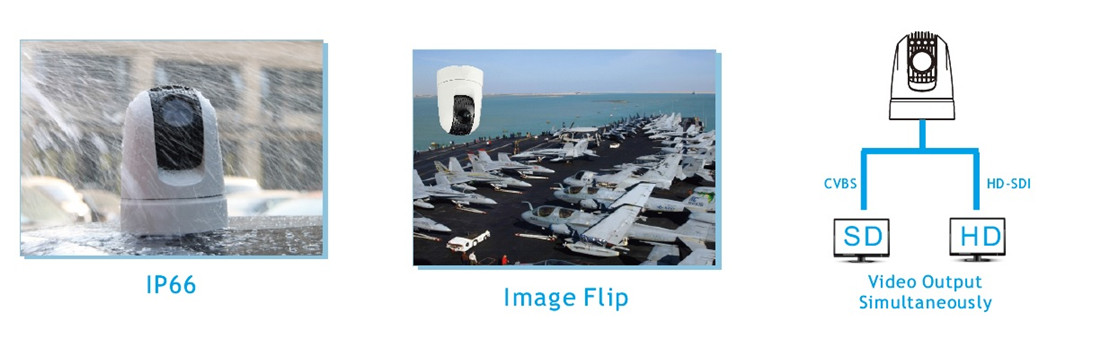

Application



Model No.

AC3-A2001H-IR

Camera

Image Sensor

2.14" Progresive Scan CMOS,2.14MP

Active Pixel

1920(H) x 1080(V)

Signal Sytem(NET)

HD:1080p30 / 1080p25 /1080I60 / 1080I50 / 720p60 / 720p50 / 720p30 / 720p25

Signal System(SD)

PAL / NTSC

Min.Illumination

Color: 0.5Lux; B/W:0.1Lux

White Balance

Auto

Focus

Auto / Manual

Exposure

Auto / Manual

S/N Ratio

Note less than 50 Db

BLC

On / Off

WDR

On / Off

Digital Noise Reduction

1 - 5Steps/OFF

Digital Image Stabilization

No

Day/Night

Auto / Manual

Lens

Optical Zoom

20X

Digital Zoom

12X

Lens

f=4.7mm - 94mm

IRIS

F1.6 - F3.5

View Angle

 59.5° (wide) to 2.9° (tele)

PTZ

Pan Range

 360° Continuous

Pan Speed

  0.1° - 60°/s, adjustable, Preset Speed: 60°/s

Tilt Range

  - 15 °  - 90° with auto flip

Tilt Speed

  0.2° - 60°/s, adjustable, Preset Speed:60°/s

Preset Number

256

Preset Precision

 ±0.2°

IR Light

IR Wave Length

850nm

Range

60m

Switch

Auto / Manual

General

OSD Lanuage

English

Video Output(HD)

HD-SDI

Video Output(SD)

CVBS

Comm. Interface

RS-485

Address

0 - 255

Comm.Protocol

PELCO-P / PLECO-D(self-adaptive)

Protocol

2400bps, 4800bps,9600pbs,19200bps(self-adaptive)

Voltage

DC 10.8 - 28V

Power

Min: 9W; Max: 20W

Working Temperature

 -25°C - +65°C

IP Code

IP66

Dimensions

Standard(Without Damper): Φ136(mm) x 185(mm)

Weight

Standard(Without Damper): 2.1(±0.2)kg
