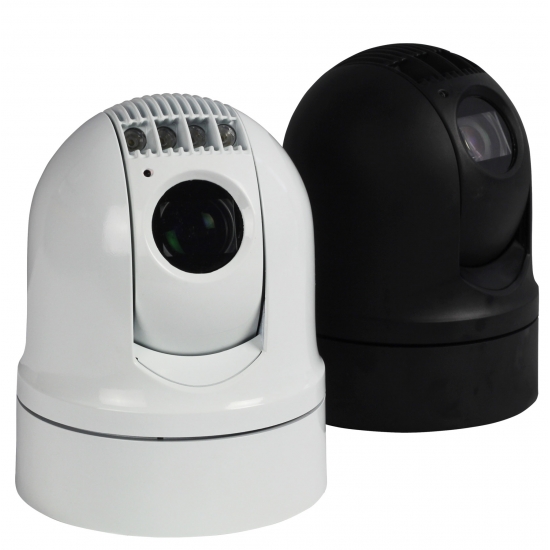

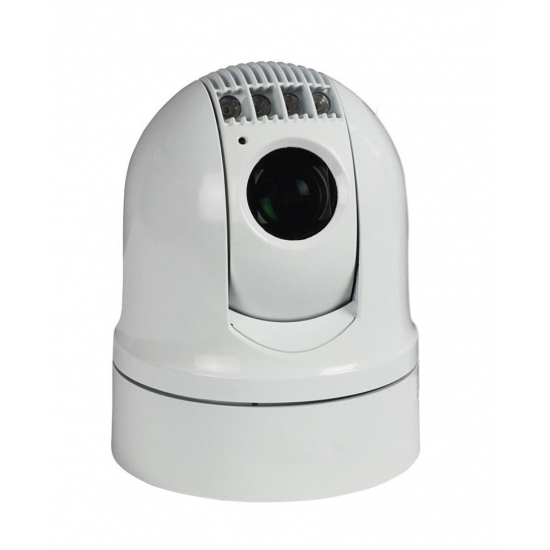

HD Intelligent Weatherproof Vehicle PTZ Camera

HD AC3 Rugged Marine PTZ Cameras are good used on the ships and cars
  • item no.:

    CAHC-A2001-IR
  • Description
  • Information

Features


※ 2.14MP HD sensor, supporting 1080p,1080i,720p output, full digital video technology
※ HD-SDI for transfer of HD video
※ Efficient 60M IR lighting, excellent night vision performance
※ Portable with compact design & high reliability
※ Optional damping system
※ WDR supported
※ Built-in defogger
※ Self-adaption of Protocol & Baud rate
※ Wide range of voltage input(10.8-28V)
※ Auto power-off which low power supply

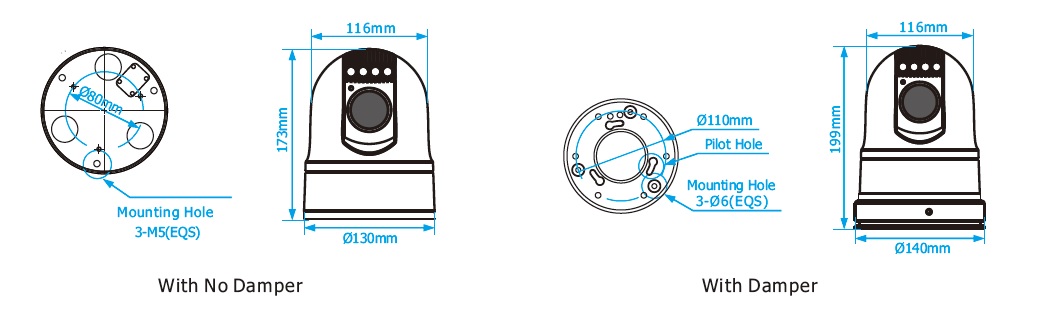

Dimensions

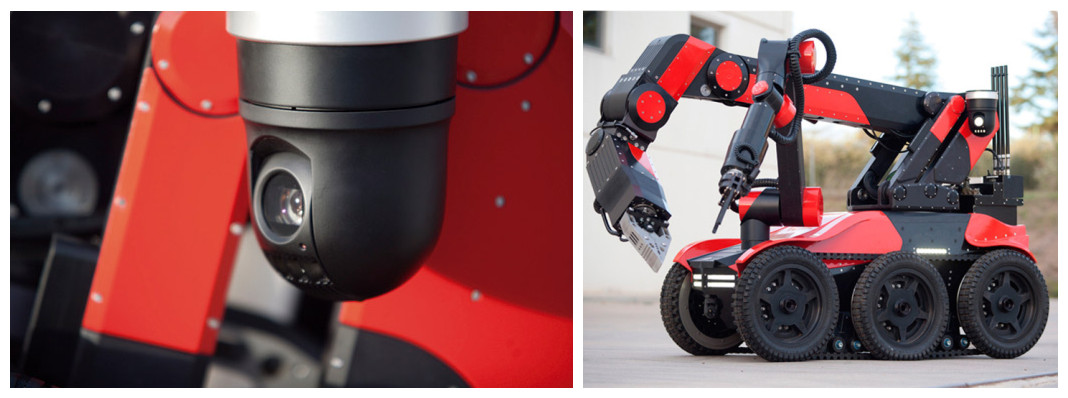

Application



Model No.

CAHC-A2001-IR

Camera

Image Sensor

1/2.8" Exmor CMOS

Effective Pixel

2.14MP

Video Output

HD:1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25

Min.Illumination

Color: 0.5Lux; B/W: 0.1Lux

White Balance

Auto

Focus

Auto / Manual / PTZ Trigger

Exposure

Auto / Shutter priority

S/N Ratio

Not less than 50 Db

BLC

On / Off

WDR

On / Off

Digital Noise Reduction

1 - 5 Steps / OFF

Day/Night

Auto / Manual

Lens

Optical Zoom

20X

Digital Zoom

12X

Focal

f = 4.7 - 94mm

IRIS

F 1.6 - F3.5

Angle Field of View

59.4°  - 2.9°

PTZ

Pan Range

 360° Continuous

Pan Speed

 Control speed: 0.3° - 80°/s, adjustable; Preset speed:80°/s

Tilt Range

  - 15 °  - 90°( Auto Flip)

Tilt Speed

 Control speed: 0.3° - 35°/s, adjustable; Preset speed: 35°/s

Preset Number

256

Preset Precision

 ±0.2°

IR Light

IR Wave Length

850nm

Range

60m(850nm)

Switch

Auto / Manual

General

Comm. Interface

RS-485

Video Interface

HD: HD-SDI

Comm. Protocol

PELCO-P/PLECO-D(Self-Adaptive)

Protocol

2400bps, 4800bps,9600pbs,19200bps(self-adaptive)

Address

0-255

Voltage

DC10.8-28V

Power

10W(Standby); 28W(Aux lights ON, defogger ON, and P/T runing continuously)

Working Temperature

 -25°C - +65°C

IP Code

Magnet / Fixed / Fixed with Damper

Dimensions

Φ130(mm) x 163(mm) w/o damper; Φ140z(mm) x 199(mm) with damper

Weight

Fixed Mount: 1.7kg; Magnet Mount: 1.6kg; Fixed with damper: 2.1kg
