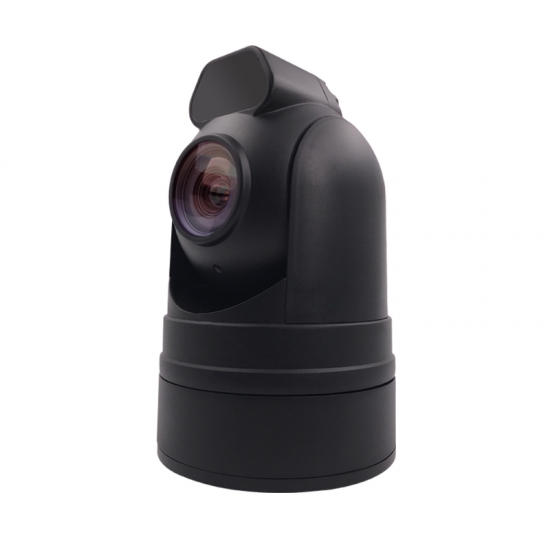

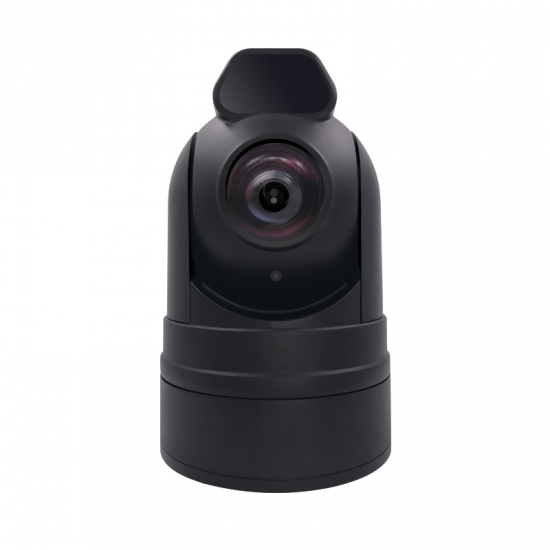

Small Size HD TVI IR Rugged Cost Effective Vehicle PTZ Cameras

IP HD SDI Netwrok 60M IR Distance High Speed Vehicle PTZ Camera can be widely used in wide range environments which required monitoring, e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, and etc.
  • item no.:

    CAHC-B1800
  • Description
  • Information

Product  Overview


※ Effective pixels 2.0 million pixels,1/3 Minimum Illumination CMOS,18x optical zoom
※ Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.1 degree;
※ Support for lightning protection, anti surge, anti surge.;
※ Protection grade: IP66;
※ Support UTC Control Video Transmision can be reach 500M
※ Support PTZ OSD menu


Feature Decription

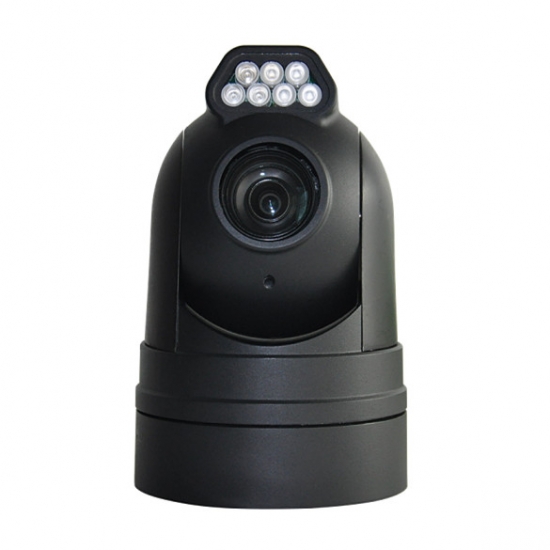

※ 7 PCS infrared light,IR distance 60m;
※ 360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area;
※ Pan control speed 0.6~160°/s, tilt control speed 0.8°~90°/s。
※ Support 200 preset, 4 patrols, each patrol can contain up to 32 presets 4 patterns, can totally record up to 10 minus.;
※ Support A.B scan、 regional limit;Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
※ Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on)



Dimensions

Application


Model No.

CAHC-B1800-P / CAHC-B1800N

PTZ Spec.

IR Range

60M

Pan Range Speed

360° endless; Speed 0.6-160°/S

Tilt Range Speed

 -15° - 90°, auto flip 180°, speed 0.8° - 90°/s

Video

Effective Pixels

2.0MP 1920(H) x 1080(V)

Image Sensor

1/3" CMOS

Min.

Color:0.1Lux@F2, B/W: 0.01Lux@F2

S/N Ratio

Above 50dB(AGC OFF)

Lens

Focal Lens

18X Optical Zoom f=4.7mm - 84.6mm

Aperture Range

F1.6 - F2.7

Angle of View

54.8° - 3.40°

Function

White Balance

Automatic

Exposure mode

Automatic/Manual

Image Mirroring

Support (Pan + Tilt)

Image Flip

Support

Electronic shutter

1/30s - 1/10,000s

DWDR

Support

DNR

2D-DNR

Focus mode

Automatic/Manual

Day-Night Mode

Support

Digital Zoom

Support

Edge illumination Compression

Support

Interface

BNC output

HD-TVI(1Vp-p 75Ω), PAL/NTSC, BNC

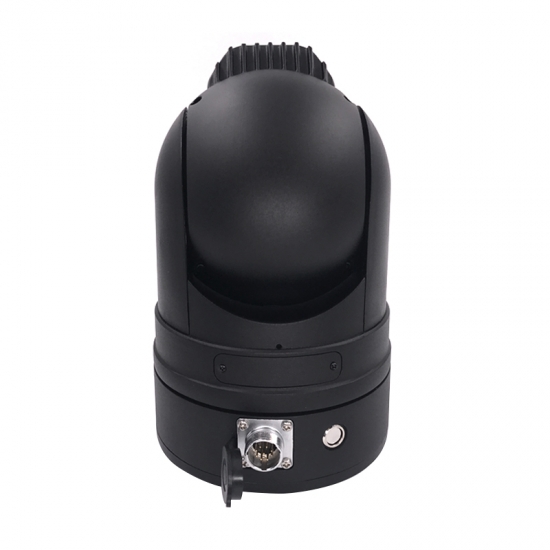

Power and control interface

DC12V/4A, RS485

Others

Power consumption

Max 10W Day-time, Max 30W at night(not include the heat)

Working

-20°C - +60°C

Protection Grade

TVS3000V lightning protection, surge protection and voltage
