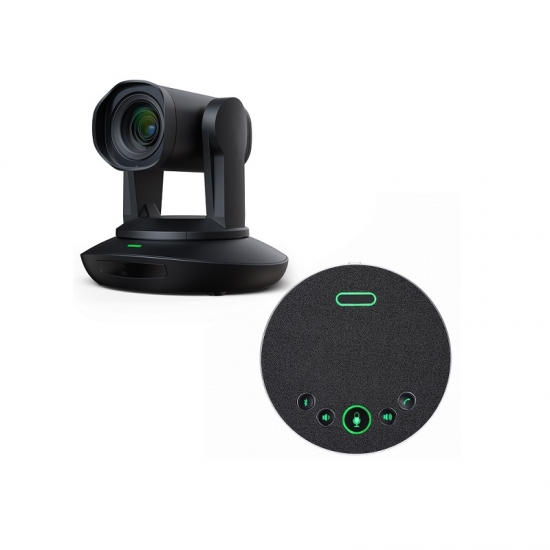

Video conferencing kit with 30X 4K60 Auto Tracking PTZ Camera & USB Microphone

Model No.

UHV-450H(NDI)-AB

Sensor

1/1.8", 9MP UHD CMOS sensor

Zoom

30x optical zoom

Lens

 f = 6.91mm - 214.64mm, F1.35 - F4.6

Horizontal View Angle

63°(Wide) - 2.1°(Tele)

Vertical viewing angle

34.14° - 1.12°

Diagonal viewing angle

67.08° - 2.27°

Minimum Working Distance

1.5m

S/N Ratio

 ≥50dB

Video Format

HDMI2.0：
3840*2160P60/59.94/50/30/29.97/25
1920*1080P60/59.94/50/30/29.97/25/24/23.98 ; 1920*1080I60/59.94/50 ; 1280*720P60/59.94/50/30/29.97/25

NDI®|HX：
Main Stream:
3840*2160P15~60; 1920*1080P15~60; 1280*720P15~60; 1024*576P15~60
Sub Stream :640*360P15~30

3G-SDI：
1920*1080P60/59.94/50/30/29.97/25/24/23.98; 1920*1080I60/59.94/50; 1280*720P60/59.94/50/30/29.97/25

USB Type-C：
NV12：1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
YUYV：1920*1080P5; 1280*720P15; 1024*576P25; 800*448P30
MJPG：3840*2160P30; 1920*1080P60; 1280*720P60; 1024*576P60;800*448P60
H264/H265: 3840*2160P30;1920*1080P60;1280*720P60;1024*576P60; 800*448P60

Image Parameters

Noise Reduction

2D & 3D

Minimum Lux

30x:0.5Lux(50 ire max agc,1/30,f1.8)

White Balance

Auto/Manual/Auto tracking/Push/Indoor/Outdoor/Color Temperature

Exposure

Auto/manual/shutter priority/iris priority/brightness priority

Anti-Flicker

OFF, 50Hz, 60Hz

Image Flip

Support

Mirroring

Support

Focus

Auto/Manual

Iris

Auto/Manual

Electronic-shutter

Auto/Manual

Gamma

Support

Backlight Compensation

Support

IP Steaming

Video Encoding

H.264/H.265

Bitrate Control

Variable bitrate(VBR), Constant bitrate(CBR)

Bitrate Range

1024Kbps - 61440Kbps

Network Port Speed

1000M

Protocol

NDI®|HX, SRT, HTTP, RTSP, RTMP, ONVIF, VISCA over IP, TCP, UDP, VISCA, PELCO P/D, HTML5, Webrtc, RTP Multicast

Pan/Tile Movement

Preset

Remote controller:10;  Serial port: 128; Accuracy: 0.1°

Pan Rotation Angle

 -170° - +170°

Tilt Rotation Angle

 -30° - +90°

Pan Rotation Speed

30x :0.1° - 80°/s

Tilt Rotation Speed

30x :0.1° - 60°/s

I/O Interface

Control Port

RS232(RS485), NDI@|HX

Video Port

NDI®|HX, HDMI2.0, 3G-SDI, USB Type-C

Audio Port

Dual 3.5mm linear inputs

Tally

Support

Tilt Rotation Speed

Support

Daisy Chain

Support

General

Input Voltage

DC12V, POE+(IEEE802.3at)

Operating Temperature

 -10℃~ 50℃

Operating Humidity

 ≤80%

Color

Black/White

Dimension（L×W×H）

30x: 220mm×190mm×193.5mm

Net Weight

 30x: 1.9kg(4.2LBS)

Model No.

 WS-AM13B

Covering Area

 <40㎡

Connection type

 10-15 paticipants

Micophone Numbers

 Built-in 2x Microphone Array

Microphone Pickup Distance

 5 meters

Bluetooth Connection

 Yes

Sensitivity

 -29dBFS

Microphone/Speaker Frequency response

 100Hz - 22kHz

Directivity

 Omni-directional

Noise Level

 95dBA

Full-duplex echo cancellation

 Support

Echo tail length

 ≥500ms

Bluetooth version

 V5.0

Battery

 Built in 2400mAH

Battery Charging time

 3 Hours

Call time

 6-9 hours

Standy time

 50 days

Bluetooth version

 V5.0

Battery

 3 hours

Call time

 6 - 9 hours

Standy time

 50 days

Ports

 1 x Type-C, 1 x 3.5mm audioport

Working temperature

 0° to 50°C

Power supply

 USB: 5DC @ 500mA Maximum

Speaker

 3W full band speaker

Software

 PolyCom, Blue Jeans, cisco, Vimix, Golomeeting, Radvision, SeeVogh, WebEx, Easy meeting, Vidtel
 and working with Microsoft Lync Software, and ZOOM.US, SKYPE, VIDYO etc.

Operation Systems

 Windows7, Windows 8.1, Windows 10; Mac OS 10.10 or higher, Android

Noise suppression

 Support

Gain control

 Support

Max. Output

110dB

Product Dimension

 160mm x 160mm x 38mm

Warranty

 3 years
