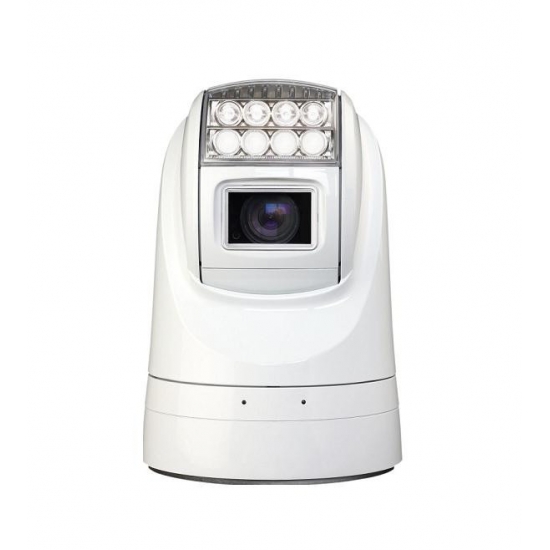

Vehicle Rugged PTZ Megapixel Camera with IR light

120M IR Distance Weatherproof IP67 HD 1080P Rugged PTZ Cameras for cars & ships
  • item no.:

    PAHC-S3002H-IR(WL)
  • payment:

    1/2.8
  • product origin:

    20X
  • color:

    12X
  • shipping port:

    IP67
  • Description
  • Information

Feature


※ 1/2.8" CMOS, 2.13MP, 30X optical zoom
※ Support HD-SDI and SD output
※ Efficient 120m IR distance
※ Hidden seamless window wiper with adjustable speed
※ Wide dynamic range, ICR day/night
※ Optional damping system
※ Digital image stabilization
※ Protection index: IP67
※ Soft PTZ address, protocol and baud rate self-adpative
※ 10.8-28V voltage input
※ Auto power-off with low power supply


Dimension

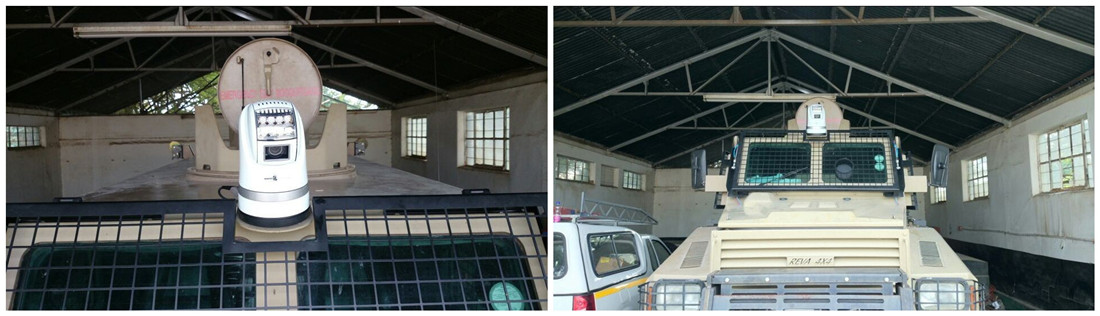

Application

Model No.

PAHC-S3002-IR(WL)

Camera

Image Sensor

1/2.8"CMOS

Effective Pixel

2.13MP

Signal System(HD)

HD:1080p30 / 1080p25 / 1080i60/ 1080i50 / 720p60 / 720p50 / 720p30 / 720p25

Signal System(SD)

PAL/NTSC

Min.Illumination

Color:0.0013Lux; B/W:0.0008Lux

White Balance

Auto

Focus

Auto / Manual

Exposure

Auto / Manual

S/N Ratio

Note less than 50 Db

BLC

On / Off

WDR

On / Off

Digital Image Stabilization

On / Off

Digital Noise Reduction

1 - 5Steps/OFF

Day/Night

Auto / Manual

Lens

Optical Zoom

30X

Digital Zoom

12X

Focal

f=4.3mm - 129mm

IRIS

F1.6 to F4.7

View Angle

 63.7° (wide) to 2.3° (tele)

PTZ

Pan Range

 360° Continuous

Pan Speed

Control Speed:0.5° - 80°/s, adjustable; Preset Speed:80°/s

Tilt Range

  - 15 °  - 90° with auto flip

Tilt Speed

Control Speed:0.5° - 75°/s, adjustable; Preset Speed:75°/s

Preset Number

256

Preset Precision

 ±0.2°

Lights Options

IR Lights

White Lights

Wave Length or Color Temperature

850nm

6500K

Range

120M(850nm)

120M

Switch

Auto / Manual

Manual

General

OSD Lanuage

English

Comm. Interface

RS-485

Address

0 - 255

Video Interface

HD: HD-SDI / Analog: CVBS

Comm.Protocol

PELCO-P / PLECO-D(self-adaptive)

Protocol

2400bps, 4800bps,9600pbs,19200bps(self-adaptive)

Voltage

DC 10.8 - 28V

Power

Min:12W; Max:55W

Working Temperature

 -35°C - +65°C

IP Code

IP67

Dimensions

Standard: Φ190(mm) x 275(mm); With Damper: Φ190(mm) x 300(mm)

Weight

Standard: 4.9kg; 5.65kg(with damper)
