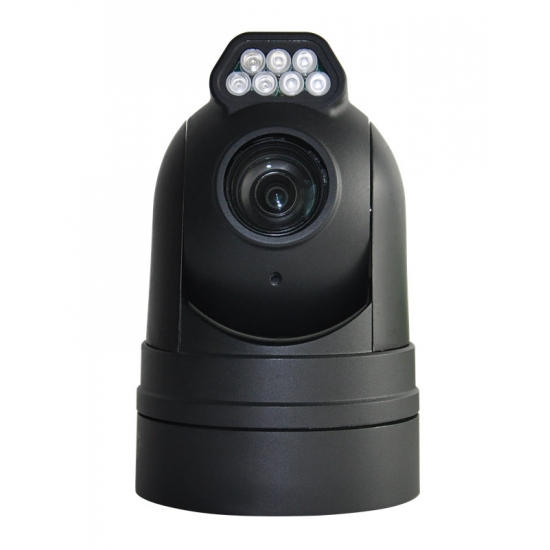

18X Optical Zoom 2Megapixel HD TVL IR Vehicle PTZ Camera

HD-TVI Vehicle PTZ Camera/CAHC-B1800 can be widely used in wide range environments which required monitoring, e.g. river, forest, highroad, railway, airport, port, oil field, sentry, piazza, park, scenic zone, street, station, venue, parcel surrounding, and etc.
  • item no.:

    CAHC-B1800N
  • Description
  • Information

Product  Overview



※ Effective pixels 2.0 million pixels,1/3 Minimum Illumination CMOS,18x optical zoom
※ Precision motor-driven,keen responsive,smoothly operation,the precision deviation less than 0.1 degree;
※ Support for lightning protection, anti surge, anti surge.;
※ Protection grade: IP66;
※ Support UTC Control Video Transmision can be reach 500M
※ Support PTZ OSD menu



Feature Decription

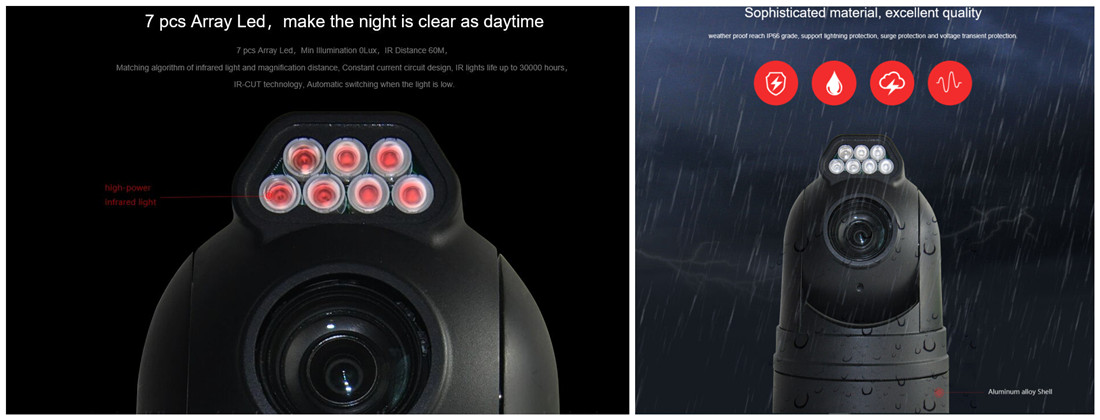

※ 7 PCS infrared light,IR distance 60m;
※ 360°endless pan range and 0°- 90°tilt range, support auto-flip, non-surveillance blind area;
※ Pan control speed 0.6~160°/s, tilt control speed 0.8°~90°/s。
※ Support 200 preset, 4 patrols, each patrol can contain up to 32 presets 4 patterns, can totally record up to 10 minus.;
※ Support A.B scan、 regional limit;Proportional zoom function, rotation speed can be adjusted automatically according to zoom multiples
※ Support park action, presets/pattern/patrol/pan scan can invoke automatically after a defined time of inactivity (contain the idling condition after the power supply has been turn on)



Dimensions



Application


Model No.

CAHC-B1800N

Image sensor:

1/2.9” IMX323 CMOS

Effective Pixels:

1920x1080

Min. Illumination:

Color:0.05Lux B/W0.01Lux

White Balance:

Auto/Indoor/Outdoor/Sodium lamp/Manual

AGC:

Auto/Manual

S/N Ratio:

> 52dB AGC OFFWeight ON

Back light Compensation:

On/Off

Slow shutter:

Support

Electronic shutter:

1/1 1/10,000ssupport slow shutter

Day & Night:

Support IR-CUT Filter

Aperture Range:

F1.6F3.5

Focus Mode:

Auto/Manual/ONEAF

Focus lens :

18Xoptical zoom 4.7 84.6mm

Angle of View:

58.3°3.2°

Close range:

101500mm

IR distance:

60m

IR angel:

Three group angel can be adjusted based on the zoom

Pan speed :

360° endless; Speed 0.6-160°/S

Tilt speed:

Support Auto-Flipspeed 0.8—90°/S

Tilt range:

-15°-90°auto flip 180°

Proportional Zoom::

Support, change the speed based on the zoom

Preset:

200

Patrol;

8, each group can add 32pcs preset

Pattern scan:

4,each group can record 100pcs motions

A.B scan:

Support

Park function:

Support ,preset, cruise, pattern scan, two-point line sweep, horizontal automatic

Max. Image size:

1920X1080

Frame Rate:

50Hz: 25 fps(1920×1080,1280×720)60Hz: 30 fps(1920×1080,1280×720)

Video Compression:

H.264/MJPEG

Network protocol:

TCP/IPHTTPDHCPDNSDDNSRTPRTSPPPPoESMTPNTPUPnPSNMPFTP802.1xQoSHTTPSIPv6 (SIPSRTP)GB28181

Interface protocol:

OnvifHikvision

Intelligent alarm:

Motion detection, occlusion alarm

Safe mode:

Password protection, multiuser access control

Net Interface:

Built in RJ45,Support 10M/100m

Application program interface:

Provide LinuxNindoNs SDK develop bag and CGI protocol,can be second fast developed

Client:

Network video monitoring software
