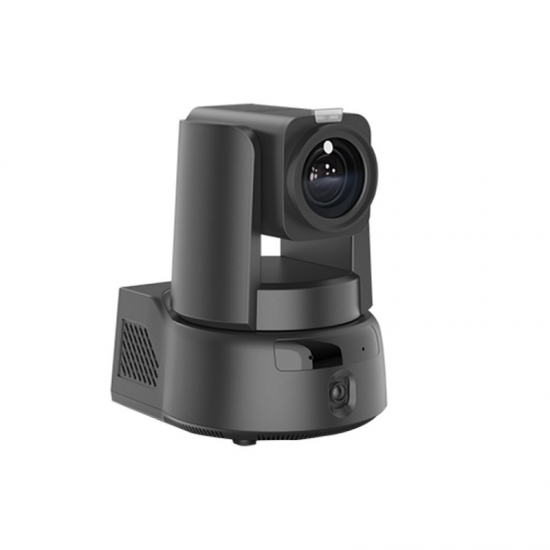

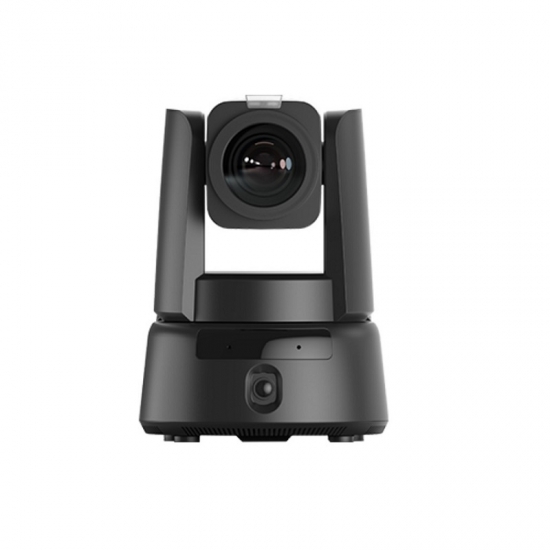

Professional 4K60 12G-SDI PTZ Video Camera

Professional 4K60 12G-SDI PTZ Video Camera

WINSAFE PCB-120 features a 4/3" CMOS sensor, capable of delivering high-definition videos with a resolution of 20MP with 20X optical zoom and it supports simultaneous video output through 12G-SDI and 3G-SDI.

item no.:
PBC-120
product origin:
China
color:
Black
shipping port:
Shenzhen
lead time：
5

contact now

Description
Information
Downloads

Feature

- 4/3 inch high-end CMOS sensor, 20x professional 4K optical zoom lens with a maximum HFOV of 71°
- Simultaneous output of 4K60 UHD video for both close-up view and full-view
- Supports broadcast frame rates of 59.94/29.97fps
- Excellent PDAF, CDAF and Face AF algorithms for fast/accurate/stable focusing
- Support ND filters for better image quality
- Support 12G-SDI, 3G-SDI, HDMI2.0, Gigabit POE network and USB3.0 interface
- Front and real dual Tally lights in indicating the status of the video steams
- Gen lock extermal synchronization
- Supports Time Code
- External SD card support for on-touch recording
- Free D protocol for virtual studio setups; NDI HX3, Dante AV-H and SRT
- WEB UI for remote and convenient camera configuration
- Built-in advanced deep learning AI algorithms to ensure stable tracking effects and accurate posture recognition
- Optional Full NDI, HDBaseT, or SDVoE

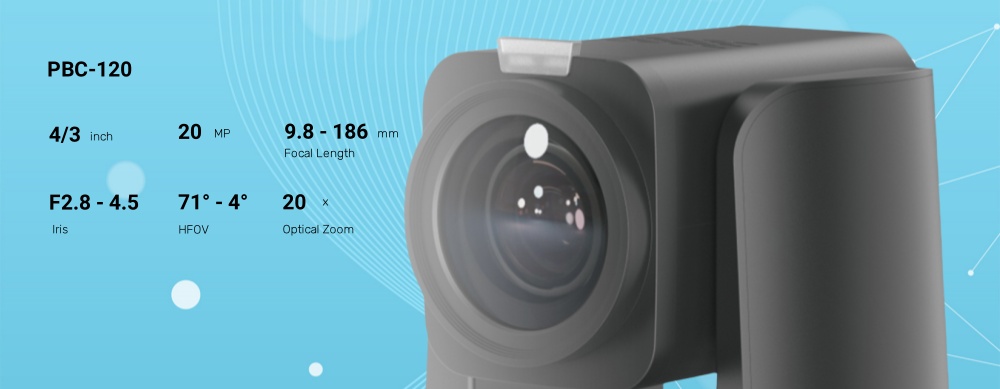

UHD Lens

Ultra High Definition Lens Gives You a High-Definition Vision

Ultra High Definition Images

The camera gives you clear vision of the resolution at 4K resolution

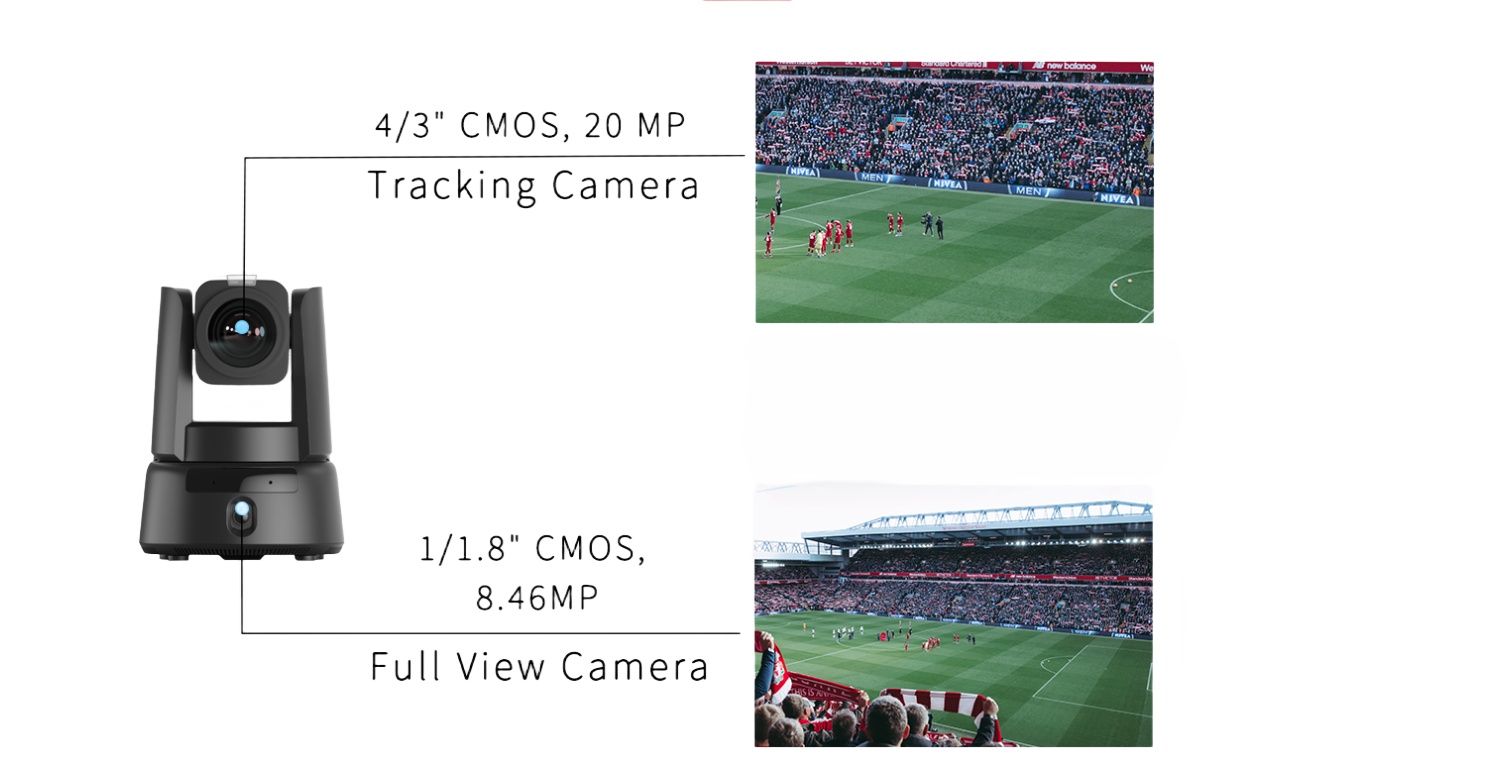

Dual-Cam

4/3" CMOS, 20MP for Tracking Camera, 1/1.8" CMOS, 8.46MP for Full View Camera

Suport 12G-SDI

Powerful Transmission Capability

High Quality 20X Optical Zoom

Suitable for Most Scenarios

Suport Most Mainsteam Protocols

Faster, Clearer and Safter Transmission

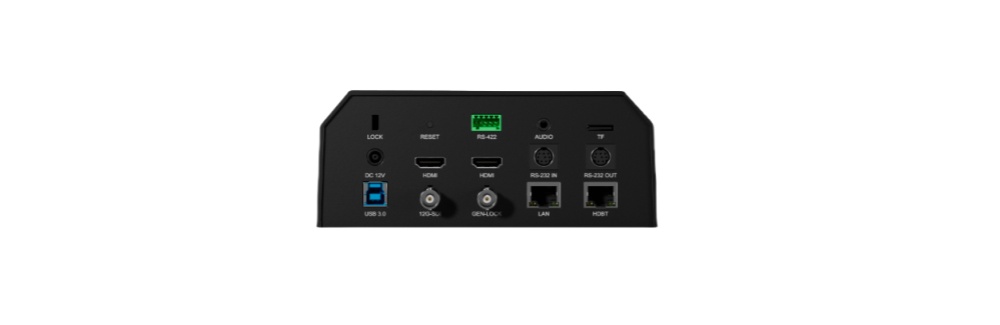

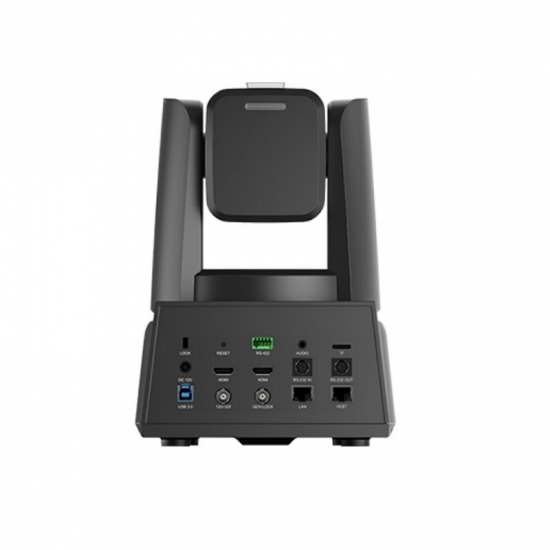

Interface

Support 12G-SDI, 3G-SDI, HDMI, LAN, USB3.0, Gen Lock, Time Code, Fiber.

Model No.	PBC-120
Tracking Camera
Image Sensor	4/3" CMOS, 20MP, up to 4KP60
ND Filter	Switchable" 1/64, 1/16, 1/4, 1
Optical Zoom	20X
Digital Zoom	16X
Filed of View	HFOV: 71° - 4°
Lens	f = 98mm - 186mm, F2.8 - F4.5
Full View Camera
Image Sensor	1/1.8"CMOS, 8.46MP, max 4KP60
Lens	f =4.4mm, F2.0
HFOV	85°
Focus	PDAF, CDAF, Face AF
Image Mode	One-click switching between multiple image modes
Wide Dynamic Range	Dynamic Range: 0/1/2/3/4/5
Metering Mode	Top, Buttom, Center, Average, Left, Right
PTZ
PTZ	-170° - +170°, 0.05° - 120°/s
Tilt	-30° - +90° , 0.05° - 90°/s
Preset Number	256
Interface
SDI	1 x 12G-SDI with audio output, up to 4KP60/P59.94/P50 ; 1080i60/i59.94/i50 1 x 3G-SDI with audio output; up to 1080P/60/P59.94/P50; 1080i60/59.94/i50
USB	1 X USB 3.0 Type-A(compatible with HOST), UAC and UVC 1.1, RGB420; UVC video formats: H.264/H.265/MJPEG: up to 4KP60; YUY2/NV12: up to 1080P30
Time Code	1 x BNC input
Gen - Lock	1 BNC external synchronization Gen-Lock interface
HDMI	1 x HDMI2.0, with audio output, YUV/RGB 444(8bit), YUV 422(10bit), YUV 420(8bit), up to 4KP60/P59.94/P50;1080i60/i59.94/i50
Network	1 x RJ45, 100M/1000M adaptive Ethernet port, standard POE, with audio output AAC/G.711 Video formats: H.264/H.265/MJPEG up to 4KP60 Network protocols: RTSP/RTMP/RTMPS/Visca Over IP/ONVIF/SRT/NDI HX2/NDI HX3/Dante AV-H Dual output for main and sub steams WEB UI, CGI, HTTP
SFP	1 x optional fiber interface, configurable to 12G-SDI
One of Three Options	Optinoal Full NDI, HDBase-T or SDVoE Full NDI, with autio output and POE++ SDVoE with audio output and POE++ HD-Base-T with audio output and POE ++
Audio Interface	2 x Audio-Input XLR Connectors with Phantom Power; ACC/UAC; Sample Rates: 16k, 32k, 48k
Reset Button	Restore Fctory Setings
Control	1 x RS232/RS422 Port, Supporting Visca/Pelco-P/Pelco-d
Security Lock Slot	1 x Kensington Lock
Memory Card	1 x external Micro SD slot, with a maximum storage 2TB
General
Power	DC12V, 5A
Indicator	Power light, status light, dual Tallly Lights
Installation Method	Upright, inverted(panormic lens adjustable ±20°)
Remote Control Range	15m, dual infrared in front and rear of camera
Dimensions(LxWxH)	239mm x 208mm x 291mm
