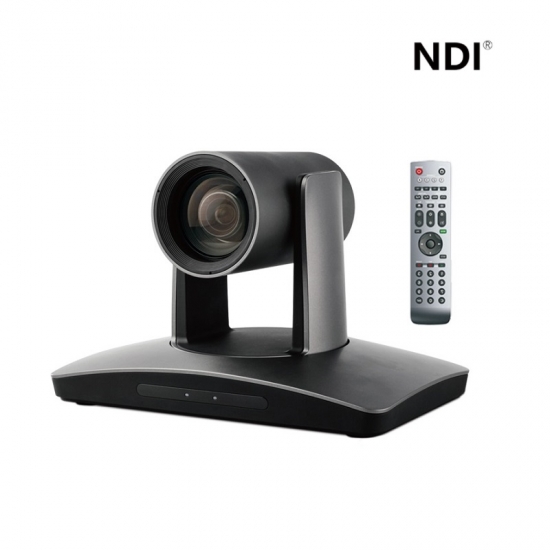

AMC-E Series NDI 1080P HD PTZ Camera

Network Device Interface(NDI®) is a high performance standard that allow anyone to use real time, ultra low latency video on existing IP Video network, our AMC-NE220NV3 1080P HD PTZ Video Camera, in different live steaming enviroments, for aaplications of HD video capture, such as lecture capture, events broadcasting,  house of worship, telemedicine etc.
  • item no.:

    AMC-NE220NV3
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • color:

    Grey
  • Description
  • Information

Features


※ 1/2.8" EXMOR CMOS image sensor, up to 2.14MP
※ Support NDI | HX output
※ 20X optical zoom, 12x digital zoom, up to 59.5°FOV
※ H.265 video compression, dual steam
※ Come with IR remote controller
※ Control Interface: RS-232IN/IR, RS-232 OUT/RS485
※ Image flip function for stand and suspended installations
※ Standard VISCA & Pelco communication protocols

Dimensional Drawing




Accessories



Model No.

AMC-NE220NV3

Camera

Image Sensor

1/2.8" Exmor CMOS, 2.14MP

Video Standard(HD)

1080p60,1080p50,1080p/30,1080p25,1080i/60,1080i50,720p/60,720p/50

Focal

f = 4.7mm - 94mm

IRIS

F1.6 - F3.5

Zoom

Optical: 20X, Digital: 12X

Field of View

59.5°  - 2.9°

Focus

Auto, Manual, PTZ Trigger AF, One push

Min.Illumination

0.5Lux(Color), 0.1Lux(B/W)

Shutter Speed

1/1 - 1/10,000s

AGC

Auto/Manual

White Balance

Auto, Indoor, Outdoor, One push, Manual, Auto Track

AE Control

Auto, Manual, Shutter Priority, Iris Priority, Intelligence

S/N Ratio

Above 50dB

PTZ

Pan Range

 -170°  - +170°

Tilt Range

  -30°  - +90°

Pan Speed

  0.1°  - +120°/s

Tilt Speed

  0.1°  - +80°/s

Preset Number

256

OSD

Yes

Image Flip

Yes

Network

Max,Image Size

1920x1080

Frame Rate

HD:50Hz:50fps(1920x1080) 60Hz:60fps(1920x1080)

Video Compression

H.265,H.264

Audio Compression

AAC

Protocol

HTTP,RTSP,RTMP,RTP,TCP,UDP,ONVIF

Dual Stream

Support

Simultaneous Users

up to 10 users

Interface

HD Video Output Interface

HDMI, 3G-SDI

Audio

One Line In; One Line out

Ethernet

RJ45(NDI | HX),100M

Local Storage

TF card, up to 64GB

USB

USB2.0

Control Interface

RS-232IN/IR, RS-232OUT/RS-485

General

Control Protocol

VISCA and Support Daisy Chain, PELCO-D, PELCO-P

Address

0 - 63

Power Supply

DC12V

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +60°C

Dimension

243mm x 145mm x 163mm

Weight

1.2KG

Color

Grey
