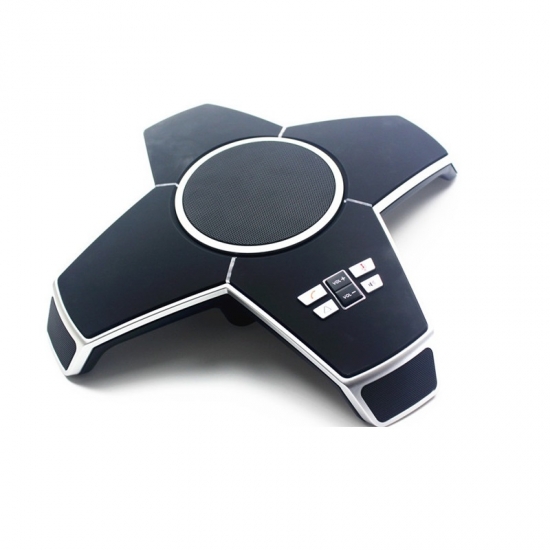

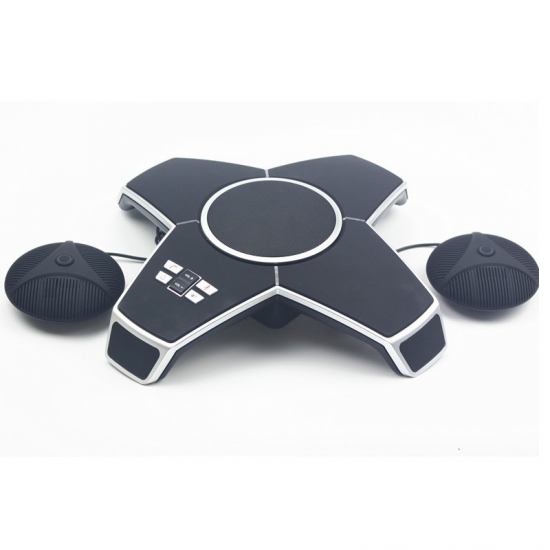

USB 2.0 Omni-directional microphone with 2 Expansion microphones

With USB-powered, WS-AM6-T captures clear audio in a full 360 degree that widely used in the meeting room. QQ, Skype and othe VoIP call supported. And the pickup range can up to 5M + 3M and 90 db volumn output. It is compatible with Windows, Vista and Mac systems through simple plug-and-play connectivity without needing to download any drivers.


  • item no.:

    WS-AM6-T
  • payment:

    T/T, L/C, West Union, Paypal, Cash
  • product origin:

    China
  • color:

    Black
  • shipping port:

    N/A
  • lead time:

    290
  • Description
  • Information

Feature



※ 5+3M Radios
※ 90 dB Speaker
※ High Sensitivity Omnidirectional
※ USB interface –PC
※ Auto Adjust echo cancellation
※ Auto Adjust human voice tracking



Function



※ Microphone acquisition distance of 8 meters, suitable for 40 square meters, 20 people less than the meeting room.
※ Support two-way expansion of the microphone, the collection distance of 8 meters, suitable for 20-60 square meters conference room, 15 people live meeting.
※ Support USB, is a video conferencing system, multimedia communication systems, UC unified communications platform, VPN platform voice matching. Support IN/OUT LINE analog audio signal input and output .
※ Through a 3.5mm connect the phone through the mobile network hands-free support external audio equipment such as mixer or external microphone system, local site amplification and enhance the effect of the microphone.
※ Speaker volume reached 90dB, 12 level speaker volume digital control Hands-free, mute, maintain, volume adjustment and other functions




Specificaton



Model No.

WS-AM6-T

Interface

USB2.0 Full speed interface,3.5mm audio input/output interface, DC power interface,RJ-11 interface

Max. Power

5W

Power Supply

DC Power Adapter Supply(12V/500mA)

Radio Interference

VCCI Level B

Operating Environment

Temp.:0°C - 40°C, Humidity: 20 - 85%(no frost)

Size

Product: 350mm x 350mm x 55mm(L x W x H) / 405mm x 350mm x 130mm(L x W x H)

Weight

Net: 1000g, Packing: 2160g

Computer Environment

Windows 10(64bit/32bit), Windows 8.1(64bit/32bit), Windows 8 (64bit/32bit), Windows 7(64bit/32bit), Vista SP1(32bit), Vista SP2(32bit), Windows 2000 SP4, Mac OS X 10.5(only equiped with Intel processor machine)

Accessories

USB cable(3m), Manual, Portable Bag

Audio Parameters

Microphone

High Sensitivity onmidirectional Microphone + 2 expansion microphone

Speaker

1(mono cycle)

Volume

Max 90dB

Frequency Bandwidth

300 - 20,000Hz

Signal Processing

Adaptive echo canceller, noise reduction, 3 Alternative Mic Auto Adjustment
