Enabling a Safer Society and Smarter Living

USB Wireless Speaker & Microphone

WINSAFE AM10 Series USB Bluetooth/Wireless Speaker & Microphone are good used for the meeting conferencing, voice pick up range to 5m, 2 external microphone optional, the voice pick up can be to 8m. Full-duplex bluetooth speakerphone with DSP, everyone can hear and haard in sound that's crisp and clear. It can be good used on the small or middle meeting room.
  • item no.:

    WS-AM10/10B/10BW
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • color:

    Black
  • shipping port:

    Shenzhen
  • lead time:

    5
  • Description
  • Information
  • Downloads

Feature


* 4 Built-in high-sensitive microphones 360 degree audio pick up over 5M

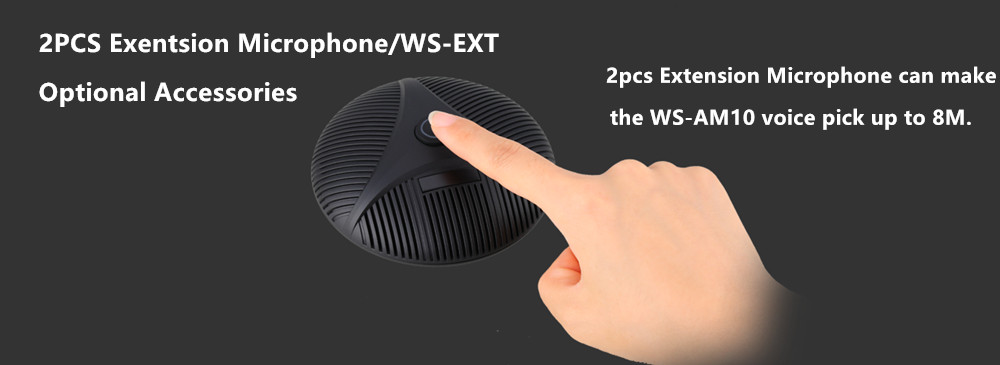

* 2 external micophones optional for connection makes the sound-pick up diameter up to 8M|
* Intutive plug and play connectivity that connect in seconds to laptop, smart phone and tablet via USB(WS-AM10), Bluetooth(WS-AM10B), 2.4G wireless receiver(WS-AM10BW) or line in/out
* 22KHz full duplex echo cancellation & noise reduction removes ambient room noise
* Advanced DSP technology delivers remarkably rich, crystal-clear audio
* Immersive sound for calls and music. Experience Omni-directional microphone and HD voice.Ideal for voice, music and multimedia
* Exclusive portable desigan so you can be mobile with a lightweight design, protective travel puch and battery life for 4 hours talk time
* Suitable for meeting rooms within 60 square meters. Support on-site meetings of less than 20 people
* Support 3.5mm audio playback output, can be external headphones or speakers
* Works with most UC, video conferencing and cloud communications apps such as ZOOM, Vidyo, Webex, Skype for business, Google hangout and so on.


Model No. Optional



Optional




Application






Voice Technical Parameters

Acoustic Echo cancellation(AEC)>65dB
Echo length cancellation
500ms
Bidirectional noise compression(NC): <25dB
Automatic Direction finding Technology of Intelligent microphone(EMI)
Automatic gain control(AGC)

Audio Parameters

Microphone frequency response: 100Hz - 22KHz
Speaker frequency response: 100Hz - 22KHz
Speaker volume: 95dB at the most
Microphone sound-pickup diameter: 5m, 360 degrees full range(2 external microphones optional for connection  makes the sound-pickup diameter up to 8m)

Interface

USB interface, RJ45 EX1, Ex2, 1/O Line in/out, DIP6 interface(WS-AM10)
USB interface, RJ45 EX1, Ex2,I/O line in/out, DIP5 interface(WS-AM10B)
USB interface, RJ45 Ex1, Ex2, I/O line in/out, DIP6 interface(WS-AM10BW)

Power Supply

USB power supply(5V/500m)

Computer Environment

Windows, Mac OSX, Android

Operating Environment

Operational environment: 0 -40 degrees C, Working humidity: 20 - 85%(no frost)

Size

180mm x 180mm x 42mm/355mm x 265mm x 120mm(before/after packaging)

Weight

600g/1200g(Net/Gross weight)

Accessory

USB cable(5m),5V Power adapter, 3.5mm audio cable(WS-AM10)
USB Cable(5m), 5V Power adapter, 3.5mm audio cable(WS-AM10B)
USB cable(5m), 5V power adapter, 2.4+3.5mm audio cable
WS-AM10BW)

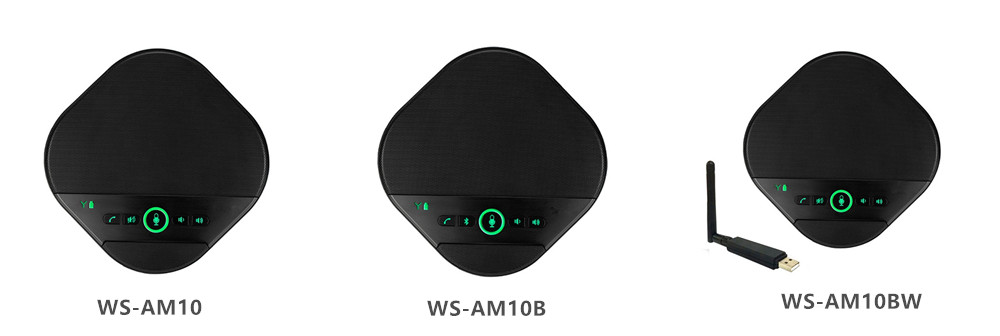

Order No.

Product Description

WS-AM10

USB Speaker & Micrphone

WS-AM10B

USB Speaker & Microphone with Bluetooth

WS-AM10BW

USB Wireless Speaker & Microphone
