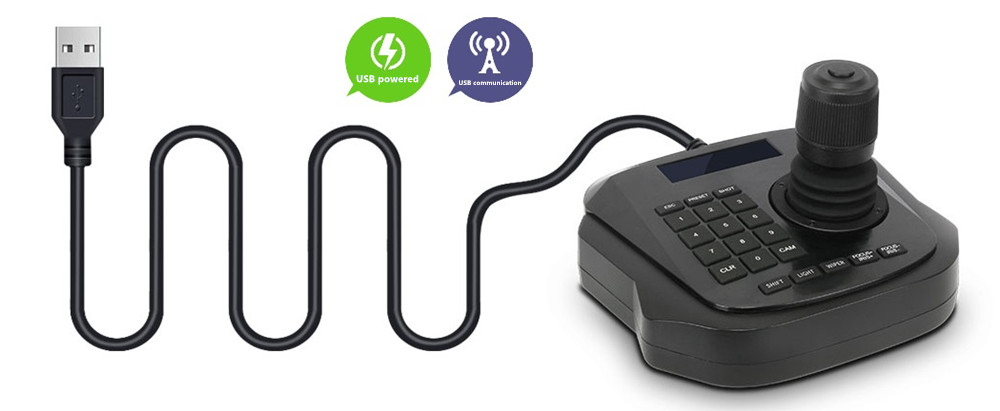

USB Keyboard PTZ Controller

USB Keyboard Controller/CKB-15U can be connected to the client, platform software, NVR or DVR, etc., to realize the control of the platform or front-end equipment. It can be widely used in various fields such as finance, public security, military, telecommunications, transportation, electricity, education, water conservancy, etc.
  • item no.:

    CKB-15U
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • color:

    Black
  • shipping port:

    Shenzhen
  • lead time:

    5
  • Description
  • Information
  • Downloads

Product Introduction


The control keyboard/CKB-15IPU is an indispensable back-end control device for the integrated monitoring system center. It is specially designed to solve the problem that the front-end dome and pan/tilt can not be conveniently controlled by DVR and other devices. equipment.


Feature


※ USB interface, USB power supply, communication
※ Liquid crystal LCD display, indicating the current various operations
※ Follow the USB HID protocol, compatible with third-party platform software
※ Chinese and English language selection
※ Button tone switch function





Model No.

CKB-15U

Compatible system

Window XP/7/8/8.1/10, Linux, MAC OS etc.

Interface Type

USB2.0, DirectX

Control

Joystick control

Power Supply

USB power supply, support HID protocol

Joystick function

Four-dimensional (control: up, down, left, right) joystick buttons and zoom function

Interface method

Lead way

Display

LCD

Beep

Button sound prompt on/off

Power

0.6W Max.

Storage Temperature

 -20°C - 70°C / 14°F - 140°F

Working Temperature

-0°C - 50°C

Storage Humidity

Below 90%RH(frostless)

Packing Dimension

228 x 184 x 133(mm)

Weight

0.5kg

Model No. Description Download
CKB-15U CKB-15U User's Manual Download
