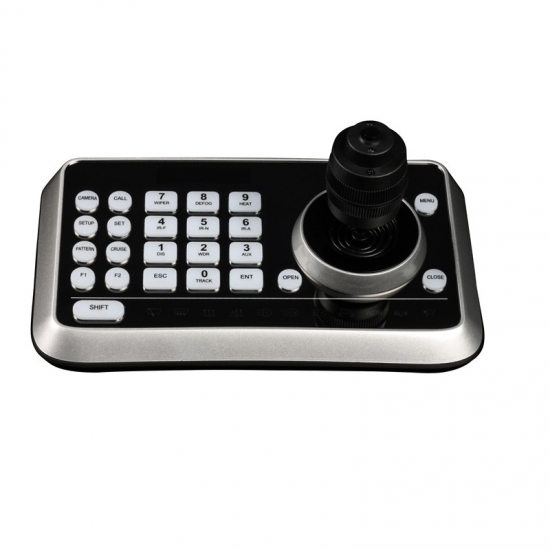

Mini Keyboard PTZ Camera Controller

Mini Keyboard PTZ Camera Controller
  • item no.:

    CKB02
  • payment:

    T/T
  • product origin:

    China
  • color:

    Picture Color
  • shipping port:

    shenzhen
  • lead time:

    5
  • Description
  • Information

Feature

※ 4D joystick for pan/tilt/zoom/focus control,ergonomic design and excellent finishing
※ High brightness OLED display
※ Auto backlight keys
※ Shortcut keys customization
※ Sleep function
※ Batch program cameras in the systems
※ Multi-level password protection
※ Multi-baud rate and protocols
※ 256 address support PELCO D/P,VISCA protocols
※ Compact design with portable features


Demsions


Specification


Model No.

CKB-02

Comm.Interface

RS-232,RS485

Protocol

Pelco-D,Pelco-P,VISCA

Baud Rate

2400bps,4800bps,9600bps,19200bps,38400bps

Address

0 255

Joystick

4-axis(Left/Right,Up/Down, Zoom in/Zoom out, Focus Near/Focus Far)

Display

OLED

Power Consumption

DC12V(±10%)/USB

Humidity

≤90%(no condensation)

Power

<2W

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +50°C

Dimension

200mm(L) x 120mm(W) x 103mm(H)

Weight

0.5KG
