Enabling a Safer Society and Smarter Living

IP PTZ Speed Dome Camera Network 3D Keyboard Controller

CKB10IP Keyboard Controller can be used to someplace with install netwwork dome camera, such as: schools, hospitals, hotels, residential areas, factories, workshops etc. , to achieve a unified LAN onvif control device.
  • item no.:

    CKB-10IP
  • Description
  • Information
  • Downloads

Product Overview



CKB10IP network keyboard convered with brushed aluminum, high grade, the unique surace hardening can prevent scratches. Industrial grade LCD modules which are used have better showing effect, covered with a layer of rigid plexiglass make the letter clear. CKB10-IP support Onvif pact, good Compatibility, high Scalability, built-in web server allow configuration interface concise, easy to use, and easy to control the IP camera.



Features



※ Support many IP camera coding protocol from the main manufacturer in the market

※ Suport operation PTZ preset position, cruise and trajectory

※ Support IE browser configuration device parameters

※ Support ONVF protocol 2.4 version

※ Support for offline serach and add equipment

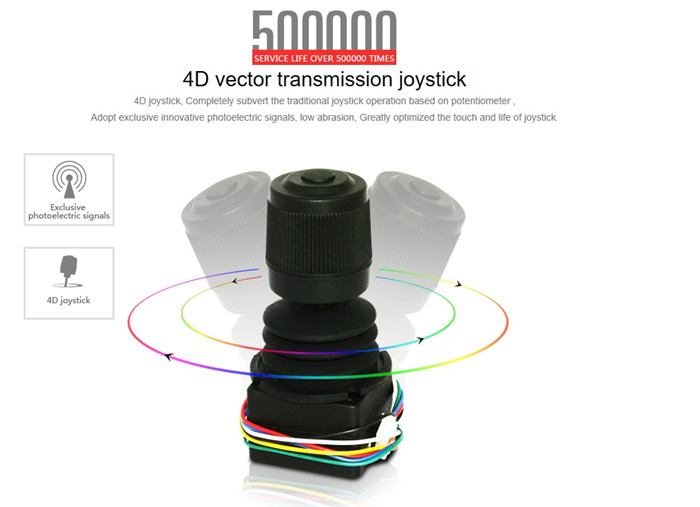

※ Imported 4D vector transmission joystick


Application



CKB10IP Keyboard can be used to someplace with install network dome camera, such as: schools, hospitals, hotels,residential areas,factories,workshops,etc., to achieve a unified LAN onvif control device.

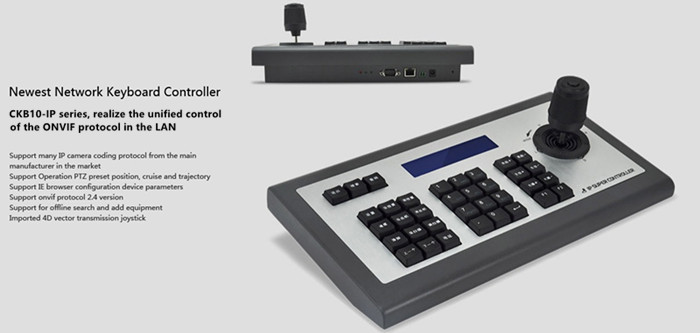

Newest Network Keyboard Controller

CKB10-IP series, realize the unified control of the ONVIF protocol in the LAN





Compatible many IP camera coding protocol from the main manufacturer in the market





4D Vector transmissionjoystick









Technical Specification



Model No.

CKB-10-IP

Power Supply

DC12V-2A/inside + outside

RS485

3.81 terminal, TA, TB

RS232

DB9 mail head

Ethernet

IEEE 802.11b/g/n

Support Protocol

Onvif

Browser

IE, Firefox, Chrome, Safari and so on

Working Temperature

0°C - 55°C / 14°F - 131°F

Working Humidity

20% - 80% frostless

Storage Temperature

 -10°C - 60°C / 14°F - 131°F

Storage Humidity

0 - 90% frostless

Certification

CE, FCC, RoHs

Warranty Time

One Year
