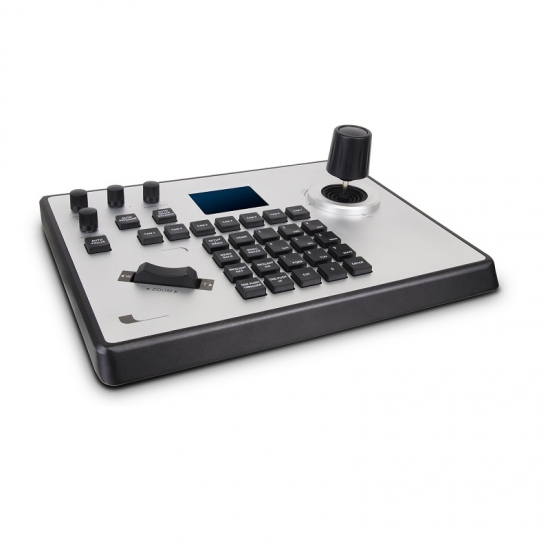

IP PTZ Controller

CKB-U2IP IP keyboard controller controls PTZ camera in network and analog modes, accepting various protocols such as Visca, Pelco D/P ect. With rich shortcut buttons for common camera setting, it makes camera control super easy and fast.
  • item no.:

    CKB-U2IP
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • lead time:

    5
  • Description
  • Information

Strong Control Aility


※ Camera control in IP and analog modes
※ Full VISCA, ONVIF, PELCO-D/P protocols
※ Support IE web setting, built-in web server makes the configuration interface simple and clear
※ Support POE


Easy Operation


※ 7 Buttons to swith 7 cameras

※ 4D joystick control
※ Rocker witch controls zoom speed
※  Shortcut keys/knobs for common camera settings

Simple and Beautiful Apperance


※ TFT CD screen display
※  Elegant design

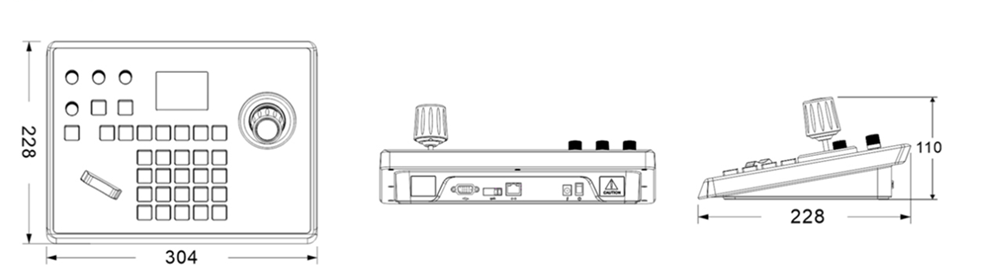

Dimensions




Model No.

CKB-U2IP

White Balance

Button, Auto, Indoor, Outdoor, One Push, Manual

Exposure

Button, Auto, Manual, Shutter Priority, Iris Priority, Bright Priority

Shortcut Button

Auto Exposure, Auto White Balance, Auto Focus,Back Light, One Push, OSD

Shortcut Knob

R/B Gain, Iris, Pan/Tilt Speed(1-8 Steps), Focus(Near Far)

Protocol

Full VISCA, PELCO-D/PONVIF

Output

RS422, RS232, RS485, RJ45

Joystick

4D joystick

Screen

TFT LCD 320*240

Power Consumption

5W

Power

DC12V-2A

Work Temperature

 -10°C - 55°C / 14°F - 131°F

Work Humidity

20% - 80% non-condension

Size

304mm x 228mm x 110mm

Weight

1630g

Outer box size and specifications

553*460*350mm / 6 sets

weight

1.9KG
