Maritime Keyboard Controller

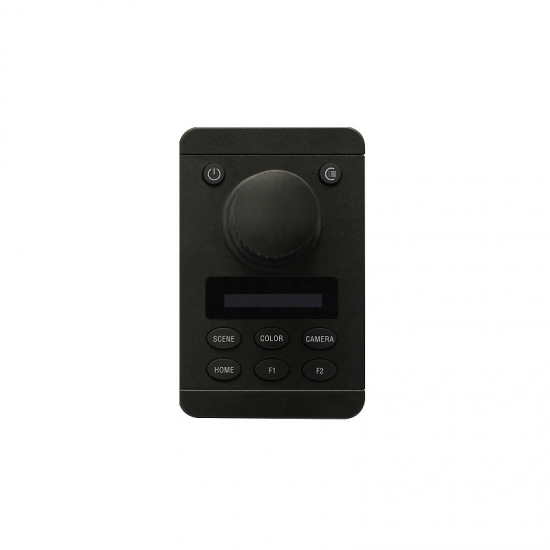

MKB Maritime Keyboard Controller
  • item no.:

    MKB-01
  • payment:

    T/T
  • product origin:

    China
  • color:

    Black
  • shipping port:

    Shenzhen
  • lead time:

    3
  • Description
  • Information

Feature

※ IP66 Waterproof
※ Control basic features of PATC series thermal cameras
※ 3 axis joystick, OLED display
※ Two colors backlights
※ Support to customize  keys
※ Control through both RS485 and Ethernet

Specification


Model No.

MKB-01

Comm.Interface

RS485/Ethernet

Protocol

Pelco-D,Pelco-P

Baud Rate

2400bps,4800bps,9600bps,19200bps

Address

0 ~255

Joystick

3-axis, speed adjustable

Display

OLED

Power Consumption

 <1.6W

Humidity

≤90%(no condensation)

Power

<2W

Working Temp

 0°C - +40°C

Storage Temp

 -20°C - +50°C

Dimension

141mm(L) x 90mm(W) x 117mm(H)

Weight

0.8KG
