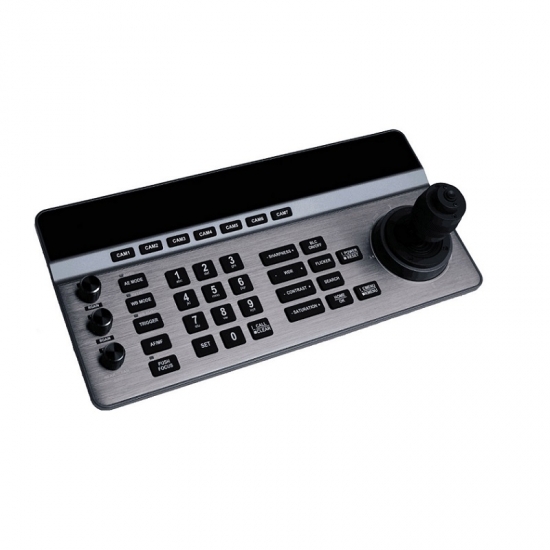

NDI IP PTZ Keyboard Controller

CKB25 Series Control Keyboard are full-featured, easy operation control keyboard, support both network control and analog control, can be widely used for video conferencing, live streaming, broadcasting, video surveillance etc.
  • item no.:

    CKB-25IP(NDI)
  • payment:

    T/T, Paypal, West Union
  • product origin:

    China
  • shipping port:

    Shenzhen
  • lead time:

    5
  • Description
  • Information
  • Downloads

Feature


※ Support multiple control ports: LAN, RS232, RS422 and RS485
※ Support multiple control protocols: Visca Serial, PELCO-P, PELCO-D, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF, NDI etc.
※ Multiple cameras can be controlled via one keyboard, and one camera can be controlled via multiple keyboard as well
※ Adapts four-dimensional joystick to enable the control of the video camera PTZ movement smoothly and flexibly
※ With 3.12 inch OLED screen to display all setting information
※ Support to set different levels of operation premissions via OSD menu
※ Support buttons keys backlight, enable users to choose automatic backlight in low light or dard environment
※ Support to set, run or clear presets
※ Support daisy chain function
※ Support camera OSD menu setting
※ Support standard POE(Power over ethernet)
※ Support up to 7 cameras shortcut control buttons, to make camera conrol convenient and fast, improves switching speed between multiple cameras
※ Support 10M, 100M, 1000M adaptive network RJ45 connection

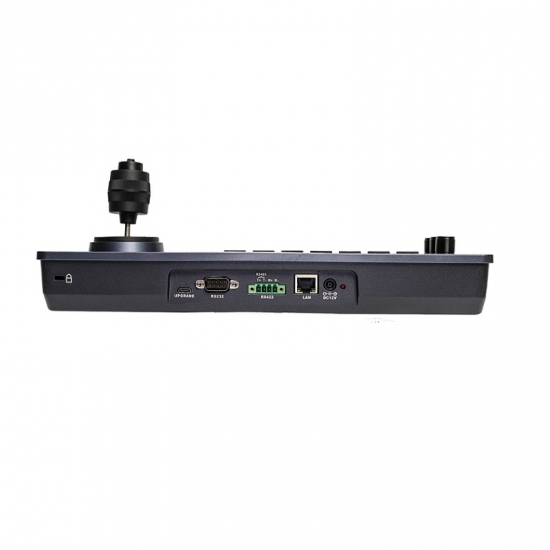

Input/Output Interface




Dimension(unit:mm)




Model No.

CKB-25IP

CKB-25IP(N)(Support NDI)

Control Ports

RJ45, RS232, RS422, RS485

RJ45

Ethernet port, POE(IEEE802.3af)

RS232

DB9 Male head

RS422

3.81 Spacing terminal, T+, T-, R+, R-

RS485

3.81 Spacing terminal, T+,T-

Control Protocols

VISCA Serial, PELCO P, PELCO D, VISCA over IP, VISCA TCP, VISCA UDP, ONVIF, NDI

Upgrade Port

Type-C

LCD Screen

3.12 inch OLED sreen, blue light, 256 x 64 pixel

Working Power

12V, 1A

Working Temperature

 - 10°C - 50°C

Working Humidity

20% - 80%

Storage Temperature

 -20° - 60°C

Storage Humidity

0 - 90%

Dimension

320.5mm x 156.5mm x 118mm

Net Weight

1.05kg

Model No. Description Download
CKB-25 CKB25 User's Manual Download
