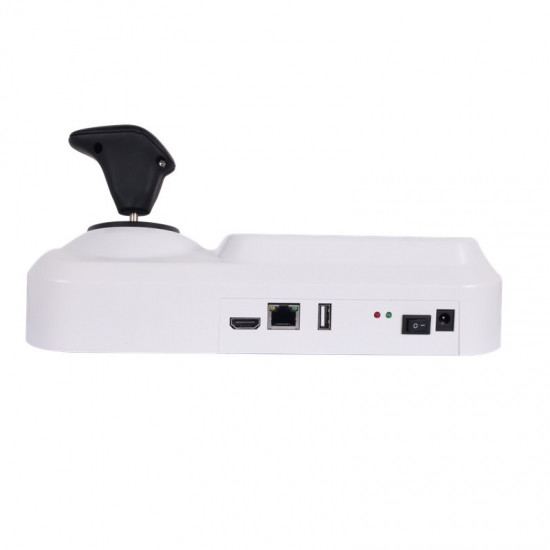

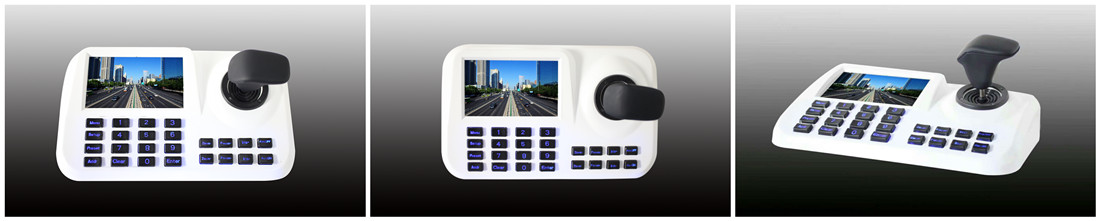

IP Network ONVIF 2.4 Speed Dome Camera Joystick Keyboard Controller with 5" LED Display

IP Network ONVIF 2.4 Speed Dome Camera Joystick Keyboard Controller with 5" LED Display can be used to someplace which install network dome camera, such as: schools, hospitals, hotels, residential areas, factories, workshops, etc., to achieve a unified LAN onvif control device
  • item no.:

    CKB-21IP
  • Description
  • Information

Features


※ ONVIF 2.4 compatible
※ 5" colorful LED display
※ Plug and play, autoatically add and istribute IP address
※ 3D jostick
※ Support USB and HDMI output


Application


It can be used to someplace which install network dome camera, such as: schools, hospitals, hotels, residential areas, factories, workshops, etc., to achieve a unified LAN onvif control device




Technical Specification


Model No.

CKB-21IP

Product

Network keyboard

ONVIF

2.4

Control way

Network

Power Supply

DC12V/2000MA

Operating Humidity

Below 90% Non Condensing

Inteface

1xRJ45, 2xRS485(RESERVED), 1xDC12V power, 1xHDMI, 1xUSB

Baud Rate

9600bps

Joystick

Vector variable speed joystick

Display screen

5" LED

Communication Distance

Depend on network cable

Control Camera Quantity

No limite(single screen display)

OSD Menu

English

Operating Temperature

 -20°C - +55°C

Product Size

260mm x 160mm x 48mm
